Marantz PM16 amp i Luxman A383 amp

Tekst oglasa
Ne menjam! Cene su za preuzimanje u Srbiji

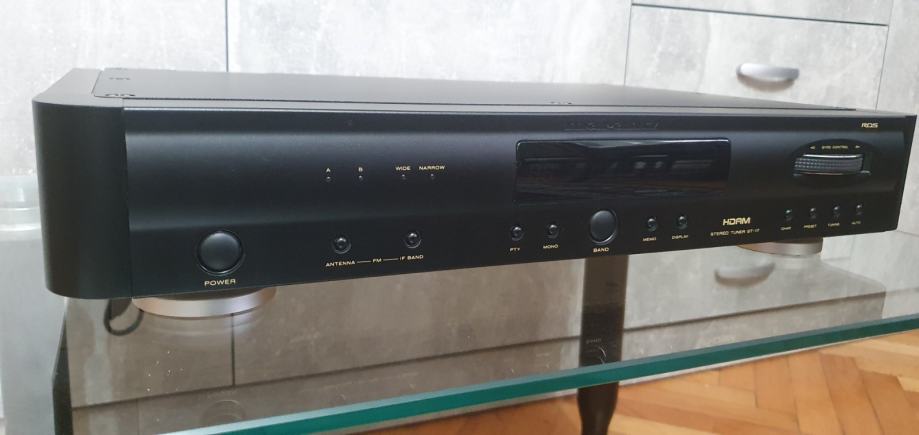

Marantz PM 16 crna boja cena 599evra, Moze i sa Marantz ST17 tjunerom crna boja 200evra
Luxman A383 120w/8 sampanj boja sa zamenskim daljincem 550 evra
Moze i sa tjunerom T341L 65e, CD D351 65e, Dek K351 49e, ili dupli dek K331W 100evra iz iste serije, sampanj boja (cd i dek K351 kozmeticki nisu perfektni zato i nize cene). Pojacalo pali i gasi sve mini cincevima

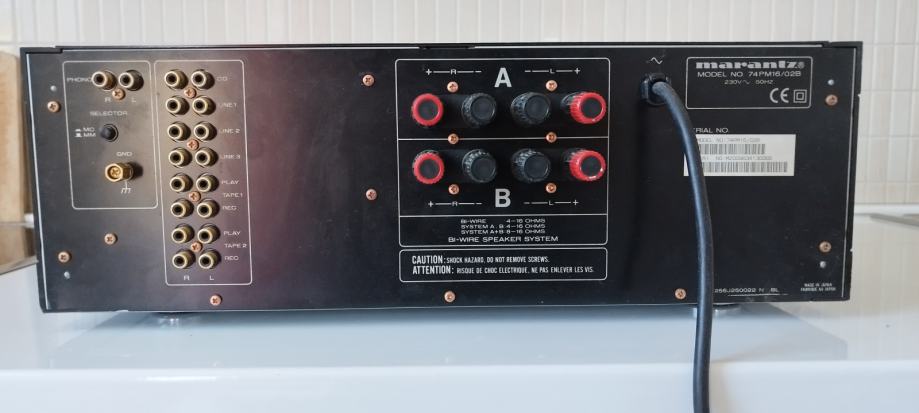

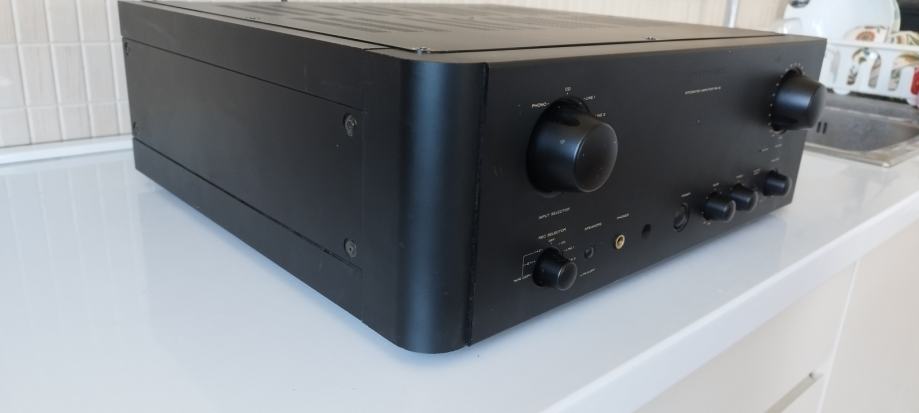

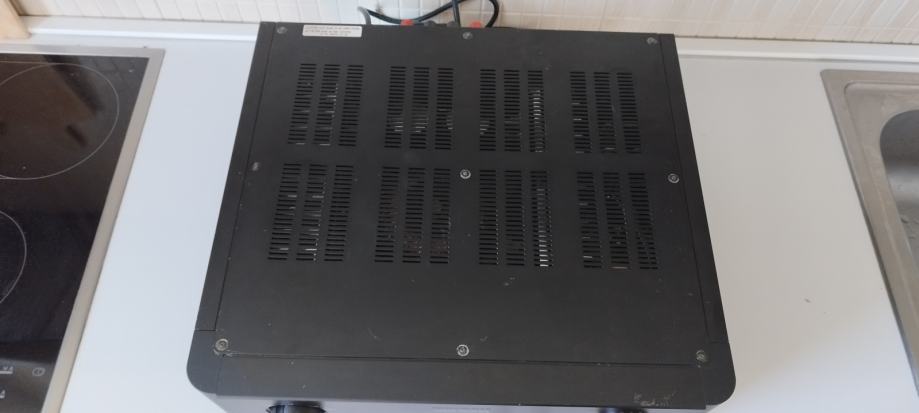

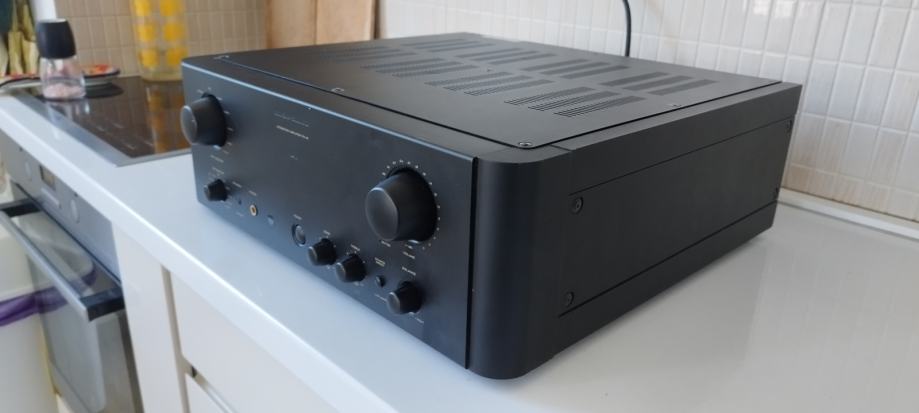

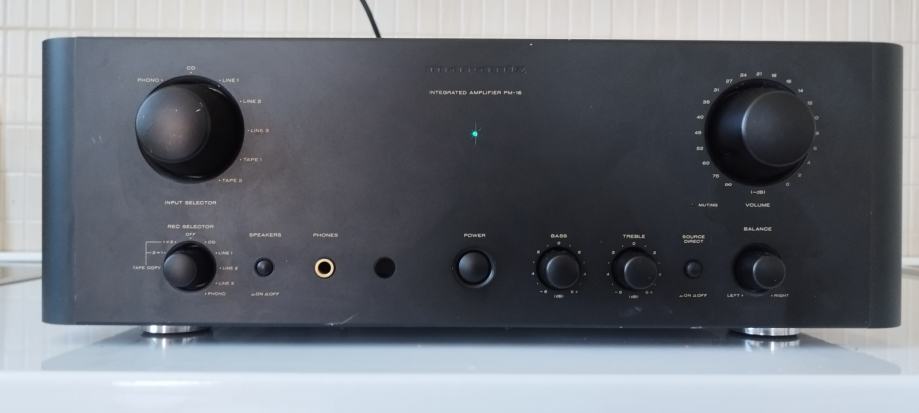

1. Marantz PM 16, Top japansko pojacalo, 20Kg

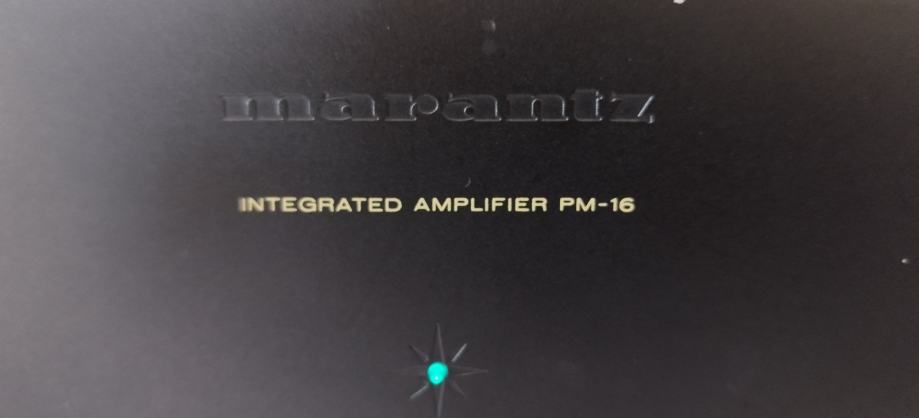

Marantz PM-16

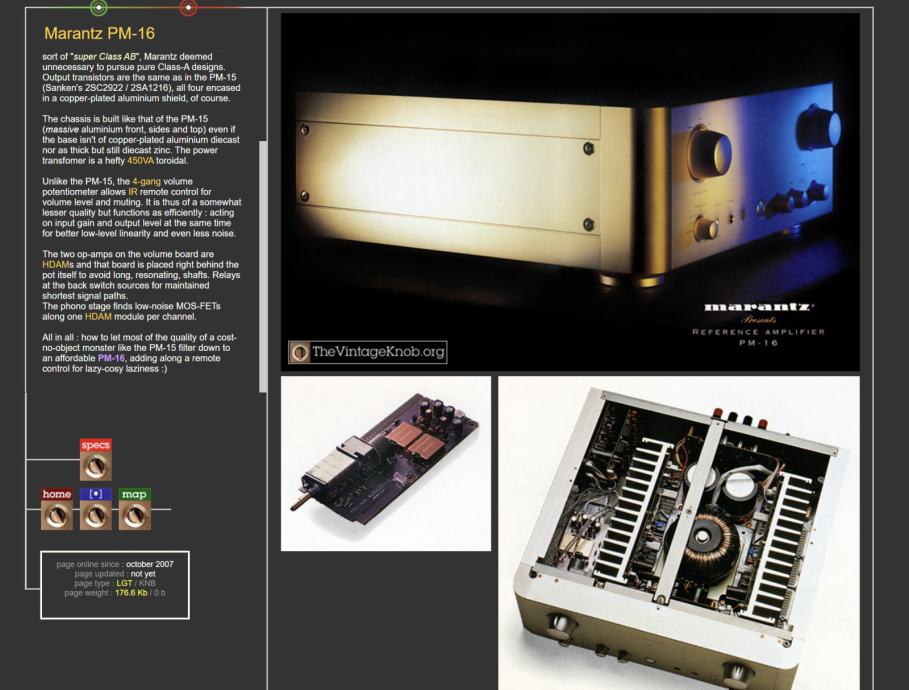

Affordable sibling of the PM-15, the PM-16 uses the same basic structure and technical elements, only on an affordable scale.

Basis of all Marantz amplifiers since then, the PM-16 is centered around multiple current feedback loops and 40MHz fT LAPT emitter power transistors. Three CCNE circuits are present for cleaner power supply.

Given the results of both PM-15 and PM-16, a sort of "super Class AB", Marantz deemed unnecessary to pursue pure Class-A designs.
Output transistors are the same as in the PM-15 (Sanken's 2SC2922 / 2SA1216), all four encased in a copper-plated aluminium shield, of course.

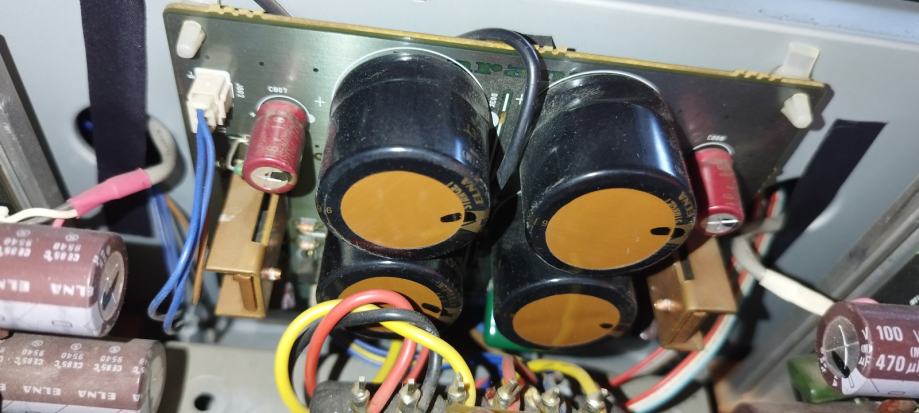

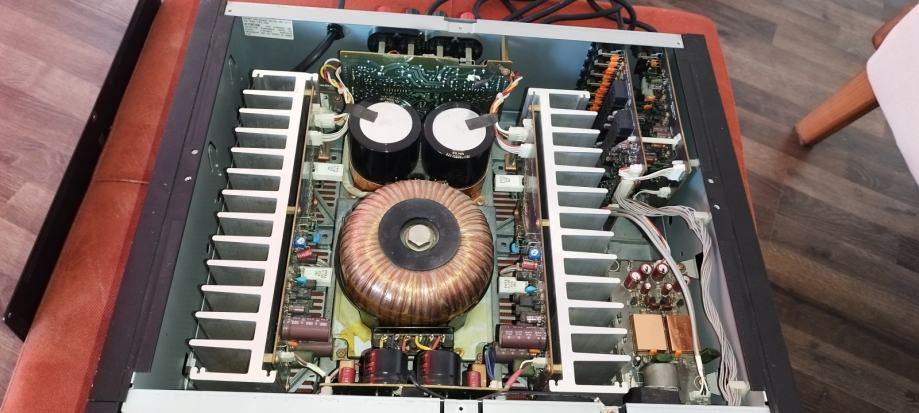

The chassis is built like that of the PM-15 (massive aluminium front, sides and top) even if the base isn't of copper-plated aluminium diecast nor as thick but still diecast zinc. The power transfomer is a hefty 450VA toroidal.

Unlike the PM-15, the 4-gang volume potentiometer allows IR remote control for volume level and muting. It is thus of a somewhat lesser quality but functions as efficiently : acting on input gain and output level at the same time for better low-level linearity and even less noise.

The two op-amps on the volume board are HDAMs and that board is placed right behind the pot itself to avoid long, resonating, shafts. Relays at the back switch sources for maintained shortest signal paths.
The phono stage finds low-noise MOS-FETs along one HDAM module per channel.

All in all : how to let most of the quality of a cost-no-object monster like the PM-15 filter down to an affordable PM-16, adding along a remote control for lazy-cosy laziness : )

Specifications
Power output: 90 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 70kHz

Total harmonic distortion: 0.008%

Damping factor: 160

Input sensitivity: 0.2mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 76dB (MC), 90dB (MM), 111dB (line)

Dimensions: 458 x 167 x 474mm

Weight: 20kg

Accessories: RMC-16PM remote control

Year: 1996

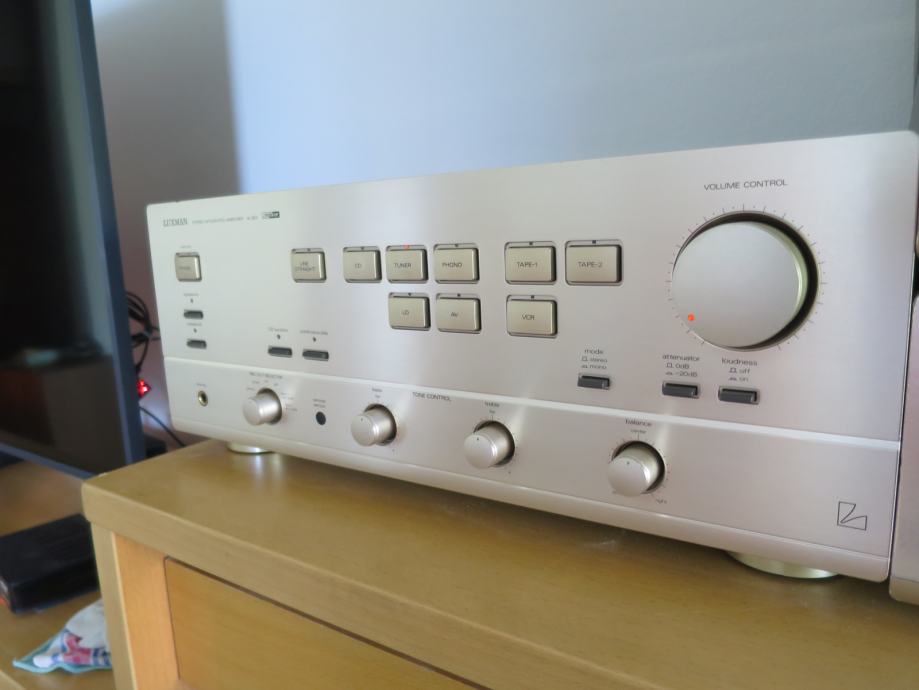

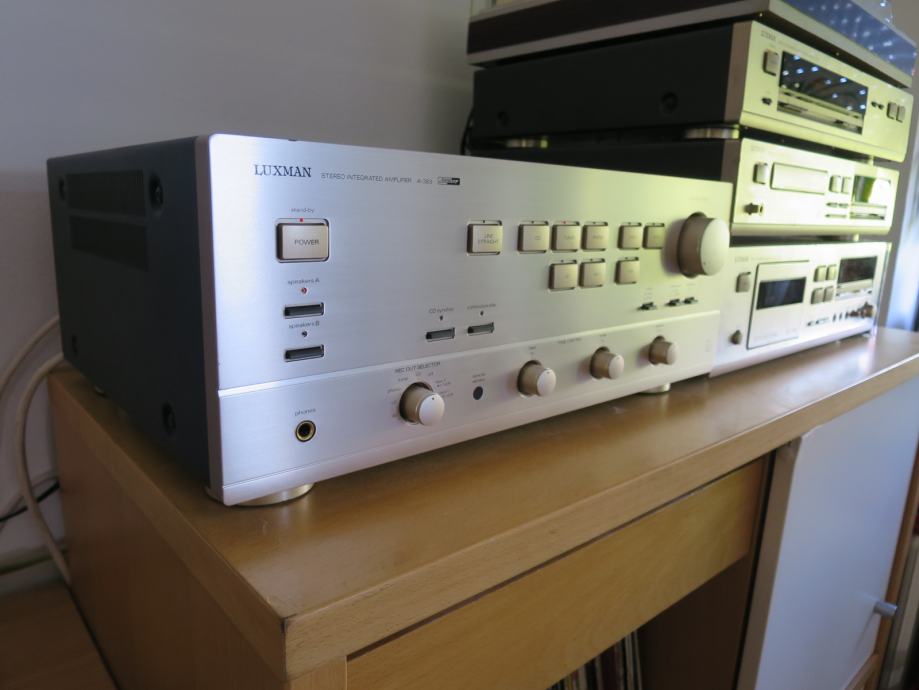

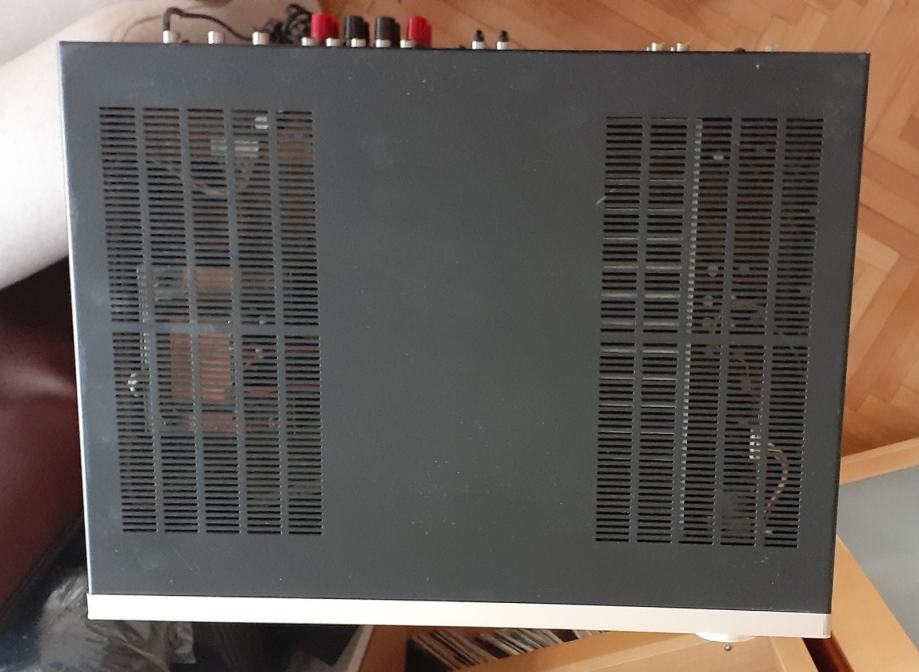

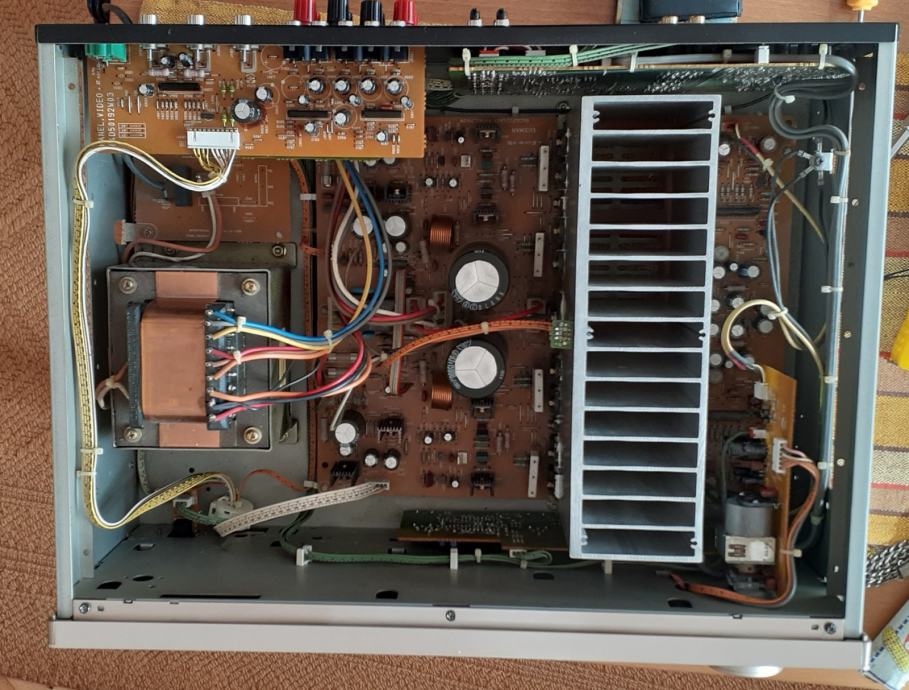

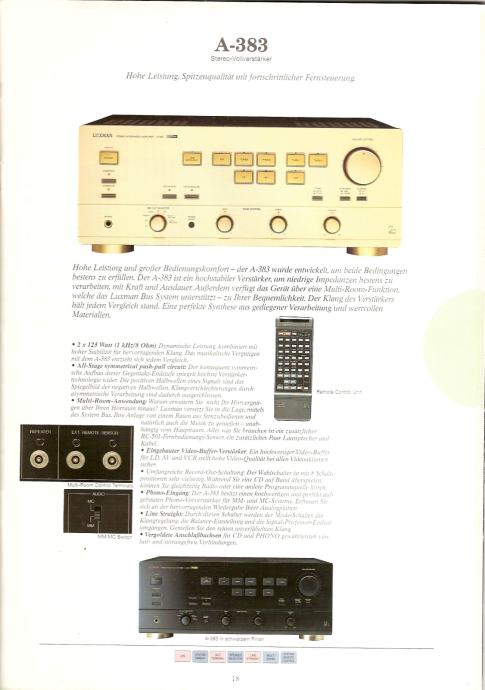

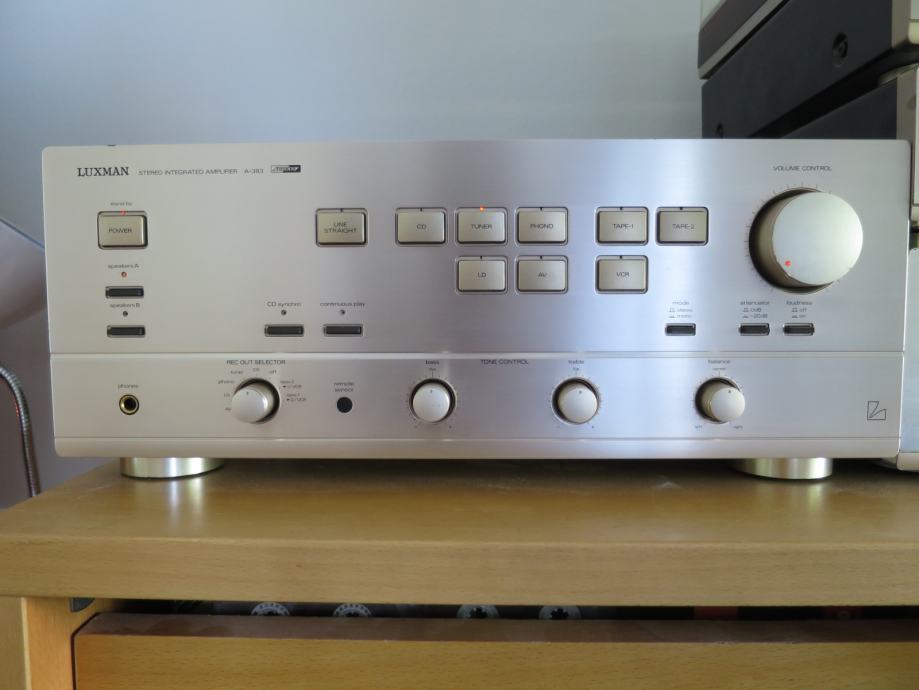

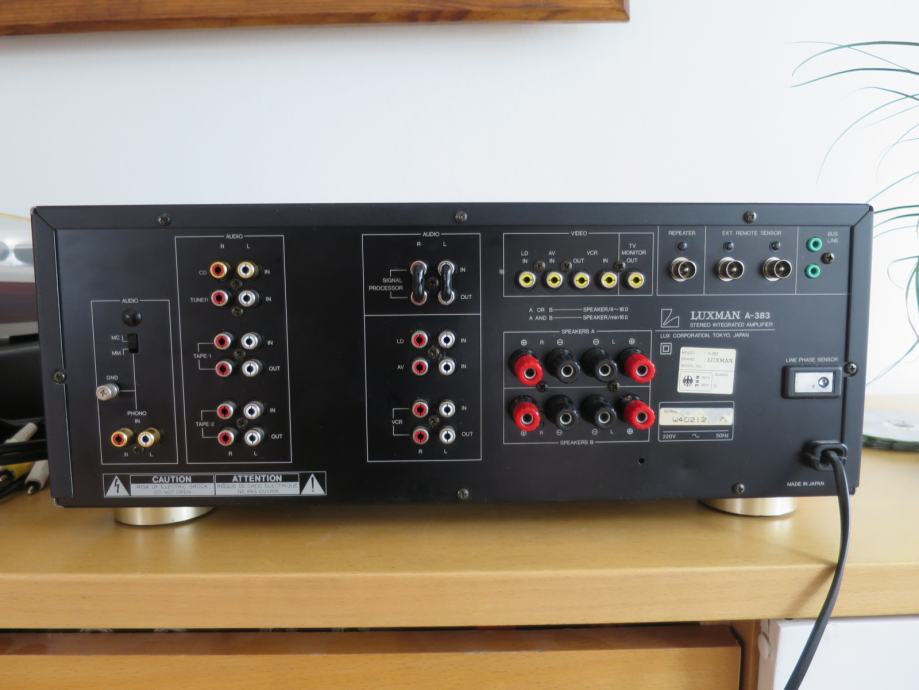

2. Luxman A383, 125W/8 ili 180W/4, 14Kg, sa zamenskim daljincem

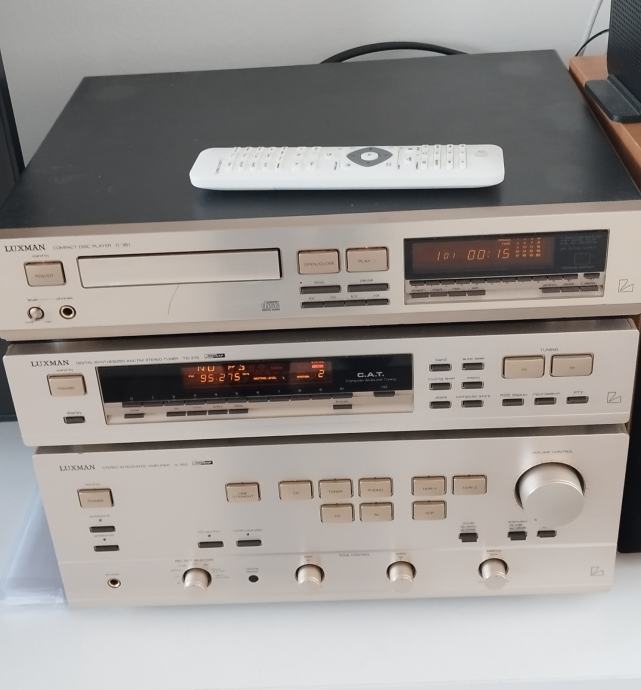

Moze i sa tjuner T341L 65e, CD D351 75e, Dek K351 50e, ista serija, sampanj boja.

Pojacalo pali i gasi sve preko BUS konekcije
