Karan Acoustics Master Collection POWERb mono
- Cijena
- 65.000 €
Šifra oglasa: 42216222
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Vrbik
- Stanje
- novo
Opis oglasa
Technical specifications:
Inputs: 1 balanced (XLR) and 1 unbalanced (RCA)
Input impedance: 30 kOhm (balanced/unbalanced)
Input sensitivity: 2.0 V/RMS (for max output)
Gain: +36 dB
XLR pin layout: PIN1-ground,PIN2-positive signal,PIN3-negative signal
(when use RCA input you need to insert XLR shorting plug!)
Power output: 1.200 / 2.100 / 3.600 W at 8/4/2ohm
(peak power output: 1.500W at 8ohm)
Frequency response: 20 Hz to 20 kHz, +/-0 dB; (DC to 300kHz, -3 dB)
Distortion: THD 0.03%
IMD 0.03%
Speed: Rise and Settling time < 450 ns
Slew rate 1.500 V/us (Amplification stages)
Signal to noise ratio: >120dB (unweighted)

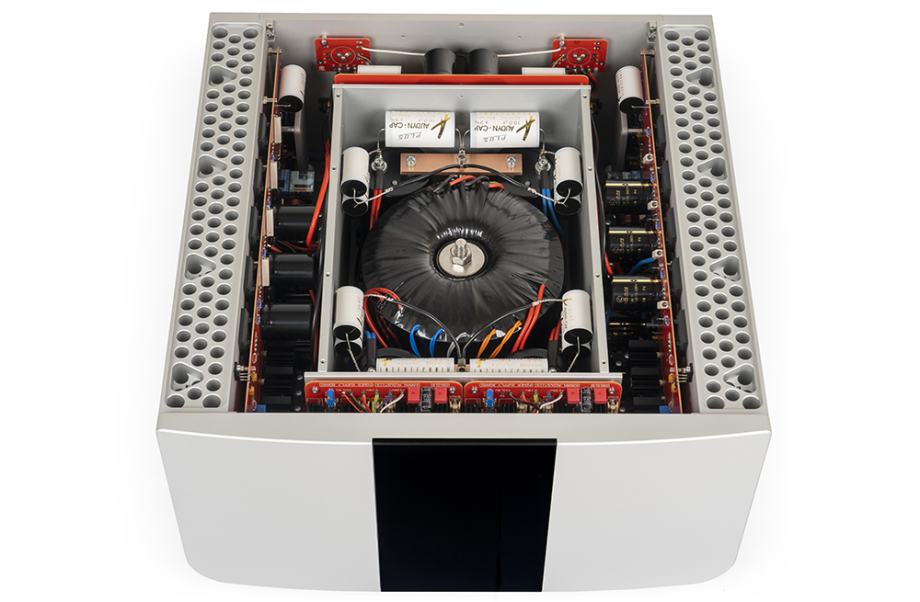

Power supply: 2pcs of 2.100VA low noise toroidal transformers,
180.000uF custom made capacitors bank
AC voltage: 115V or 230V (nominal line voltage)
AC voltage range: +/- 10% (from nominal line voltage)
Net dimensions: 504 x 292 x 521mm (whd).
Net weight: 81 kg.
Package dimensions: 720 x 410 x 738mm (whd).
Package weight: 103 kg. (each)
Inputs: 1 balanced (XLR) and 1 unbalanced (RCA)
Input impedance: 30 kOhm (balanced/unbalanced)
Input sensitivity: 2.0 V/RMS (for max output)
Gain: +36 dB
XLR pin layout: PIN1-ground,PIN2-positive signal,PIN3-negative signal
(when use RCA input you need to insert XLR shorting plug!)
Power output: 1.200 / 2.100 / 3.600 W at 8/4/2ohm
(peak power output: 1.500W at 8ohm)
Frequency response: 20 Hz to 20 kHz, +/-0 dB; (DC to 300kHz, -3 dB)
Distortion: THD 0.03%
IMD 0.03%
Speed: Rise and Settling time < 450 ns
Slew rate 1.500 V/us (Amplification stages)
Signal to noise ratio: >120dB (unweighted)
Power supply: 2pcs of 2.100VA low noise toroidal transformers,
180.000uF custom made capacitors bank
AC voltage: 115V or 230V (nominal line voltage)
AC voltage range: +/- 10% (from nominal line voltage)
Net dimensions: 504 x 292 x 521mm (whd).
Net weight: 81 kg.
Package dimensions: 720 x 410 x 738mm (whd).
Package weight: 103 kg. (each)
