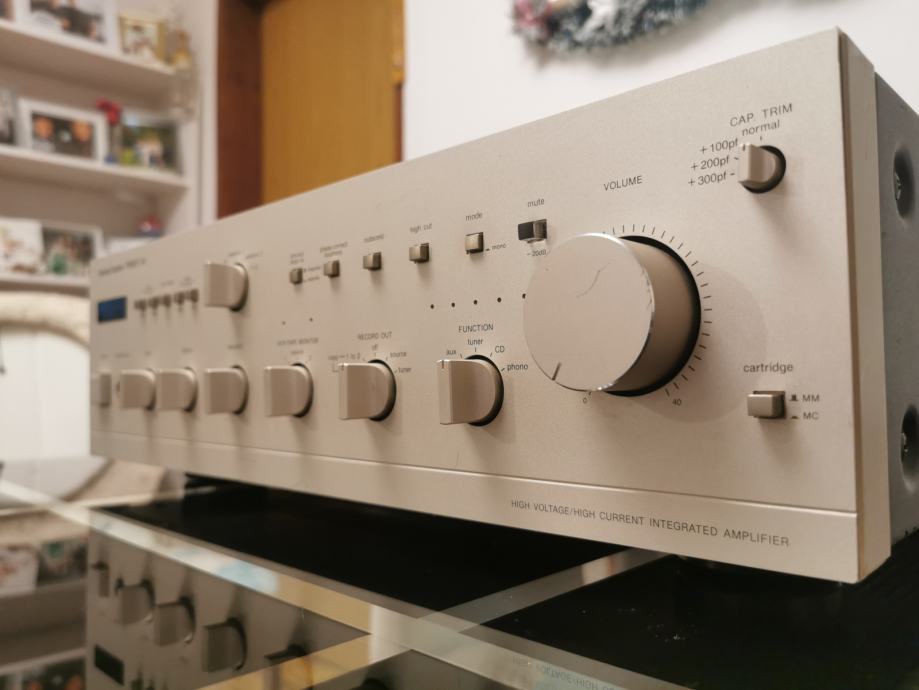

Harman Kardon PM665 Vxi

očuvan ispravan
2x150 watt 8 ohm
proba i preuzimanje Krško
dogovor oko dostave Zaprešič Samobor Jankomir-King Cross
cijena sa dostavom 430€

mobi: 00386 40 528 536

General

Manufacturer: Harman/kardon
Model: PM665 Vxi
Years of manufacture: 1988 - early 90s

Color: black, champagne
Type: analog
Remote control: -
Power consumption: max. 600W
Dimensions: 443 x 134 x 398 mm
Weight: 16,3 kg
Original price approx.: 1800 DM

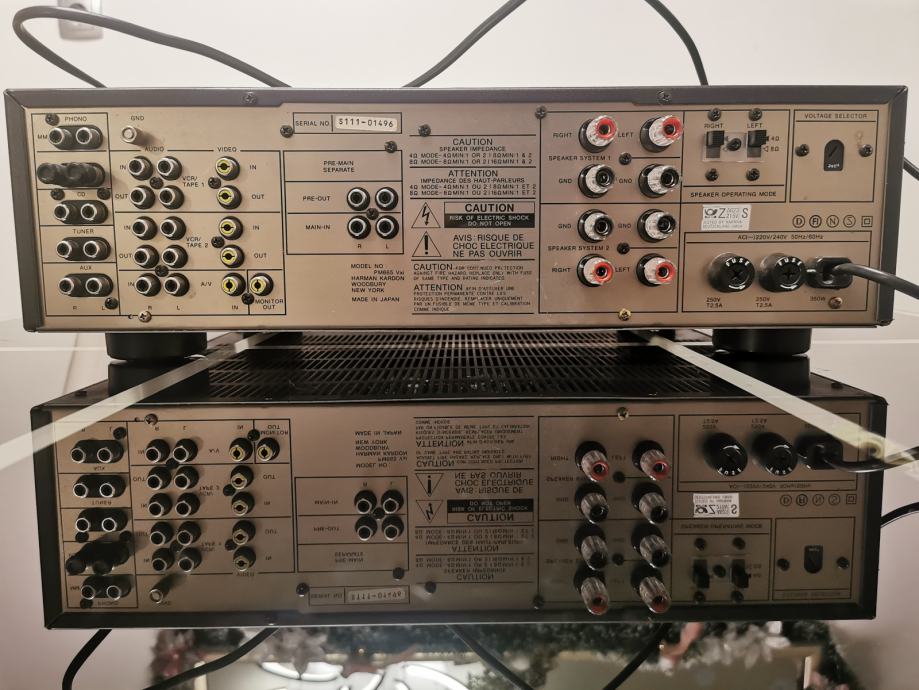

Connections

Number of inputs:
Phono MM: 2.2 mV / 47 kOhm, 125-425 pF.

phono MC: 120 uV / 56 Ohm Video, CD: 135 mV / 22 kOhm Main In: 0.8 V / 22 kOhm Tape1 In Tape2 In

Tuner
AUX
A/V
Number of outputs:
Tape1 Out
Tape2 Out

Specifications

Sine Continuous Power (FTC) [20Hz - 20kHz, 2 channel operation]
8 ohms: 150 W per channel @ < 0.08% THD into 8 ohms.
4 Ohm: 150 W per channel @ < 0.08% THD into 4 Ohm
Dynamic power
High Voltage/High Current Mode: (per channel)
8 Ohm: 200 W (IHF 1kHz signal pulse)
4 Ohm: 340 W (IHF 1kHz signal pulse)
2 Ohm: 500 W (IHF 1kHz signal pulse)
High Current Mode: (per channel)
4 Ohm: 200 W (IHF 1kHz signal pulse)
2 Ohm: 340 W (IHF 1kHz signal pulse)
Total negative feedback: 12dB
Total harmonic distortion:
Attenuation factor: 65
Power bandwidth at half output power into 8 ohms:
