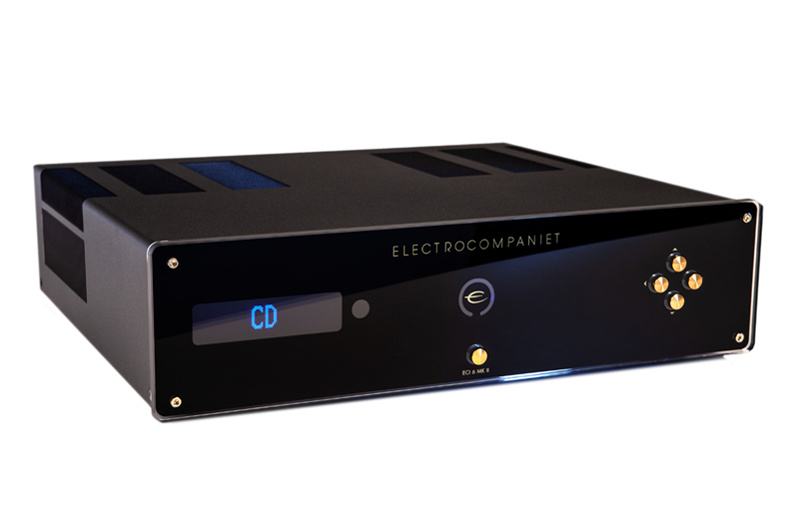

Electrocompaniet ECI 6 DX mkII

Electrocompaniet ECI 6 DX mkII

TECHNICAL SPECIFICATIONS:

Digital section:

D/A converter: 24 bit/192 kHz
Sample rate converter: 24bit / 192kHz

Inputs
SPDIF, 2x Toslink, 1x USB
USB: asynchronous up to 24bit/ 192kHz supported
SPDIF: 24bit/ 192kHz
Toslink: 24bit/ 96kHz

Streamer section
• Advanced 802.11 AC WiFi with MIMO
• 1x Gigabit Ethernet (1000Mbps)
• 1x USB for external storage
• iOS, Android and web app

Streaming services:

• AirPlay ®
• AirPlay 2 ®*
• Spotify ® Connect
• Qobuz ®
• TIDAL ®
• TIDAL ® Connect
• Roon Ready
• DLNA
• Internet Radio
• Bluetooth streaming from any Bluetooth enabled device
* Future software update.

Supported formats:
• All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)

Preamplifier section:
Input impedance( Balanced input ): 47Kohm
Maximum input level: 10 Volt RMS
Noise floor: ( 1Vrms, 20 - 20 kHz, balanced): -135 dB
THD + N (1Vrms, 20 - 20 kHz, balanced) : 120 dB.
THD ( 20 - 20 kHz): < 0.004%.
Maximum peak current: >100A.
Damping factor 8 ohm load: >350.
I Input sensitivity 120W output: 1.3Vrms.
Input sensitivity HT 120W output: 1Vrms.
Gain HT Input: x36 (31 dB).

Rated output power:
- 8 ohms: 2 x 125 W
- 4 ohms 2 x 200 W
- 2 ohms 2 x 370 W

Power consumption : 110 W.
Standby: 1W.
Dimensions:
470 mm x 430 mm x 128 mm
Weight: 20,5 Kg
