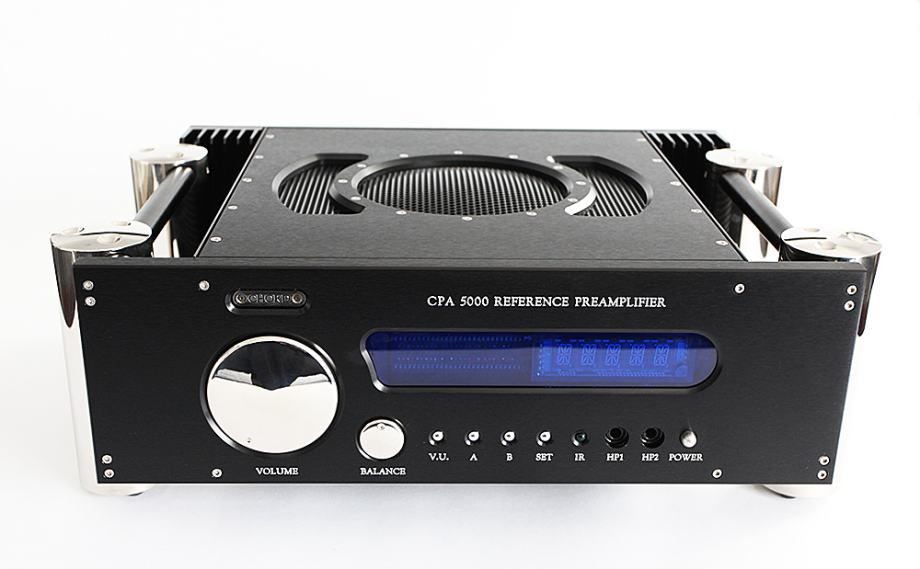

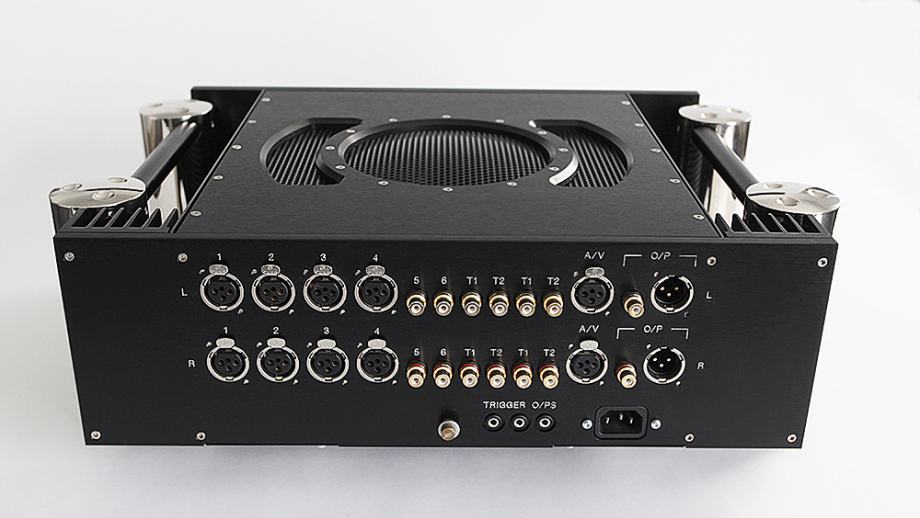

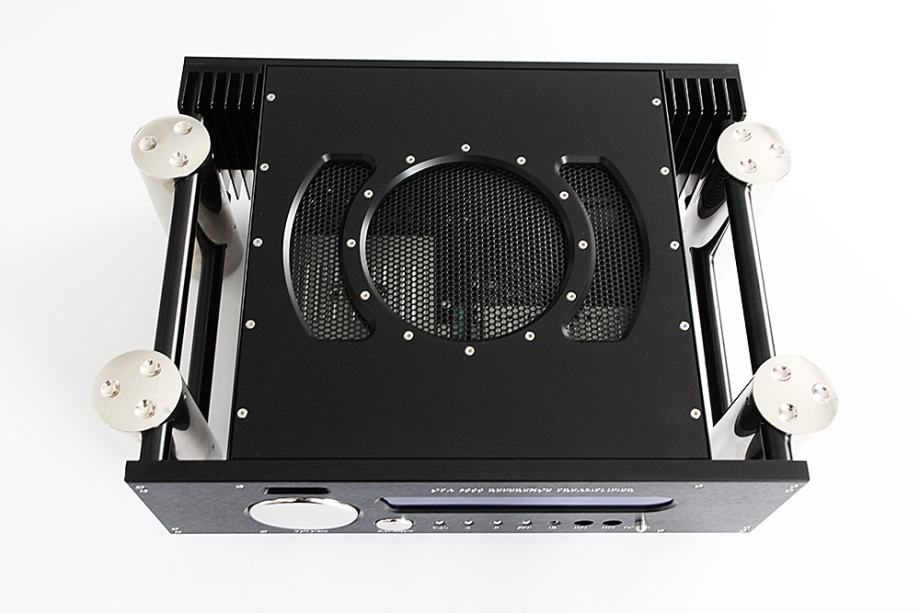

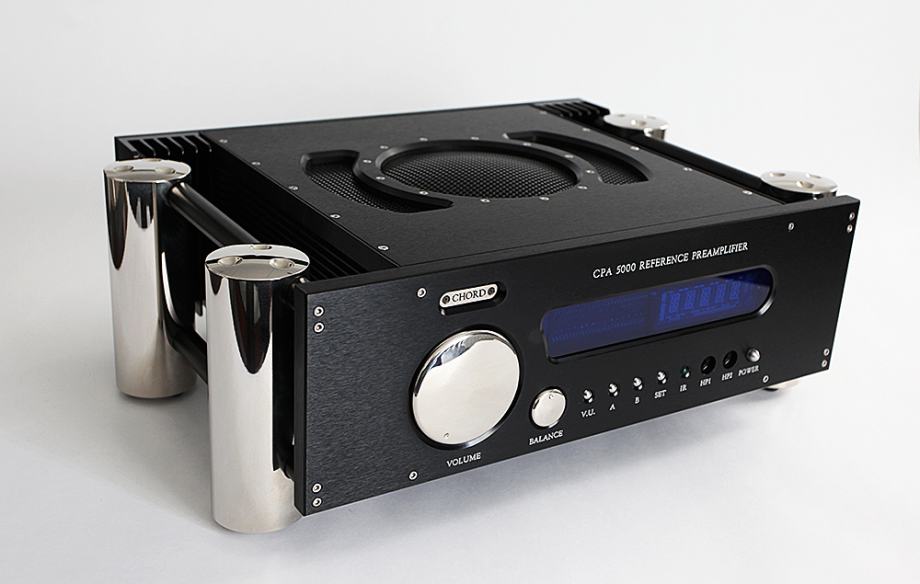

Chord Electronics CPA 5000 Reference Preamplifier
Specifications:
Frequency Range: 2.5Hz – 200kHz +/- 3dB.
Total Harmonic Distortion: 0.002% 20Hz – 20kHz.
Intermodulation Distortion: -115dB on all inputs.
Signal to Noise Ratio: -120dB on all inputs.
Channel Separation:
20Hz @ 100dB, 1kHz @ 95dB, 10kHz @ 90dB, 20kHz @ 85dB
Channel Balance: 0.01dB
Input Max Voltage:
17v RMS Balanced – 8.5v RMS Unbalanced
Output Max Voltage:
17v RMS Balanced – 8.5v RMS Unbalanced
Output Offset: 0mV (Both Channels).
Potentiometer Performance:
0dB 0.5dB, -20dB 0.2dB, -60dB 0.24dB (13seconds Full Travel)
Nominal Gain:
All inputs subject to six levels of switchable gain – x0.5, x1, x1.5, x2, x2.5, and x3
Input Impedance: 100 kΩ Balanced – 50 kΩ Unbalanced.
Output Impedance: 100Ω (Short Circuit Protected).
Operating Voltage:
85v – 270v AC (50Hz – 60Hz) Auto Switching
Power Consumption: 30w
Dimensions Without Integra Legs:
420mm (w) x 355mm (d) x 133mm (h)
Dimensions With Included Integra Legs:
480mm (w) x 355mm (d) x 173mm (h)
Weight: 18 kg.
Specifications:
Frequency Range: 2.5Hz – 200kHz +/- 3dB.
Total Harmonic Distortion: 0.002% 20Hz – 20kHz.
Intermodulation Distortion: -115dB on all inputs.
Signal to Noise Ratio: -120dB on all inputs.
Channel Separation:
20Hz @ 100dB, 1kHz @ 95dB, 10kHz @ 90dB, 20kHz @ 85dB
Channel Balance: 0.01dB
Input Max Voltage:
17v RMS Balanced – 8.5v RMS Unbalanced
Output Max Voltage:
17v RMS Balanced – 8.5v RMS Unbalanced
Output Offset: 0mV (Both Channels).
Potentiometer Performance:
0dB 0.5dB, -20dB 0.2dB, -60dB 0.24dB (13seconds Full Travel)
Nominal Gain:
All inputs subject to six levels of switchable gain – x0.5, x1, x1.5, x2, x2.5, and x3
Input Impedance: 100 kΩ Balanced – 50 kΩ Unbalanced.
Output Impedance: 100Ω (Short Circuit Protected).
Operating Voltage:
85v – 270v AC (50Hz – 60Hz) Auto Switching
Power Consumption: 30w
Dimensions Without Integra Legs:
420mm (w) x 355mm (d) x 133mm (h)
Dimensions With Included Integra Legs:
480mm (w) x 355mm (d) x 173mm (h)
Weight: 18 kg.
