AYON AUDIO SCORPIO #ZAMJENA#

O ovom pojačalu stvarno ne treba puno pisati... stanje 10/10
Pojačalo je kao novo, dolazi sa uputama, original kutijom i original daljinskim...
Lampe original, tek usvirane... cca 100 sati rada...

Moguće zamjene za jeftinije pojačalo ili malo bolji DAC ili Marantz TT 15S1... plus vaša nadoplata...
Cijena nije fiksna... moguć dogovor...

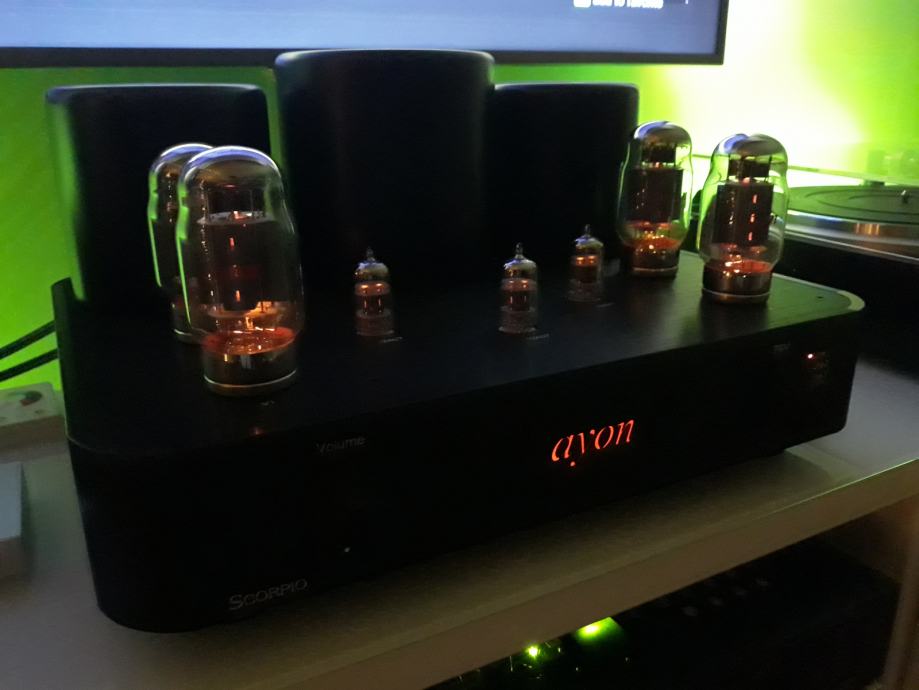

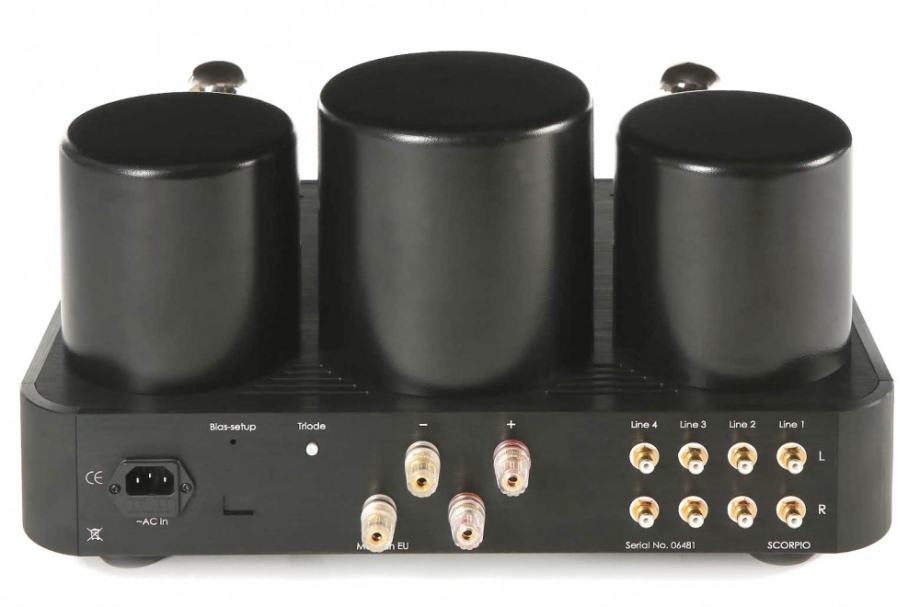

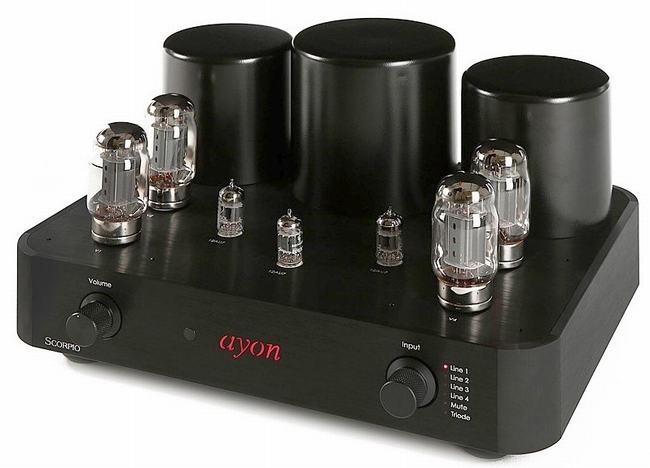

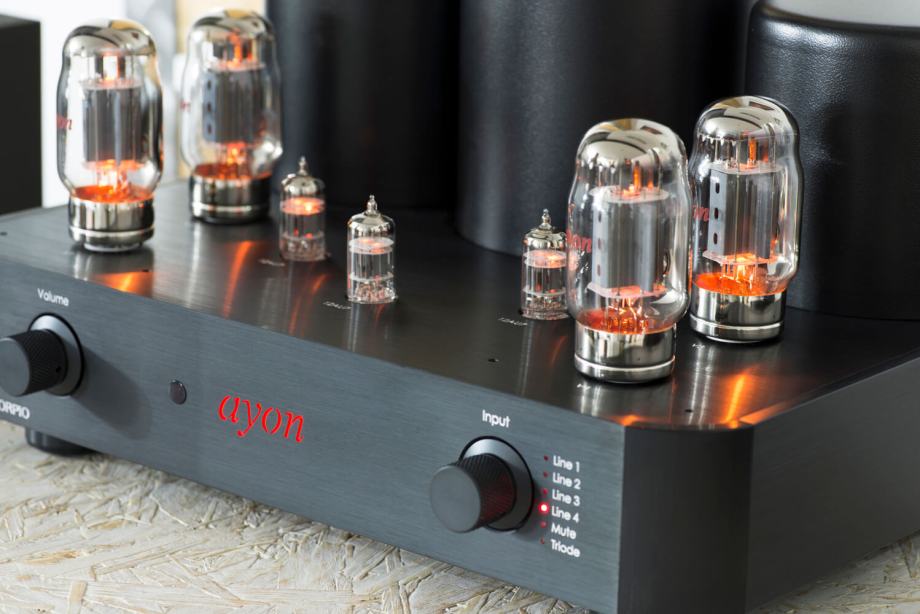

Slike sa neta, zadnja slika moja original.

Molim ozbiljno zainteresirane kontakt...

Features & Design
Pure class A tube stereo integrated amplifier
Pentode and Triode mode
KT88 vacuum tubes & 12AU7 tubes
Perfect for difficult loudspeaker loads

Vacuum Tubes
The Ayon Scorpio is designed specifically and fine tuned to the KT-88 vacuum tube. A finely tuned machine for the KT-88 tube only. The signal tubes, the 12AU7 tubes are NOS as well. Very Nice Touch.

Signal Path

The shortest signal paths delivers the best performance. That is how Ayon designs their gear! Pure Class A ONLY.

● Monitored sequenced soft-start – extends tube life
● Power tube – intelligent protection circuits000
● Zero dB negative feedback
● Ultra short signal path
● Direct circuit paths
● No solid state devices in signal paths
● High current – low impedance design
● Discrete wiring
● Intelligent bias adjustment and vacuum tube protection
● No followers or buffers
● Premium parts throughout


HD Power Supply
HD power supplies have been further refined and enhanced with AC line noise conditioning. Independent power transformers, chokes and filters separate input and output stages makes this a high current, pure power source. Electrolytic capacitors with huge electrical storage capacity.

● HD Low noise – power transformers
● HD Power transformer is encased, damped and RFI/EMI shielded
● Premium power supply – high speed – high current
● Choke filtered power supply
● Independent, isolated HD power supplies for each stage of amplification
● High current filament regulators
● Regulated DC filament – soft start
● AC power line conditioner
● Current limiters
● Intelligent auto sequencing – Power on and off

HD Output Transformer
The HD wide bandwidth output transformer delivers the required current for a tight bass, producing an intoxicating midrange and smooth highs that do not roll off.

● HD wide bandwidth output transformer
● High efficiency no insertion loss – optimal current, voltage transfer
● Resonance sealed Output transformers

Premium Components
● Hand selected components
● Premium high speed audiophile coupling capacitors
● Premium special tube sockets – beryllium, copper, custom made by Ayon
● Premium – speaker taps
● Premium – RCA connectors
● Isolated – internal wiring
● Copper matrix wiring
● Gold PCB

Exquisite Mechanical Construction
Aircraft grade aluminum chassis. Elegant brushed aluminum. Anti resonance, non magnetic chassis. 100% hand assembled, superb craftsmanship.

● Efficient heat dispersal – runs cool

● Beautifully machined control knobs
● Resonance control aluminum feet
● Backlit “ayon” logo
● Panel engraving
● 4 RCA line inputs
● Aluminum remote cotrol
● Chassis finish: black

Specifications
Amplifier Ayon Scorpio
Class of Operation Triode* or Pentode mode, Class-A*
Tube Complement 4 x KT88 & 3 x 12AU7
Load Impedance 4 & 8 Ohms
Bandwidth 15Hz – 50kHz
Output Power-Pentode mode KT88 2 x 45 W
Output Power-Triode mode KT88 2 x 36 W
Input sensitivity for full power 500mV
Input Impedance at 1 kHz 100 KΩ
NFB 0dB
Volume Control Yes
Remote Control Yes
Inputs 4x Line
Dimensions (WxDxH) 18.11 x 13.38 x 10.23 inches
Weight 77 lbs – Shipping weight 87 lbs
