Audio Research Reference 160 M
- Cijena
- 33.000 €
Šifra oglasa: 39503915
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Vrbik
- Stanje
- rabljeno
Opis oglasa

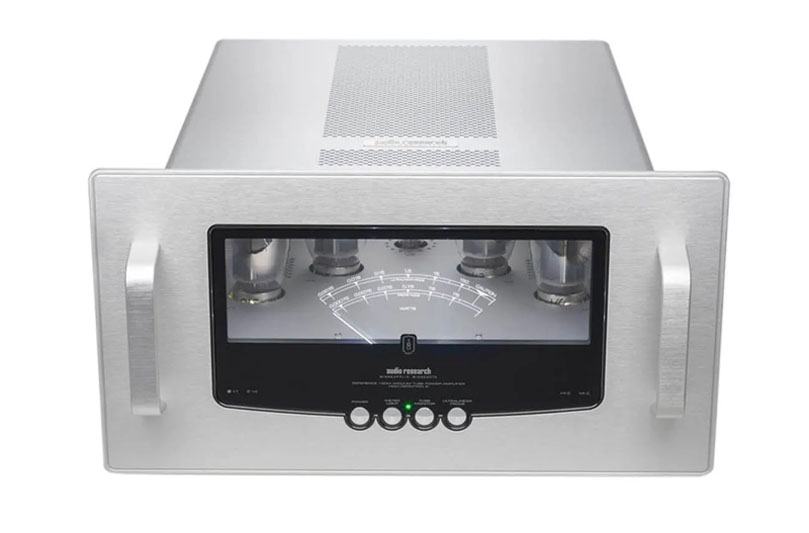

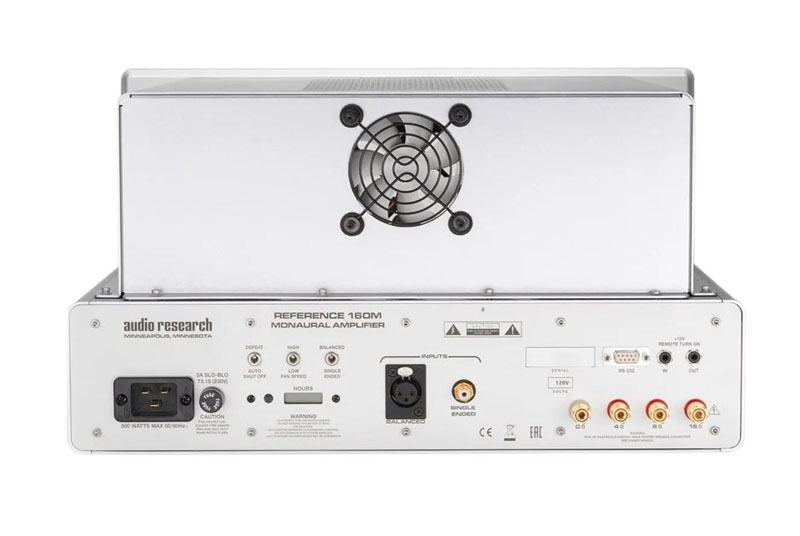

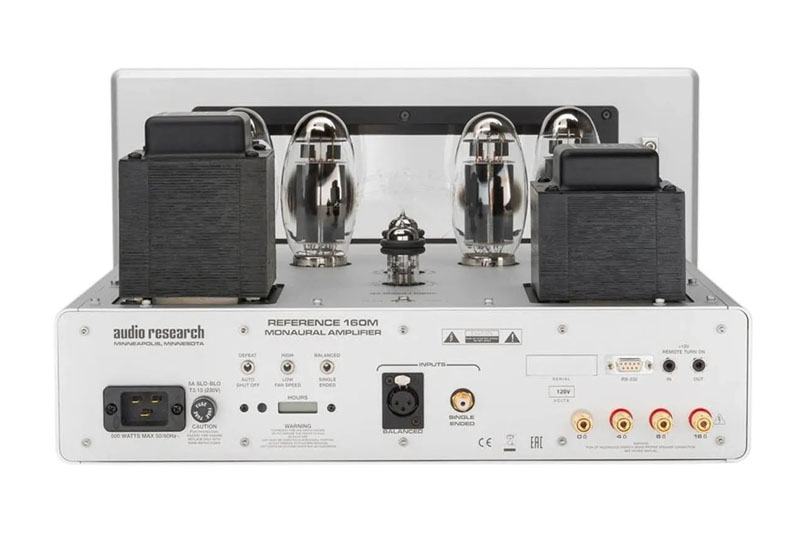

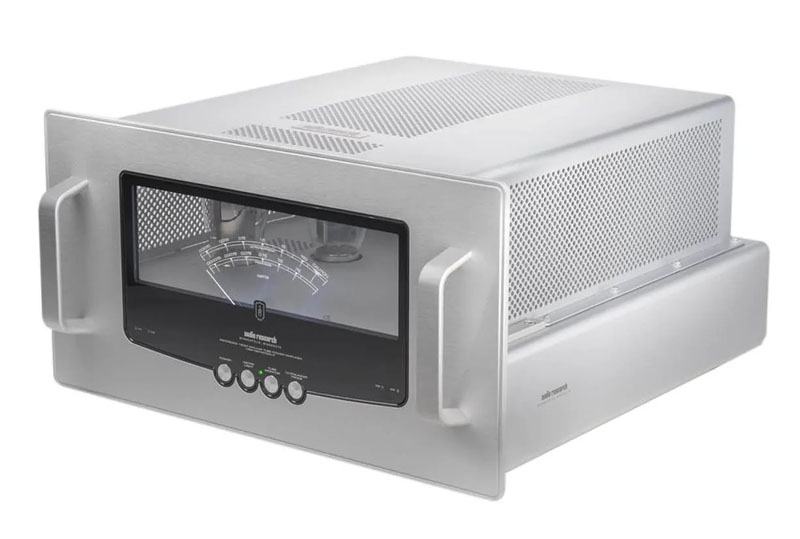

Audio Research Reference 160 M Mono Amplifier
POWER OUTPUT:
140 watts continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1% at
140 watts, below 0.04% at 1 watt. (Note that actual power output is dependent upon
both line voltage and “condition” i.e.: if power line has high distortion, maximum power
will be affected adversely, although from a listening standpoint this is not critical).
POWER BANDWIDTH:
(-3dB Points) 5Hz to 70kHz.
FREQUENCY RESPONSE:
(-3dB points at 1 watt) 0.5Hz to 110kHz.
INPUT SENSITIVITY:
2.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms).
INPUT IMPEDANCE:
200 k ohms Balanced.
OUTPUT POLARITY:
Non-inverting. Balanced input pin 2+ (IEC-268).
OUTPUT TAPS:
16 ohms, 8 ohms, 4 ohms.
OUTPUT REGULATION:
Approximately 0.6dB 16 OHM LOAD TO OPEN CIRCUIT (Damping factor
approximately 14).
OVERALL NEGATIVE FEEDBACK:
14dB SLEW RATE: 13 volts/microsecond RISE TIME: 2.0 microseconds.
POWER REQUIREMENTS:
105-130VAC 60Hz (210-250VAC 50Hz) 400 watts at rated output, 700 watts maximum,
260 watts at “idle”, 1 watt off

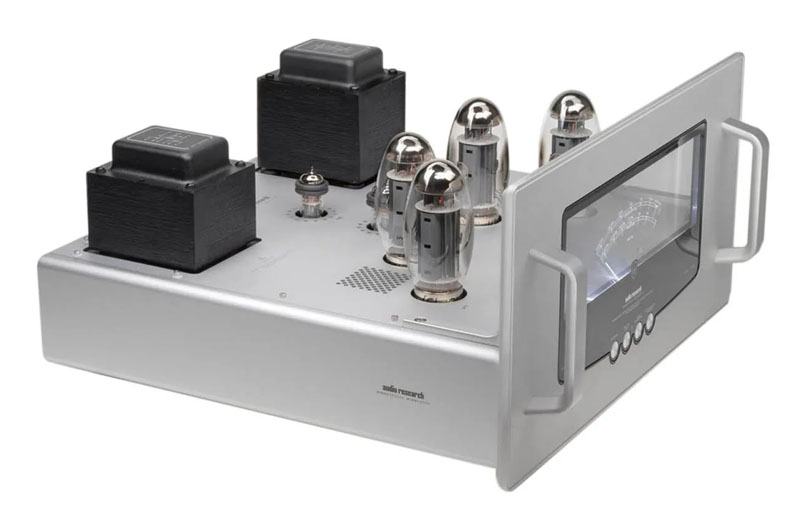

TUBES REQUIRED:
2 matched pair KT150 (Power output V1-4); 2 6H30 (Gain stage V5 and V6).
DIMENSIONS:
Width: 43.8 cm.
Height: 25.4 cm.
Depth: 47 cm.
Handles Extended 19.25” (48.9 cm)
WEIGHT:
25.5 kg Net
33.2 kg Shipping
POWER OUTPUT:
140 watts continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1% at
140 watts, below 0.04% at 1 watt. (Note that actual power output is dependent upon
both line voltage and “condition” i.e.: if power line has high distortion, maximum power
will be affected adversely, although from a listening standpoint this is not critical).
POWER BANDWIDTH:
(-3dB Points) 5Hz to 70kHz.
FREQUENCY RESPONSE:
(-3dB points at 1 watt) 0.5Hz to 110kHz.
INPUT SENSITIVITY:
2.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms).
INPUT IMPEDANCE:
200 k ohms Balanced.
OUTPUT POLARITY:
Non-inverting. Balanced input pin 2+ (IEC-268).
OUTPUT TAPS:
16 ohms, 8 ohms, 4 ohms.
OUTPUT REGULATION:
Approximately 0.6dB 16 OHM LOAD TO OPEN CIRCUIT (Damping factor
approximately 14).
OVERALL NEGATIVE FEEDBACK:
14dB SLEW RATE: 13 volts/microsecond RISE TIME: 2.0 microseconds.
POWER REQUIREMENTS:
105-130VAC 60Hz (210-250VAC 50Hz) 400 watts at rated output, 700 watts maximum,
260 watts at “idle”, 1 watt off
TUBES REQUIRED:
2 matched pair KT150 (Power output V1-4); 2 6H30 (Gain stage V5 and V6).
DIMENSIONS:
Width: 43.8 cm.
Height: 25.4 cm.
Depth: 47 cm.
Handles Extended 19.25” (48.9 cm)
WEIGHT:
25.5 kg Net
33.2 kg Shipping
