Atenuator Goldpoint Mini-V V24 - Quad

Prodajem Goldpoint Mini-V V24 rezistorski step atenuator u quad konfiguraciji (4 mono kanala). Može se koristiti za dvostazni aktivni sustav ili kao atenuator za uređaje koji su potpuno balansiranog ustroja. Ili za standardni dvokanalni audio sistem.

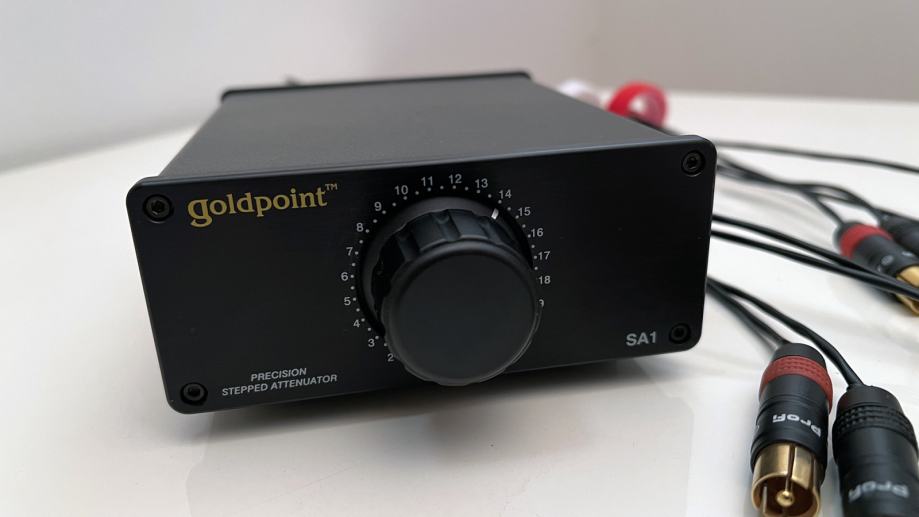

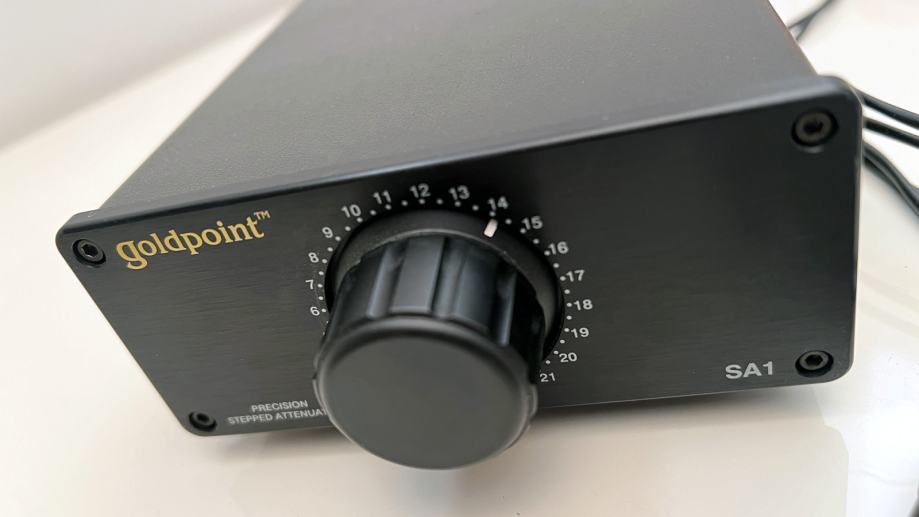

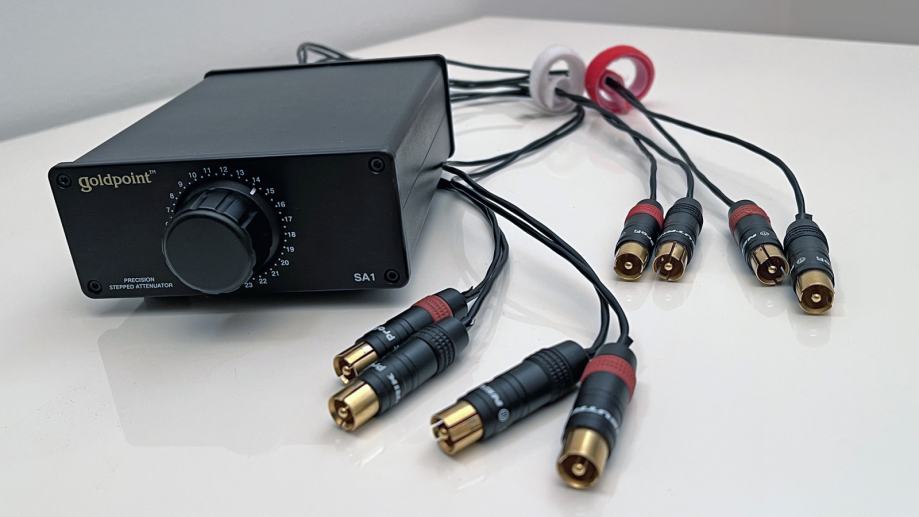

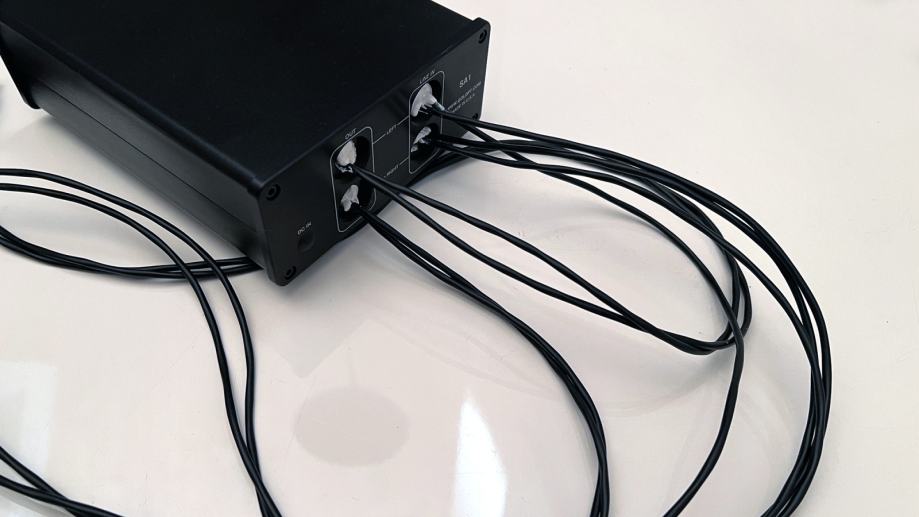

Smješten je u Goldpoint SA1 kućište, Mogami kabeli su lemljeni direktno na atenuatore, konektori su Neutrik ProFi NF2C-B/2 RCA.

Najbolji zvuk atenuatora (s najmanje utjecaja na signal). Imao sam svojedobno i Audio Synthesis Passion s ručno biranim Vishay otpornicima i ovaj Goldpoint je bolji.

Koncepcija sistema mi se silom prilika promijenila pa kod mene više nema svrhu.

Cijena svih dijelova s dostavama je bila nešto preko 500 EUR, prodajem za 300 EUR

Mogu prodati i bez Neutrik konektora - u tom slučaju cijena 250 EUR

Ne zanimaju me zamjene za audio uređaje i opremu.

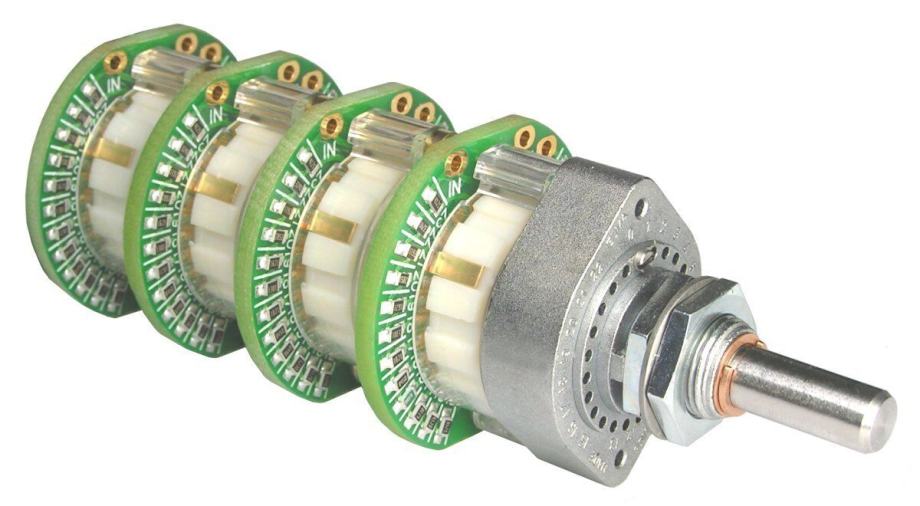

V24

These are the best sounding precision volume controls available. They come with pre-installed high quality SMD resistors. (Low noise, laser trimmed, 0.5% nichrome resistors). The sound quality is transparent, which is what you actually want in a volume control.

Starting at full counter-clockwise rotation (OFF), the decibel step sizes are 9, 7, 6, 4, 3 and then 2dB for all 17 remaining steps up to full ON. This Goldpoint defined taper optimizes and is plenty of steps for volume control of most systems.The 15 degree switching, 24-position stepped attenuators provide 62dB of total attenuation.

The surface mounted resistors used on the standard Goldpoint V24s are 0.5% Nichrome thin film with a thermal noise specification (TCR) of 25 PPM. These are the best sounding resistors we have ever heard (or ever used). They have an essentially transparent sonic signature. This makes them better than Vishay S102 or even Caddock MK32 resistor types, because they do not add or subtract any sound qualities to your musical signals - just precisely accurate level control.

Because of their precision, the standard V24s are great for recording studio and other Balanced Input applications. This precision means excellent channel-to-channel signal level matching. Audiophile applications with regular (single-ended) stereo format can usually skip the use of balance controls all together. Pro Audio Balanced Line format will have very closely matched +/- elements and excellent channel-to-channel level matching.
