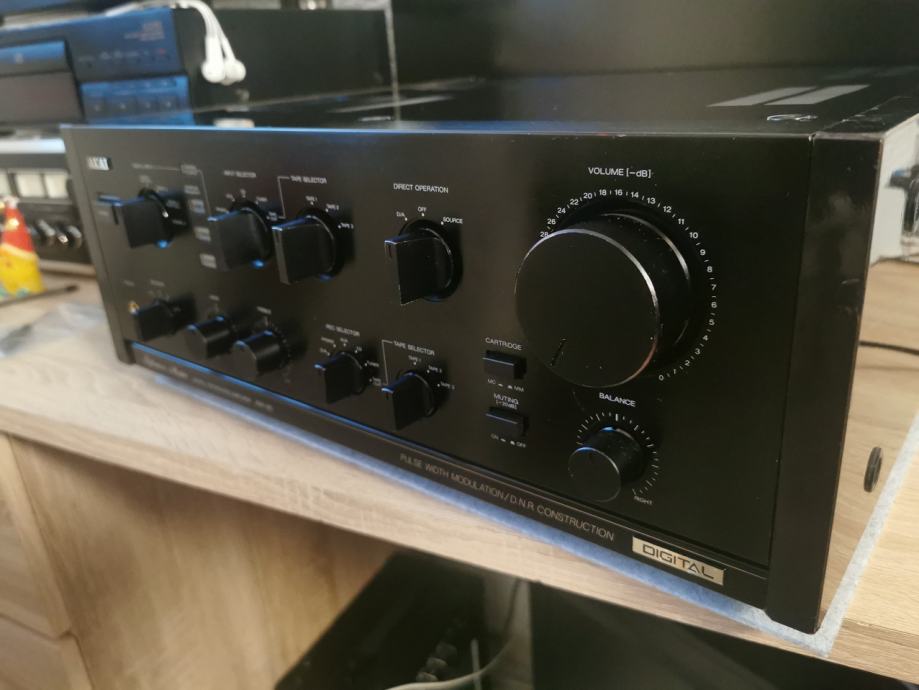

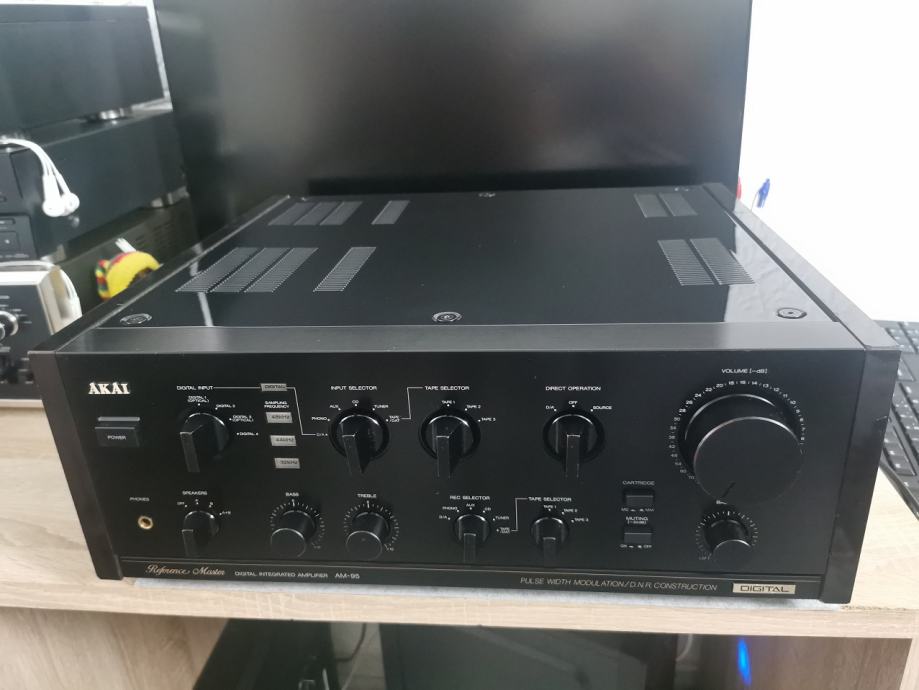

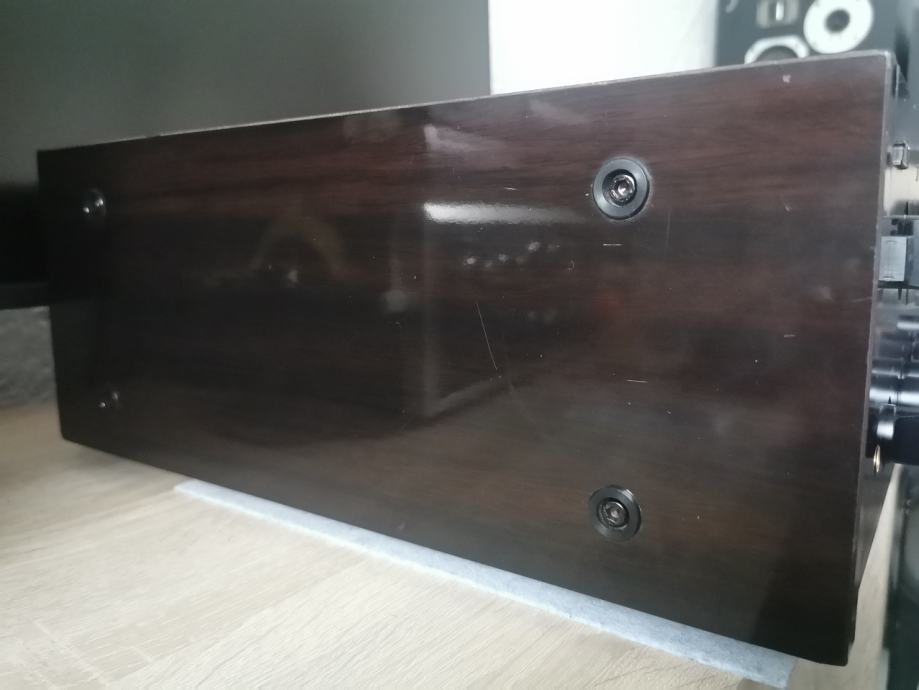

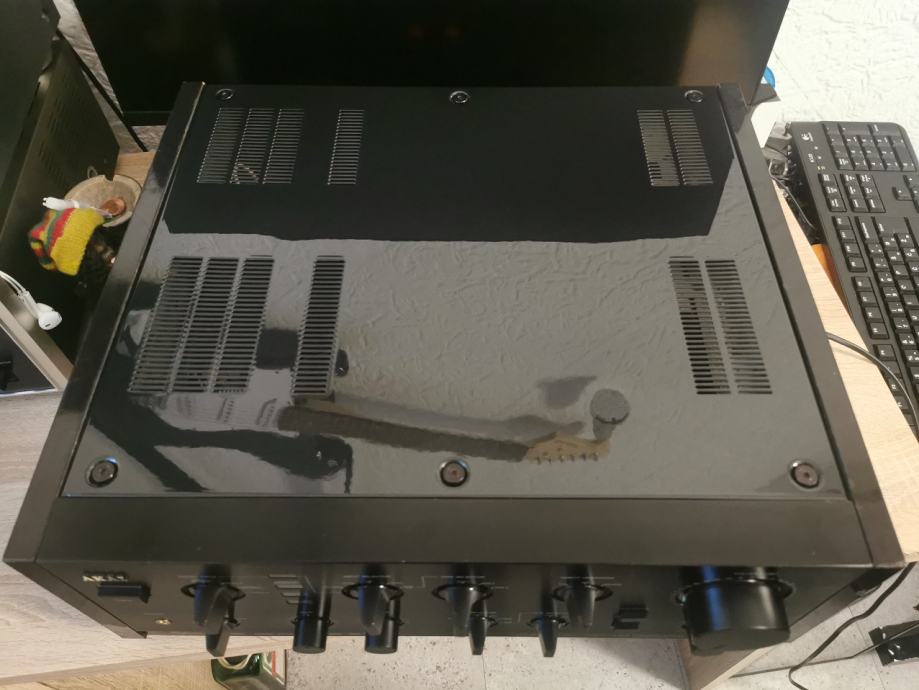

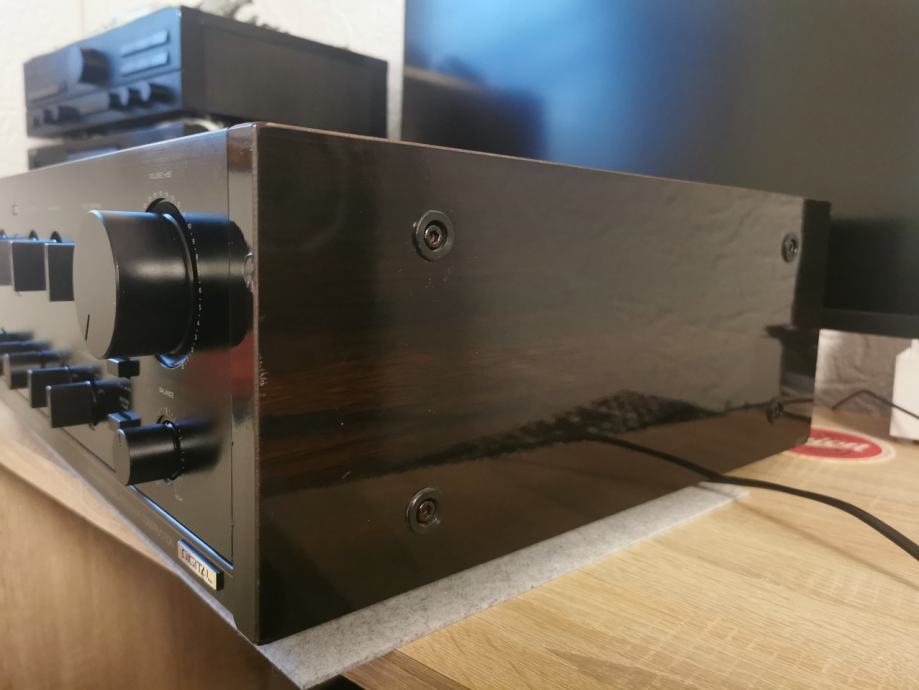

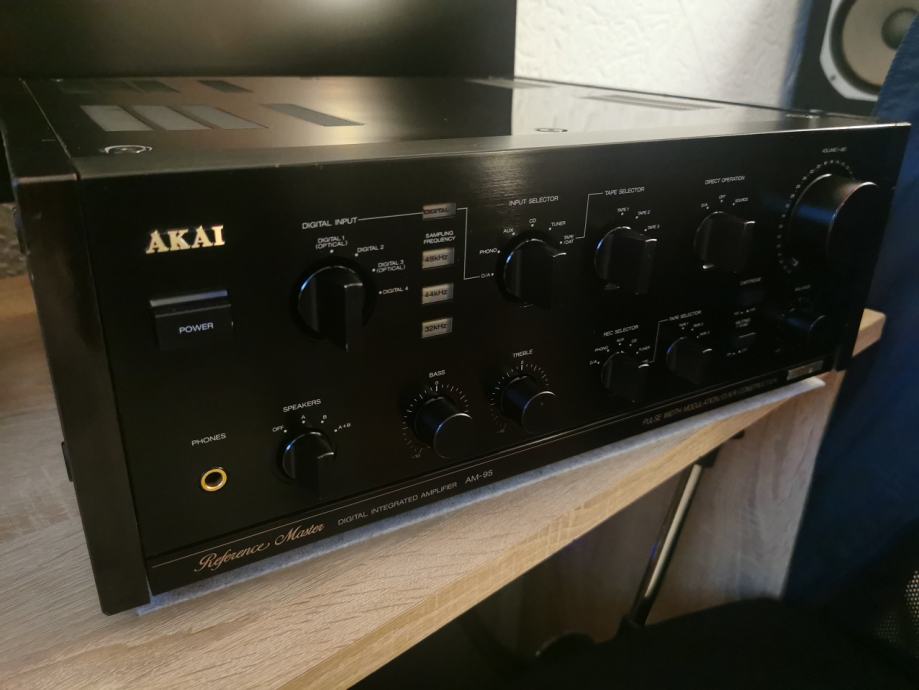

Akai AM-95

očuvano ispravno
proba i preuzimanje Krško
dogovor oko dostave Zaprešič Samobor Jankomir-King Cross
cijena sa dostavom 650€

mobi: 00386 40 528 536


General

Manufacturer: Akai
Model: AM-95
Type: Integrated amplifier
Years of manufacture: 1990 - 1992
Made in: Japan
Colors: Black
Remote control: no
Power consumption:
Dimensions: 461 x 177 x 452 mm (WxHxD).
Weight: 22 kg
Original price approx.: 1'999 DM (UVP)

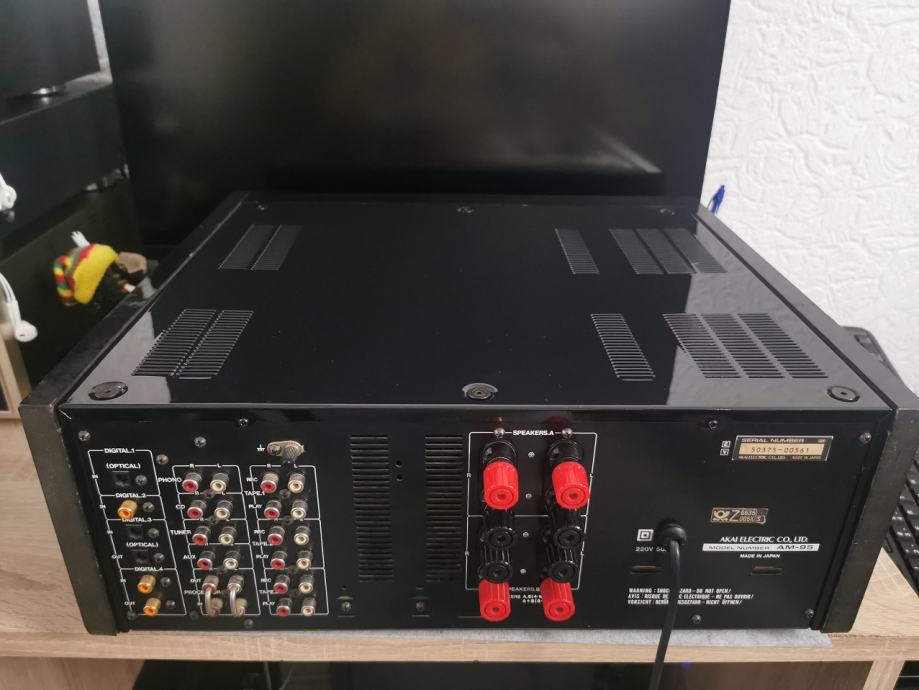

Connections

Number of inputs: 9

PHONO, CD/DVD , TUNER, AUX , TAPE/DAT-1 , TAPE/MD-2, TAPE-3, Processor, 4 x Digital Input sensitivity:

Phono (MM) 2.5mV/47kOhm

High level: 150mV/47kOhm

Number of outputs: 6
TAPE1, TAPE2, TAPE3, Equalizer, 2 x Digital
Tape Rec Out 150mV/1kOhm


Technical Data

DC amplifier with active negative feedback
2 x 132 Watt into 8 Ohm

2 x 180 watts into 4 ohms

2 x 320 Watt into 2 Ohm
toroidal transformer
8 x toroidal transformer (60kHz power bandwidth)
Well cooled
Separate preamplifier modules
4 digital inputs (2 x optical, 2 x coaxial)
2 digital outputs (1 x optical, 1 x coaxial)

7 analogue inputs (PHONO, CD/DVD , TUNER, AUX , TAPE/DAT-1 , TAPE/MD-2, TAPE-3, Processor) 4 analog outputs (TAPE1, TAPE2, TAPE3, Equalizer)

3 tape connectors
Gold-plated connection sockets
Separate record selector
MM/MC switching capability
Direct Operation
D/A converter (recording from analog sources e.g. phono to digital outputs e.g. computer)
1-bit MASH digital section
Automatic detection of sampling frequency (48, 44, 32 kHz)
Digital noise reduction
Phono input MC and MM
Muting button
Separate Record Selector
Source direct circuit
Headphone jack
Power bandwidth 10 Hz - 80 kHz
Distortion factor 0.001
Signal to noise ratio 102 dB
Inherent noise 0.1 mV
Speaker A or B / A + B ; 4-16 / 8-16 Ohm
Frequency response 3 Hz - 100 kHz (-3dB)
Dynamic range 98 dB
Channel separation 115 dB
