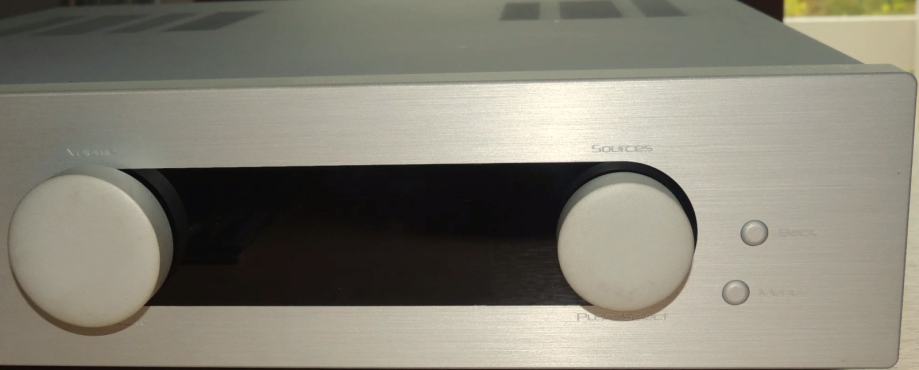

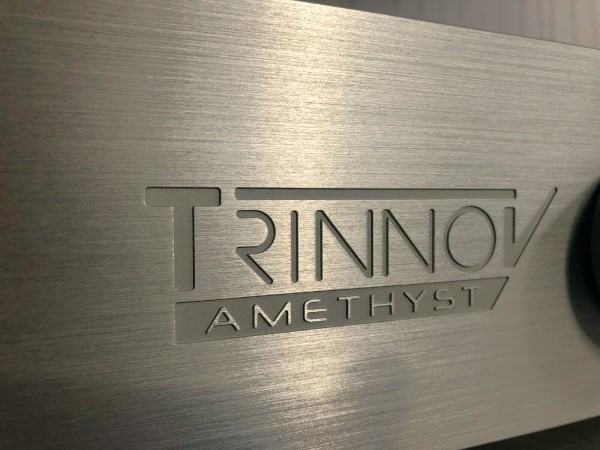

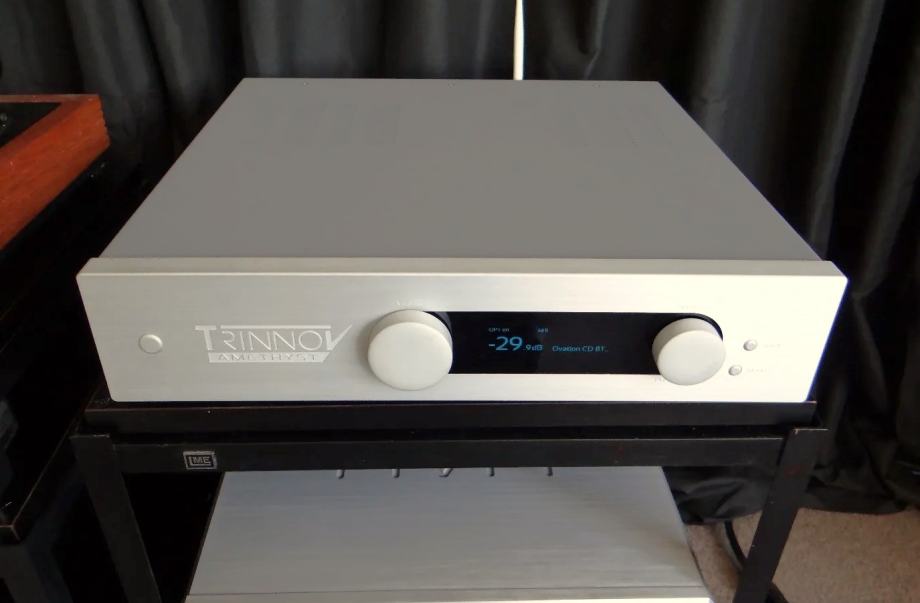

Trinnov Amethyst

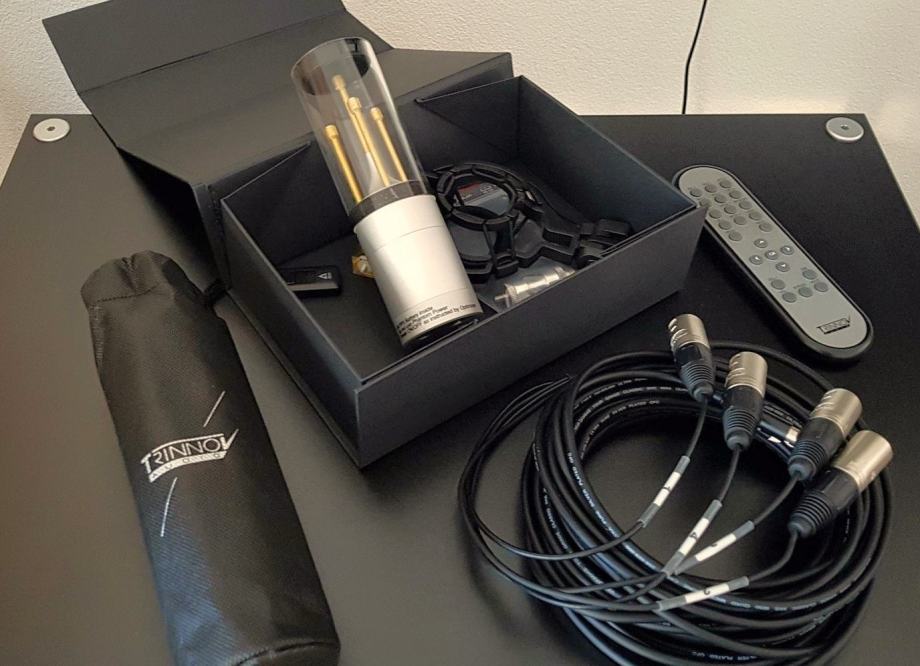

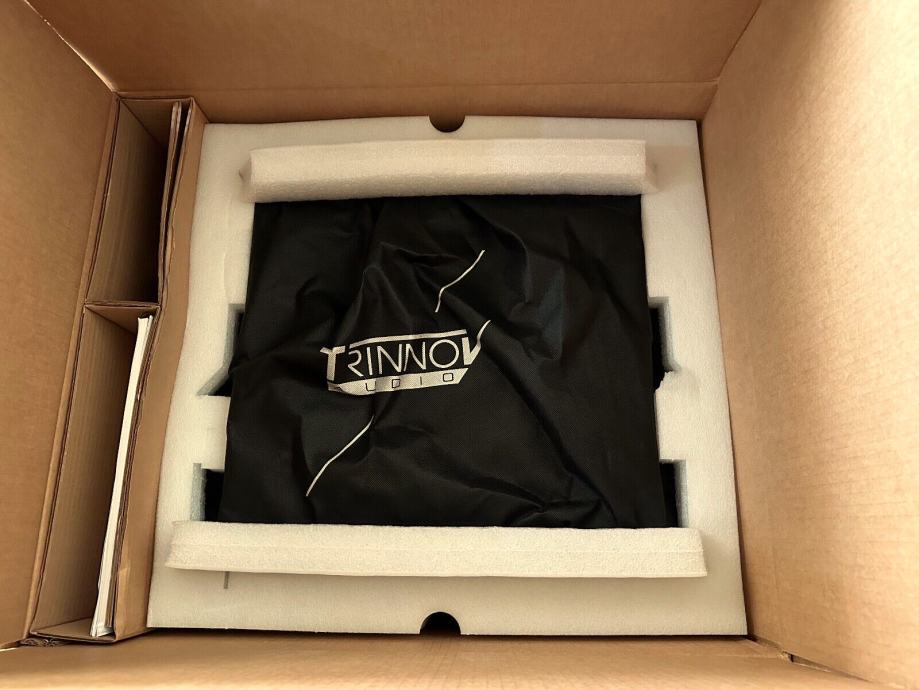

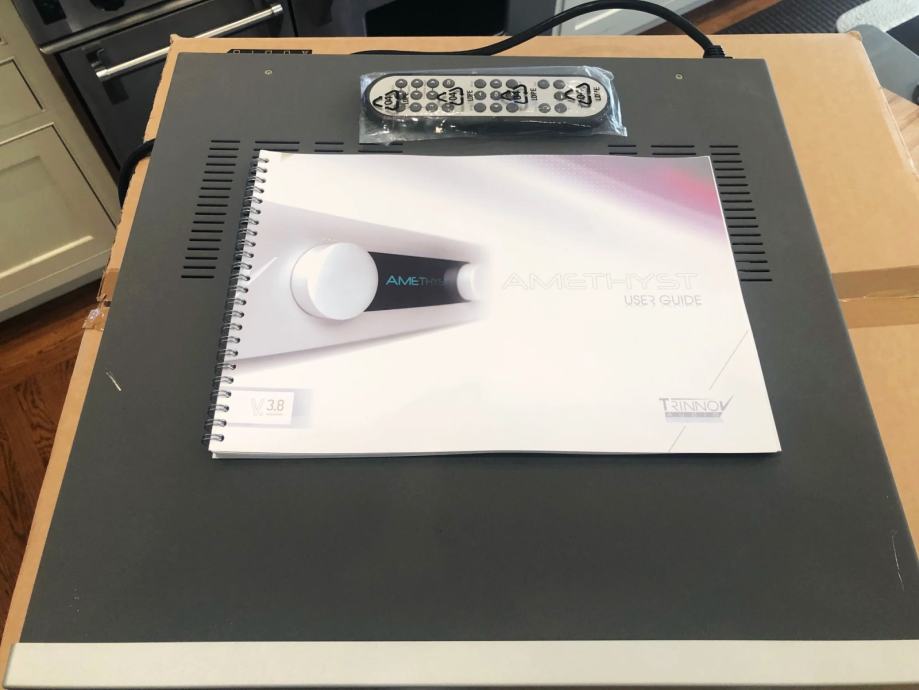

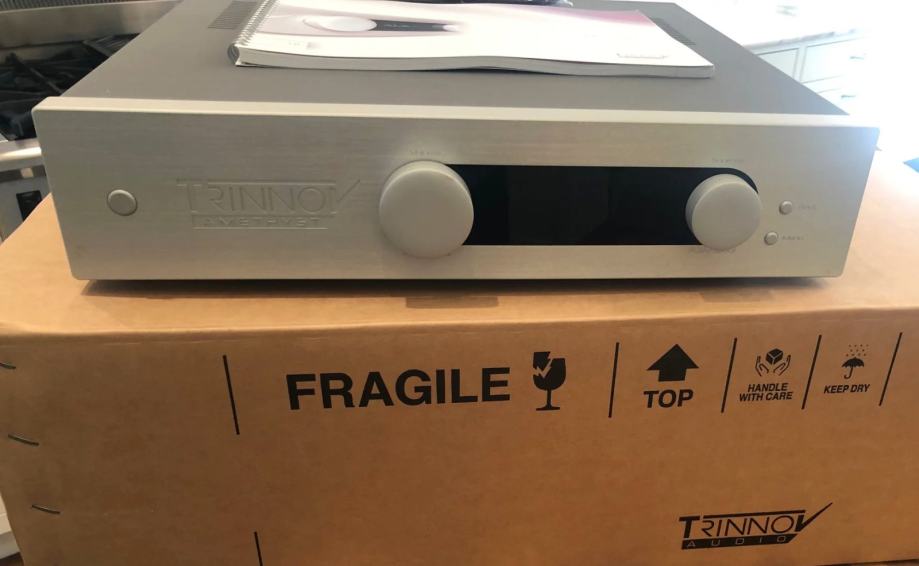

Prodajem Trinnov Amethyst zasigurno najcjenjeniji audio procesor , u sebi sadrži preamp , DAC , DSP processor , Roon endpoint . Kupljen je pred 3 godine , dolazi s kompletnim priborom , mjernim mikrofonom , stalkom i originalnom ambalažom .
Moguće je plaćanje putem paypala .

OSNOVNE TEHNIČKE ZNAČAJKE
· an 11-source preamplifier with built-in Speaker/Room Optimizer,

· Trinnov’s innovative Hybrid Phono Preamp,

· a Network Renderer, Roon endpoint

· built-in Wifi connectivity for simplified operations,

· a 24 bit/192kHz DA Converter and

· a 2-way intelligent active crossover engine.

11 Source High-End Preamplifier

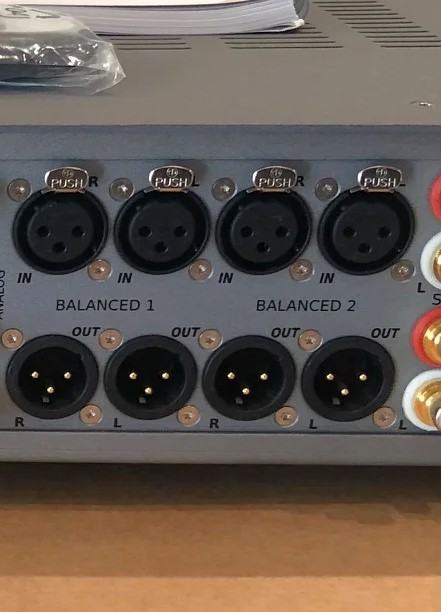

· 2 balanced analogue sources on XLR connector

· 1 single-ended analogue source on RCA connector

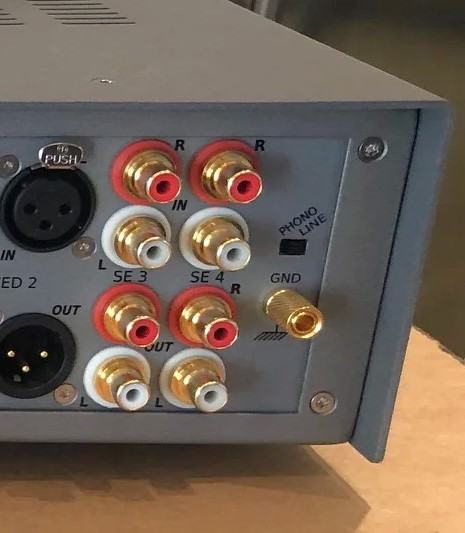

· 1 single-ended analogue source on RCA connectors switchable to Phono

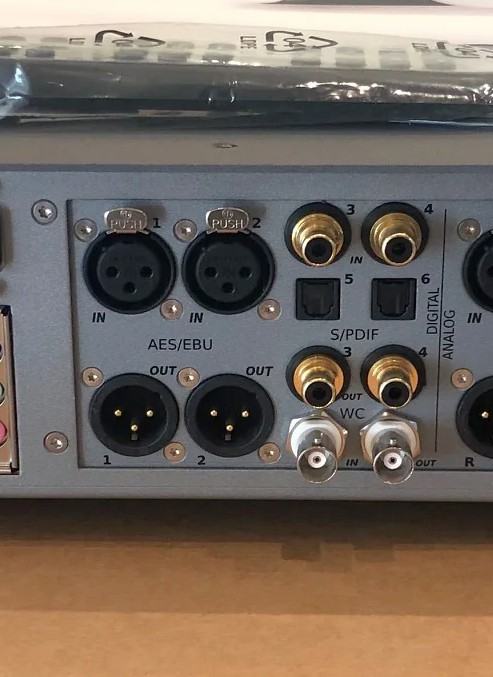

· 2 AES/EBU digital sources on XLR connectors

· 2 Coaxial S/PDIF digital sources on RCA connectors

· 1 High-Resolution UpnP Network Source (Ethernet, WiFi)



MM Phono Preamp

· Trinnov HybriD Technology: innovative RIAA filter, combining an analog circuit for the low-end and a dedicated digital algorithm for the high frequencies.

Hi-Resolution Network Renderer

· High Resolution file support

· UpnP Protocol (DLNA Compatible Digital Media Renderer)

· Supported formats: WAV, AIFF, OGG, FLAC up to 24 bits /192 kHz

· Roon End Point integration – enables the streaming of all
the music available on local computers and NAS drives as well as music services
like TIDAL, directly to the Amethyst and play them at the highest-possible
quality.



AD/DA Converters

· A/D signal-to-noise ratio: 119 dB (A-weighted)

· D/A signal-to-noise ratio: 118 dB (A-weighted)

· High Performance jitter attenuation (better than
50dB above 100Hz)

· Supported A/D sampling rates: 44.1 / 48 / 88,2 / 96 kHz

· Supported D/A sampling rates: 44,1 / 48 / 88,2 / 96 / 176,4 / 192 kH

· Word Clock Input/output



Easy Setup

· Insert the Amethyst between your sources and the amplifiers, and connect the microphone

· Run the step-by-step calibration wizard

· Select one of the 5 automatically generated compensations

· Change the target curves and other optimization parameters

· Store up to 29 user-defined presets

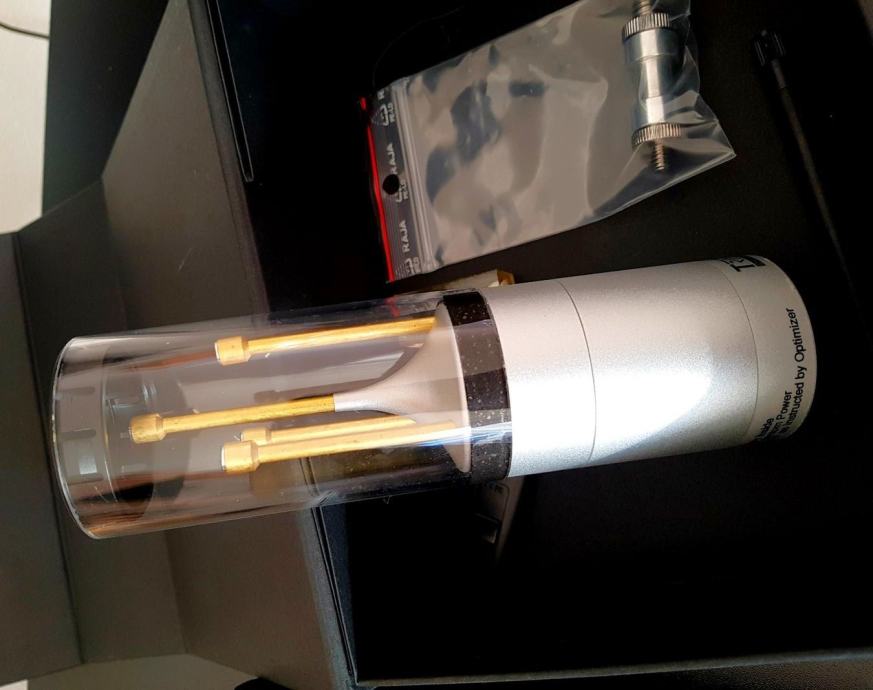

3D Room Calibration Microphone (Optional – Separate Purchase)

· 4 recording capsules in a tetrahedron configuration

· 3D speaker localization

· Individual compensation file

· Frequency response +/- 0.1DB 20Hz-20Khz

· Spatial accuracy +/- 2 degrees in all directions

· this is an included accessory. Normal retail is US$1200..



Built-in Room/Speaker Optimizer

· Step-by-step calibration wizard

· Multi-point acoustic measurements (Trinnov 3D measurement microphone optional)

· Time/frequency acoustic analysis based on impulse response measurement

· Loudspeaker/room optimization



Active Crossovers / Bi-Amplification

· 2-way intelligent active crossover

· Available filters: Linkwitz–Riley, Bessel, Butterworth of 2nd, 3rd and 4th order • Measurement and alignment at the listening point





Power

· Dedicated linear power supply with toroidal transformer for the analogue audio circuit

· Internally switchable 110v / 220v.

Remote Control



· Built in WiFi Access Point and Client

· IR remote

· Use the new OS X application for desktop control

· Telnet and RS-232 Protocol



Demensions

· Size (w,d,h): 442x445x103 (incl. feet)mm

· Weight: 10Kg

· Packaging size (w,d,h): 550,600,220mm

· Packaging weight: 13.8Kg
