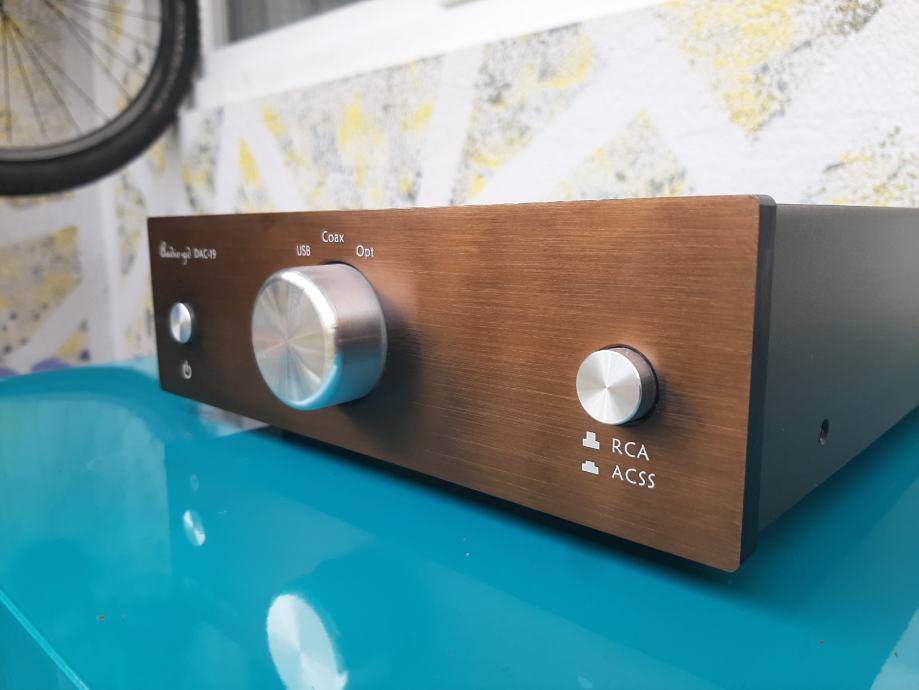

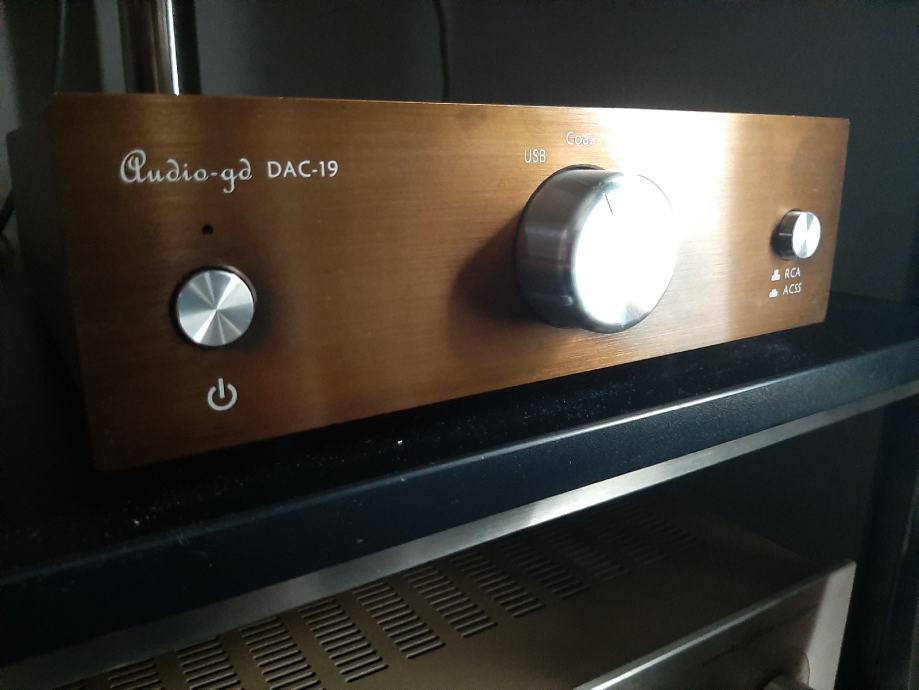

Audio-GD DAC 19

Prodajem DAC marke Audio-GD model Dac-19 vizualno u odličnom satanju i tehnički potpuno ispravan. Dolazi sa strujnim kablom.

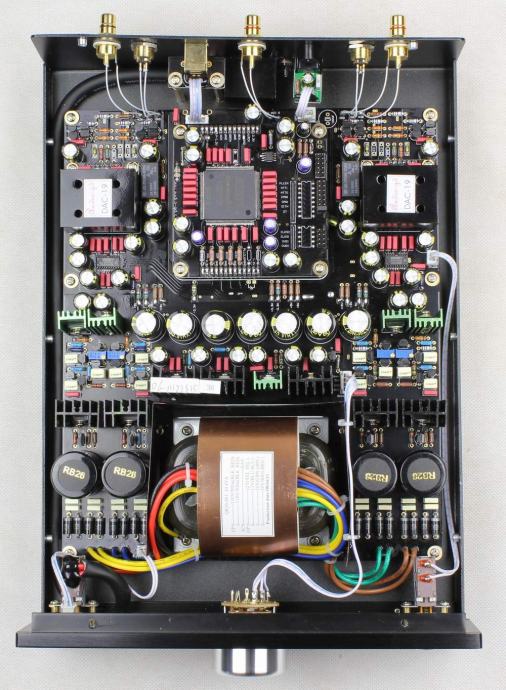

Odličan R2R dac baziran na burr brown PCM1704K. Dual mono konstrukcija sa jednim PCM chipom po kanalu.
Amanero USB modul koji prima signale do 24/192.
Opcija podešavanja zvuka sa DIP switch u DAC-u, pa se može dobiti od toplijeg do otvorenog zvuka, od NOS do 8x oversampling...
Po konstrukciji i po kvaliteti zvuka prava hi end naprava !

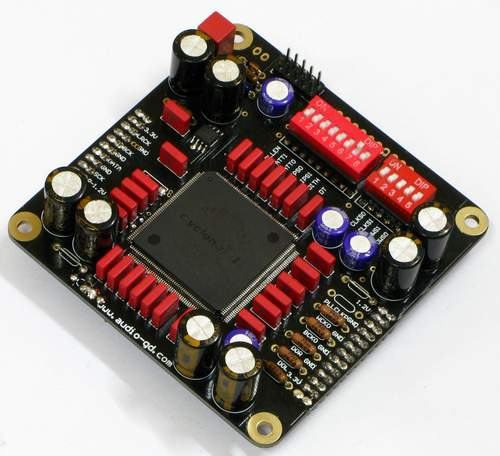

Devices Characteristics:
Two-channel Digital Interpolation Filter and data in-phase processor for digital audio.
208-pin PQFP package, Manufactured on 300-mm wafers using, 90-nm low-k dielectric process. Devices offer advanced features for high-performance digital signal processing (DSP) applications with up to 250-MHz.
Data and Master-clock in-phase processing just without jitters.

Filter Configuration:
Core power supply voltage: 1.2V.
I/O power supply voltage: 3.3V.
Programmable Functions: hardware control mode.
Two-channel 1-times / 2-times / 4-times / 8-times oversampling , supports Bypass mode (NOS mode.).
Three-stage linear-phase ( group delay distortion : Zero) FIR filter configuration.

Filter Characteristics:
Stopband Attenuation: –50dB / -90DB / -130DB.
Passband: 0～0.4535Fs.
Passband Ripple: within ±0.00001dB.

Input/Output:
Input Data Formats: I2S
Input Word Length: 16, 20, or 24 Bits
Output Word Length: 16, 20, or 24 Bits
Output Data Formats: MSB-First, Binary Two’s Complement

Master-Clock:
Clock Autodivide Circuit Supports four Master-Clock Frequencies : 256Fs、384Fs、512Fs、768Fs
Built-in two groups high performance PLL , supports low jitter Master-Clock output.



Šaljem poštom po uplati na račun, poštarinu plaća kupac.
