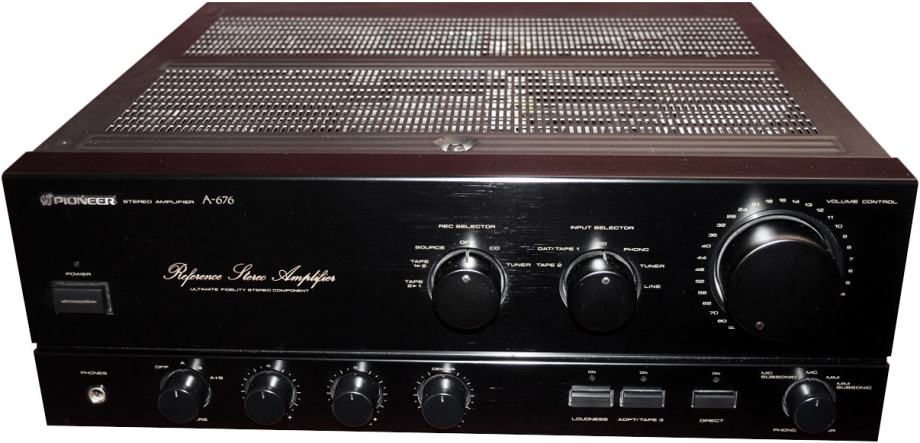

Pioneer A-676 pojačalo High-end Reference Stereo Amplifier

Prodajem navedeno pojačalo u jedva korištenom stanju. Jedino korišteni Phono ulaz i Tape out izlaz. Znači korišteno je kao predpojačalo. Izlazi za zvučnike nekorišteni.

Poklanjam Pioneer radio tuner uz pojačalo.


Manufacturer: Pioneer
Model: A-676
Years of construction: 1993
Made in: Japan
Color: black, silver (A-676-G)
Type: Analog
Remote Control: no
Power consumption: 650 W
Dimensions: 420 x 435 x 162mm (WxHxD)
Weight: 12.8 kg
Price about: 900 DM (460 €)

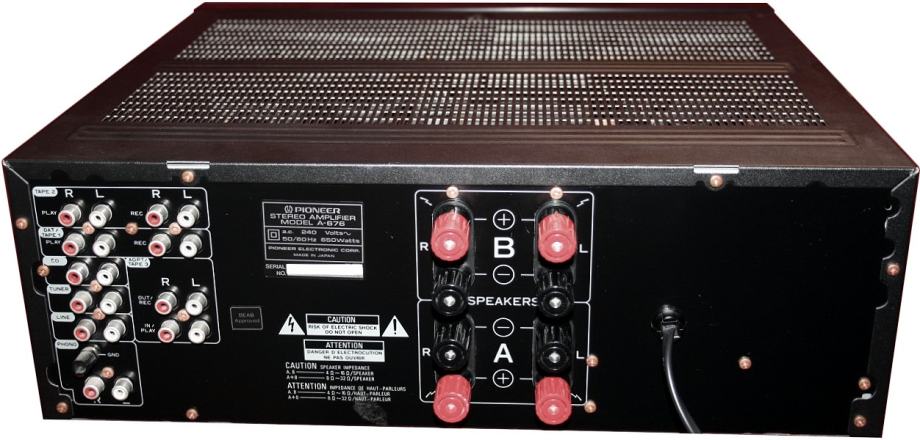

Connections
Number of inputs:
Phono (MM / MC selectable): 2.5 mV / 50 kOhm (MM), 0.2 mV / 100 ohms (MC)
CD, Tuner, Line, Tape 3x In: 150 mV / 50 kOhm
Number of Outputs:
3x Tape Out: 150 mV / 2.2 kOhm
Headphones (6.3 mm jack, front)
2 pairs of speakers

Specifications
Continuous power (DIN, 1 kHz, 1%)
8 Ohm: 2x 80 W
4 Ohm: 2 x 120 W
Dynamic performance
8 ohms:
4 Ohm: 2 x 150 W
THD: 0.007% (20-20,000 Hz, 70 W, 8 ohms)
Damping factor: 150 (8 ohms, 1 kHz / 20-20,000 Hz)
Frequency response:
Phono MM: 20 - 20,000 Hz (± 0.2 dB)
Phono MC: 20 - 20,000 Hz (± 0.3 dB)
High Level: 1-150000 Hz (+0 / -3 dB)
IHF (shorted, A-weighted)
Phono MM / MC: 94 dB / 76 dB
High level: 110 dB
DIN (Dauerleistung/50 mW)
Phono MM: 74 dB / 65 dB
High level: 92 dB / 68 dB
Bass: yes, ± 8 dB (100 Hz)
Heights: yes, ± 8 dB (10 kHz)
Loudness: Yes, +5 dB (100 Hz), +3 dB (10 kHz) (at -40 dB volume)
High filter: no
Low filter (Subsonic): Yes, 17 Hz (-12 dB / oct)
Mute: No
Direct / Line Straight: yes
