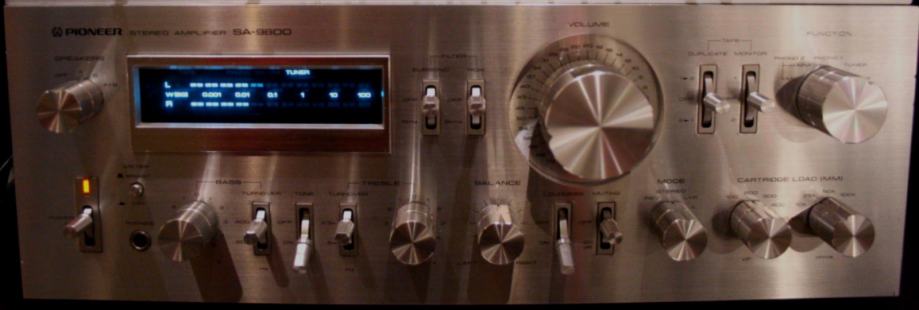

PIONEER SA-9800
- Cijena
- 676,89 €
Šifra oglasa: 9395949
Osnovne informacije
- Lokacija
- Zagrebačka
Opis oglasa
Prodajem legendarno pojačalo Pioneer SA-9800 iz plave serije slijedećih karakteritika:
Power:
2x 100W (4 Ohm, 10Hz...20Khz)
2x 100W (8 Ohm, 10Hz...20Khz)
2x 185W (4 Ohm, 1Khz, DIN)
THD :
less than 0,005% (full power, 1Khz, 8 Ohm, DIN)
Frequency response :
5Hz - 100Khz (+0 / -1dB, AUX input)
S/N ratio :
> 90dB (phono MM)
> 72dB (phono MC)
> 110dB (lines)
Inputs :
Phono 1 (2,5mV / 50kOhm)
Phono 2 MM (2,5mV / 50kOhm)
Phono 2 MC (100mV / 100 Ohm)
Tuner (150mV / 50kOhm)
Aux 1 (150mV / 50kOhm)
Tape 1 & 2 (150mV / 50kOhm)
Cartridge load :
100 Ohm / 10 - 25 - 50 - 100kOhm
100 / 200 / 300 / 400 / 500pF
Phono max. input : 250mV (MM)
10mV (MC)
100Hz Bass control : ± 10dB
Bass turnovers : 200Hz, 400Hz
10Khz Treble control : ± 10dB
Treble turnovers : 2,5Khz, 5Khz
Low filter : 15Hz (12dB/oct.)
High filter : 8Khz (12dB/oct.)
Dimensions: 453 x 155 x 425 mm
Weight: 18.4 kg
Year: 1980-81
The Pioneer SA-9800 has the impressive feature which is the NSA (non switching amplifier), created specially by Pioneer.
This is a type of amplifier that adopts the merits of both class A and class B amplifiers, and it excels in keeping down the heat loss and allows the transistors to operate all the time in the active region.
Power:
2x 100W (4 Ohm, 10Hz...20Khz)
2x 100W (8 Ohm, 10Hz...20Khz)
2x 185W (4 Ohm, 1Khz, DIN)
THD :
less than 0,005% (full power, 1Khz, 8 Ohm, DIN)
Frequency response :
5Hz - 100Khz (+0 / -1dB, AUX input)
S/N ratio :
> 90dB (phono MM)
> 72dB (phono MC)
> 110dB (lines)
Inputs :
Phono 1 (2,5mV / 50kOhm)
Phono 2 MM (2,5mV / 50kOhm)
Phono 2 MC (100mV / 100 Ohm)
Tuner (150mV / 50kOhm)
Aux 1 (150mV / 50kOhm)
Tape 1 & 2 (150mV / 50kOhm)
Cartridge load :
100 Ohm / 10 - 25 - 50 - 100kOhm
100 / 200 / 300 / 400 / 500pF
Phono max. input : 250mV (MM)
10mV (MC)
100Hz Bass control : ± 10dB
Bass turnovers : 200Hz, 400Hz
10Khz Treble control : ± 10dB
Treble turnovers : 2,5Khz, 5Khz
Low filter : 15Hz (12dB/oct.)
High filter : 8Khz (12dB/oct.)
Dimensions: 453 x 155 x 425 mm
Weight: 18.4 kg
Year: 1980-81
The Pioneer SA-9800 has the impressive feature which is the NSA (non switching amplifier), created specially by Pioneer.
This is a type of amplifier that adopts the merits of both class A and class B amplifiers, and it excels in keeping down the heat loss and allows the transistors to operate all the time in the active region.
