Technics RS-AZ6, MADE IN JAPAN, POSLJEDNJA SERIJA,,,,,,,,, SLAV.BROD

-KAO NOVI ,100% ISPRAVAN

-POSLJEDNJA SERIJA,

-JEDINSTVENA KVALITETA

-PRVI VLASNIK,

-DOSLOVCE SAM PRESLUSAO I SNIMIO OKO 10-15 KAZETA

-JER SAM NAKON AZ6 KUPIO CD PLAYER ,I MD YAMAHA

- KORISTENO U KUCNIM UVJETIMA

-MOGUĆA PROBA U SLAVONSKOM BRODU

-U PAKETU DOBIJETE:

-Technics RS-AZ6
- UPUTE NA HRVATSKOM JEZIKU
-AUDIO KABEL 1kom.
--AUDI KAZETE 3kom

***POGLEDAJTE I MOJE DRUGE OGLASE


- KRATKA SPECIFIKACIJA:

3 glave – Amorfni Z glava

Made in JAPAN
Matsushitina Osaka

TPS (radi i sa velikom brzinom premotavanja)
Visoka brzina premotavanja: 50 sek. za 60 minuta kazete

Veliki ATC (auto traka kalibracija) u jednom koraku (jer su tri glave)

- S / N omjer ..

Dolby C neaktivni: 71 dB
Dolby C aktivan: 78 dB

- WRMS 0,07%;

- frekvencija (DIN)
Normalno: 20Hz-18kHz

CrO2: 20Hz-19kHz
Metal: 20Hz-24kHz (bolje od CD playera - 22.050 Hz (44,1 uzorak
stopa))




OPŠIRNA SPECIFIKACIJA:::

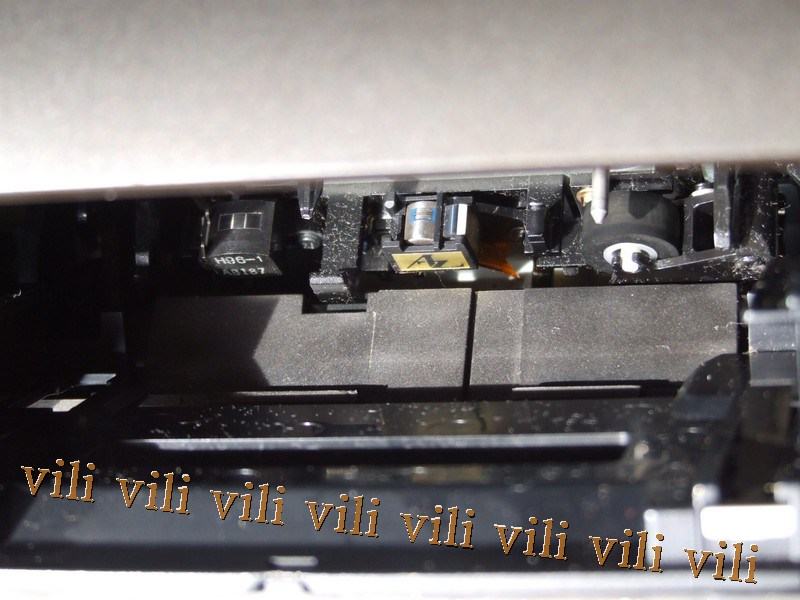

Heads

3 Head Design allows real time tape monitoring

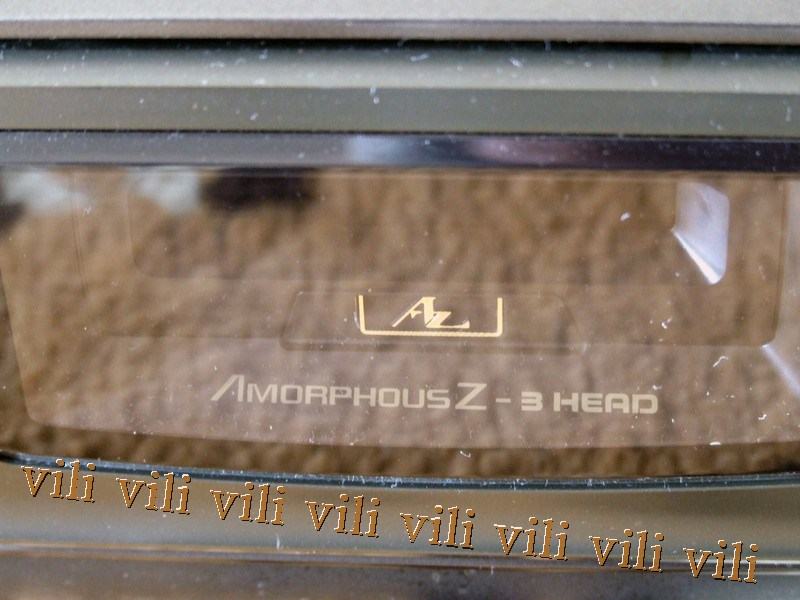

Technics acclaimed "Amorphous-Z" Head technology
- for consistently high audio quality
Noise Reduction

Dolby-B, Dolby-C, and Dolby HX Pro Noise Reduction
MPX Filter
Tape Transport

Front Loading
Auto Shutoff
Single Capstan Transport
Motorized Tape Loading
Full Logic Transport Control
Illuminated Cassette Compartment

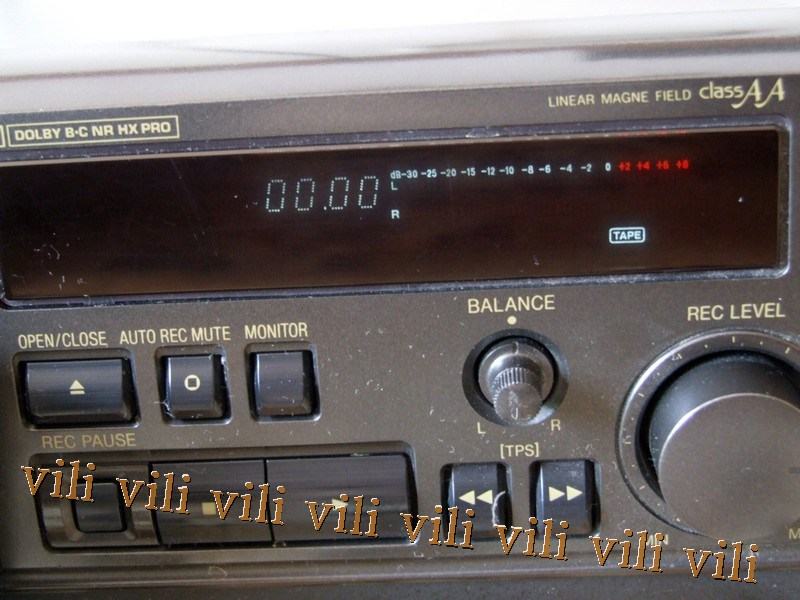

Display

4-Digit Digital Counter
Linear Tape Counter
Digital Peak-Reading Meters
Tape

Automatic Tape Type Selection
Normal, Chrome and Metal Tape Compatibility
Operational Features

Auto-Space
Memory Stop
Music Scan
Real-Time Tape Monitoring
Record Mute
Preamplifier

Record Level Balance Control
Headphone Volume Control
Master Record Level Control
Class AA circuitry for lowest possible distortion
Connectivity

Headphones

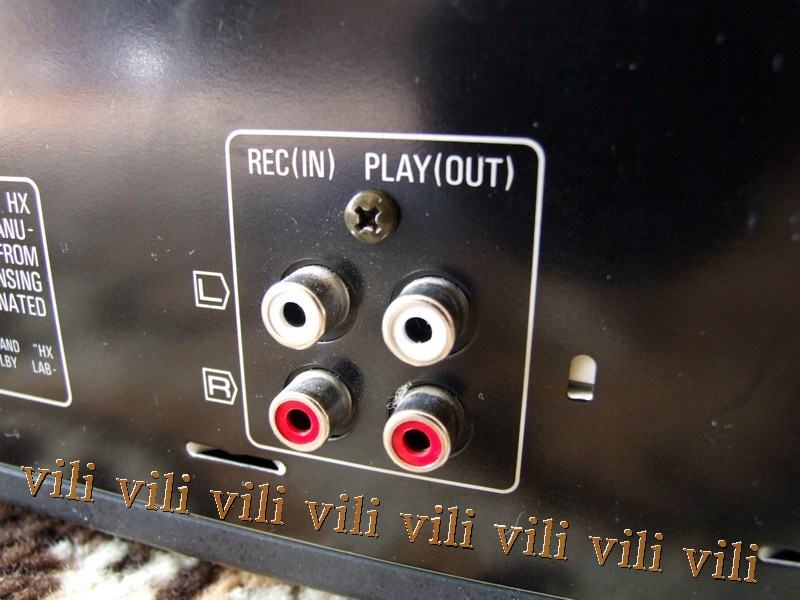

RCA Input/Output Connectors
Wireless Remote Control (with appropriate Technics amplifiers)
Calibration

Auto Bias Calibration
Auto Equalizer Calibration
Auto Level Calibration
Other

Gold-Plated Headphone Jack


Specification


Deck System: Stereo Cassette Deck
Track System: 4 track, 2 channel
Recording System: AC bias
Bias Frequency: 210kHz
Erasing System: AC erase
Heads: Recording Head (Permalloy)
Playback Head (Thin-Film)
Erase Head (Dble Gap Ferrite) x1
x1
x1
Motors: Capstan Drive (DC Servo Motor)
Reel Table Drive (DC Motor) x1
x1
Tape Speed: 4.8cm/sec
Wow and flutter: 0.07% (WRMS) +/- 0.2% DIN
Fast Forward &
Rewind Time: ~ 35 sec with C60 tape
Freq Response:
(Dolby NR Off) TYPE I (NORMAL)
TYPE II (HIGH)
TYPE IV (METAL) 20Hz-17kHz +/-3dB
20Hz-18kHz +/-3dB
20Hz-24kHz +/-3dB
S/N:
(Signal=max record
level TYPE II tape) NR off (A weighted)
Dolby B NR on (A weighted)
Dolby C NR on (A weighted) 62dB
71dB
78dB
Input sensitivity & impedance: REC (IN) 100mV / 47kOhm
Output voltage & impedance: PLAY (OUT)
HEADPHONES (Load impedance 8 - 600 Ohm) 500mV / 500Ohm
90mV / (8 Ohm)
Power Cons: 25W (Standby 1.6W)
Power Supply: AC 50Hz, 230-240V
Dimensions: 430x125x290mm
Weight (unpacked): 3.9kg
