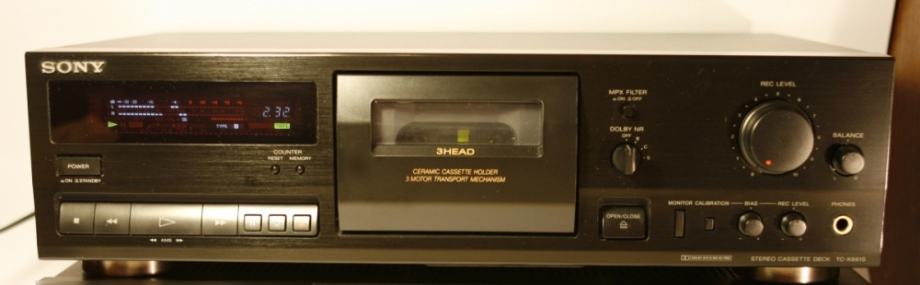

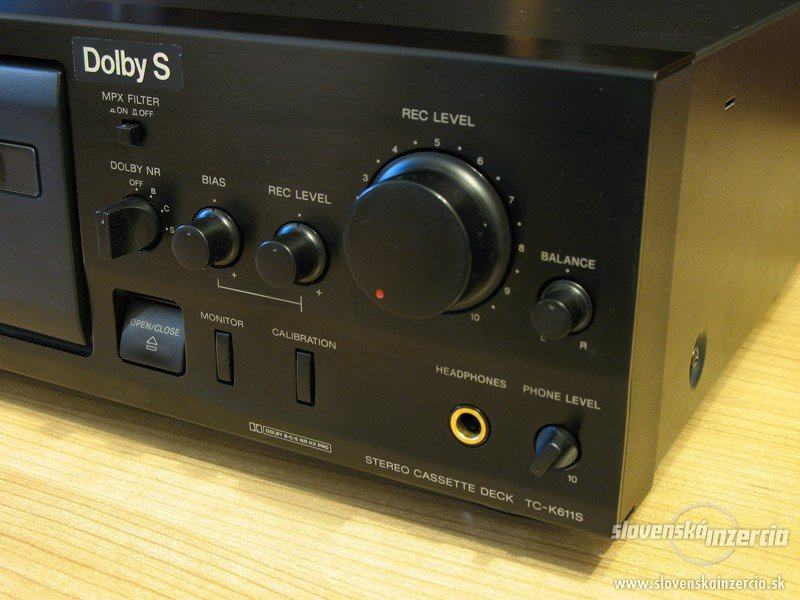

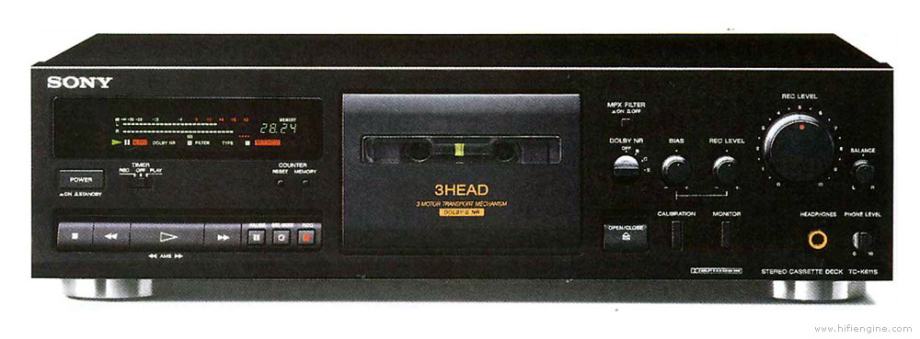

Cassete deck SONY TC-K661S (prodano)

Na prodaju iznimno uščuvan gotovo nekorišten vrhunski deck iz naslova,stanje 9.9-10...
Slike su oglednog i informativnog karaktera ,na zahtjev (putem vibera) šaljem autentične ili video clip.

- 3 Glave
- 3 Motora Transportni Mehanizam
- Keramički Držač Kaseta
- Dolby B
- Dolby C
- Dolby S
- Dolby HX PRO
- Kalibracija (Bias - Level)
- Automatski odabir vrste kasete (Type I, II, IV)
- Memory funkcija
- Digital counter
- MPX Filter
- Izlaz za slušalice sa regulacijom glasnoće


Technical:
*******************************************************
Model Name: Stereo Cassete Deck SONY TC-K661S

Type Transport Mechanism Type: TCM-200V21

Recording system: 4-track 2 channel stereo

Fast winding time: aprox. 90 sec (with SONY C60 cassette)

Bias: AC bias

Heads: Erasing x1 (F&F), Recording x1 (SD), Playback x1 (SD)

Motors: Capstan motor x1 (DC servo), Reel motor x1 (DC motor), Assist motor x1 (DC motor)

Signal-to-noise ratio (Dolby NR off):
Type IV 61dB, Type II 59dB, Type I 57dB

S/N ratio (aproximate values):
with Dolby B NR on: 5dB at 1kHz; 10dB at 5kHz
with Dolby C NR on: 15dB at 500Hz; 20dB at 1kHz
with Dolby S NR on: 10dB at 100Hz; 24dB at 1kHz

Harmonic distorion:
0.4% (Type I, 160nWb/m, 315Hz, 3rd H.D.)
1.5% (Type IV, 250nWb/m, 315Hz, 3rd H.D.)

Frequency response (Dolby NR off):
Type IV (SONY METAL): 20-20.000Hz (±3dB, IEC), 20-16.000Hz [±3dB (-4dB recording)]
Type II (SONY HIGH): 20-18.000Hz (±3dB, IEC)
Type I (SONY NORMAL): 20-17.000Hz (±3dB, IEC)

Wow & filuter:
±0.065% W.Peak (IEC)
0.045% W.RMS (NAB)
±0.12% W.Peak (DIN)

Inputs:
Line inputs (phono jacks), Sensitivity 0.16V, Impedance 47kΩ

Outputs:
Line inputs (phono jacks), Rated output level 0.5V at a load impedance of 47kΩ, load impedance over 10kΩ

Headphones (stereo phone jack), Output level 0-3mW at a load impedance of 32Ω

General:
Power requirements 220-230V AC, 50Hz
Power consumption 21W
Dimensions aprox. 430X123x310mm
Mass 4.4kg
Supplied accessories:
Audio connection cords (2)
