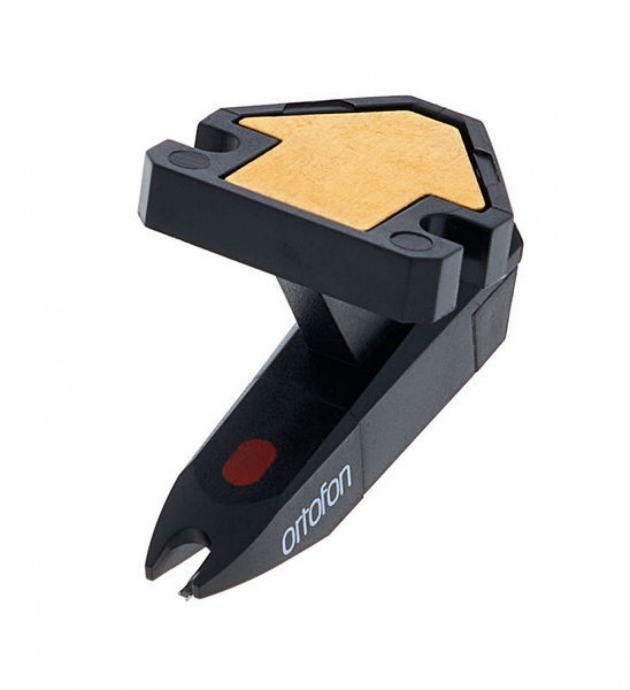

ORTOFON OM 5e Cartridge - zvučnica i igla za gramofon
- Cijena
- 89 €
Šifra oglasa: 35654822
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Savica
- Stanje
- novo
- Interna šifra
- 12486
Opis oglasa
The Ortofon OM 5E was designed as a starter system for light to medium tonearms. It is ideal for the very light ULM tonearms because you can remove the inserted weight. You can add value to the pickup by replacing the needle with a higher quality OM Series. For beginners, the Ortofon OM 5E is the right choice.
Technical details
Type of pickup
MM (moving magnet)
output voltage
4mV *
amplifier connection
Phono MM
Channel deviation at 1 kHz
2dB
Crosstalk at 1kHz
22dB
Crosstalk at 15kHz
15dB
frequency range
20-25.000Hz
frequency response
20-20,000Hz ± 2dB
Scanning capability at 315Hz
65μm **
needle compliance
20 microns / mN
Rec. Tone arm type:
easy *** and moderate
Stylus type
elliptical
rounding
r / R 8 / 18μm
Tracking force range
15-20mN (1.5-2.0g)
Rec. Tracking force
17.5mN (1.75g)
scan
20 degrees
DC resistance
750 ohms
inductance
450mh
Rec. terminator
47kOhms
Rec. Statements capacity
200-600pF
mass
2,5g (5g with additional weight)
particularity
*** without inserted additional weight
suitable for medium tonearms
Replacement needle insertion
Stylus 5E
* at 1000Hz, 5cm / sec. ** with recommended contact force
Technical details
Type of pickup
MM (moving magnet)
output voltage
4mV *
amplifier connection
Phono MM
Channel deviation at 1 kHz
2dB
Crosstalk at 1kHz
22dB
Crosstalk at 15kHz
15dB
frequency range
20-25.000Hz
frequency response
20-20,000Hz ± 2dB
Scanning capability at 315Hz
65μm **
needle compliance
20 microns / mN
Rec. Tone arm type:
easy *** and moderate
Stylus type
elliptical
rounding
r / R 8 / 18μm
Tracking force range
15-20mN (1.5-2.0g)
Rec. Tracking force
17.5mN (1.75g)
scan
20 degrees
DC resistance
750 ohms
inductance
450mh
Rec. terminator
47kOhms
Rec. Statements capacity
200-600pF
mass
2,5g (5g with additional weight)
particularity
*** without inserted additional weight
suitable for medium tonearms
Replacement needle insertion
Stylus 5E
* at 1000Hz, 5cm / sec. ** with recommended contact force
