ORTOFON OM 5E Gramofonska Glava
- Cijena
- 89 €
Šifra oglasa: 44515749
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Savica
- Stanje
- novo
- Interna šifra
- 4001
Opis oglasa

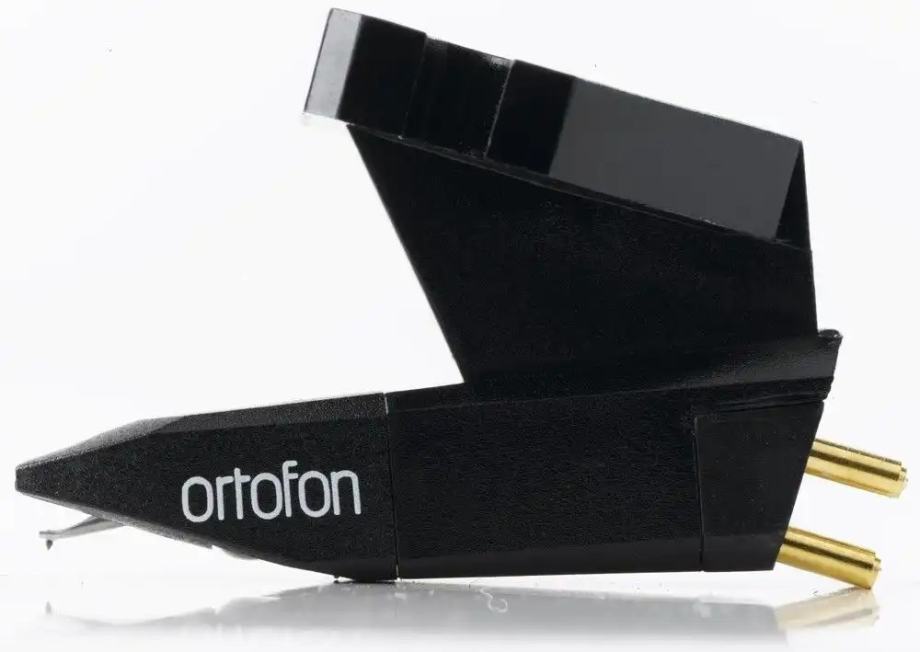

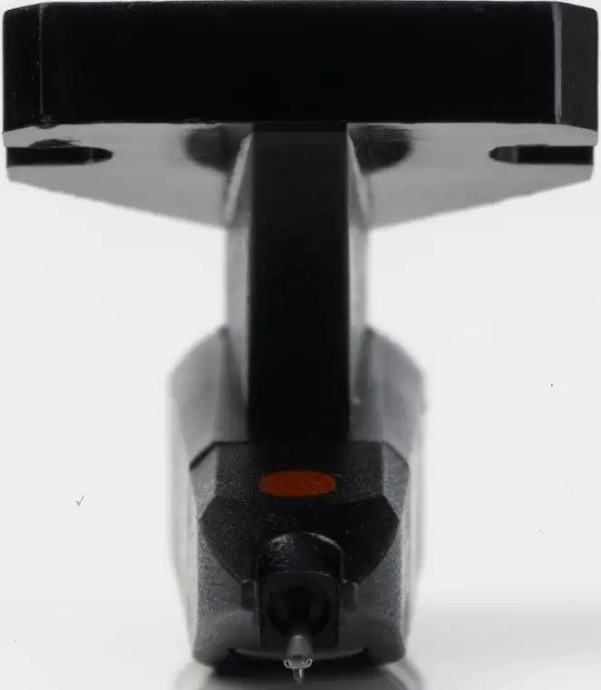

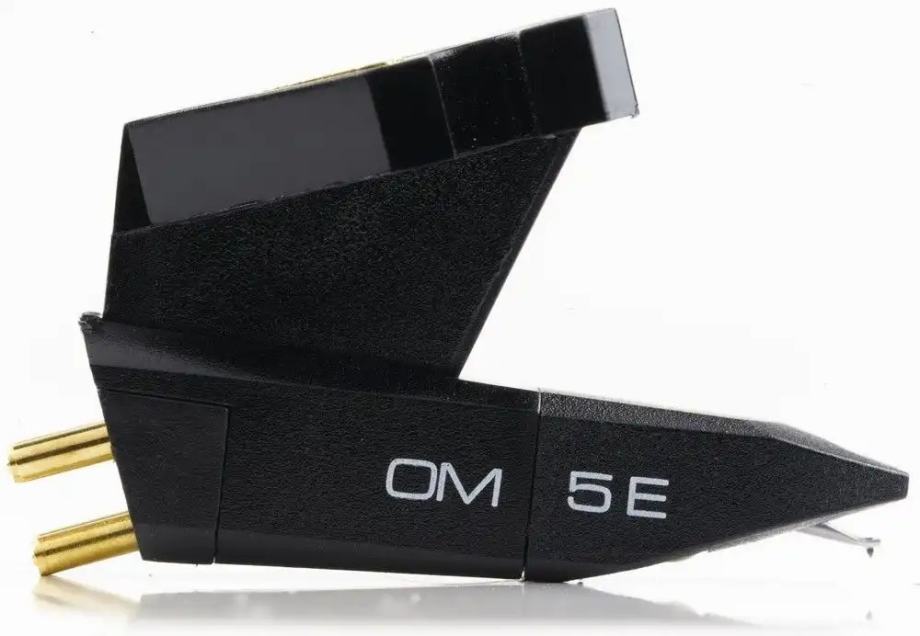

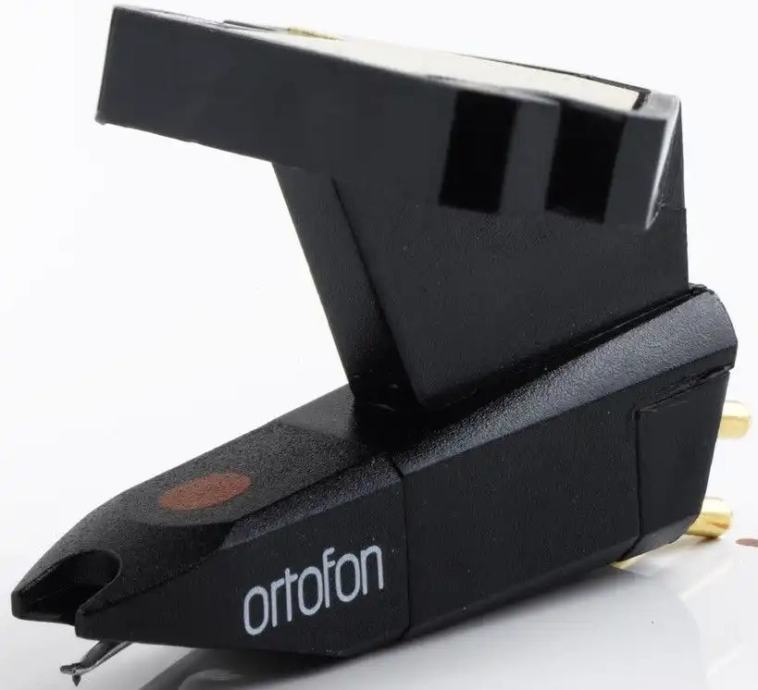

As found on introductory turntables such as the hugely popular Pro-Ject Debut, the Ortofon OM5E is a highly affordable but very competent hi-fi cartridge. Using the same body type as the rest of Ortofon's instantly recognisable OM series, this model is a great accompaniment to your entry-level hi-fi set-up.
Please note, any OM-series replacement stylus will fit in this body, including the Stylus 78.
Output voltage at 1000 Hz, 5cm/sec. 4 mV
Channel balance at 1 kHz 2 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-25.000 Hz
Frequency response 20-20,000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *) 65 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.5-2.0 g (15-20 mN)
Tracking force, recommended 1.75 g (17.5 mN)
Tracking angle 20°
Internal impedance, DC resistance 750 Ohm
Internal inductance 450 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 200-600 pF
Cartridge colour, body/stylus Black/Black
Cartridge weight 5 g
Replacement stylus unit Stylus 5 E
Please note, any OM-series replacement stylus will fit in this body, including the Stylus 78.
Output voltage at 1000 Hz, 5cm/sec. 4 mV
Channel balance at 1 kHz 2 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-25.000 Hz
Frequency response 20-20,000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *) 65 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.5-2.0 g (15-20 mN)
Tracking force, recommended 1.75 g (17.5 mN)
Tracking angle 20°
Internal impedance, DC resistance 750 Ohm
Internal inductance 450 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 200-600 pF
Cartridge colour, body/stylus Black/Black
Cartridge weight 5 g
Replacement stylus unit Stylus 5 E
