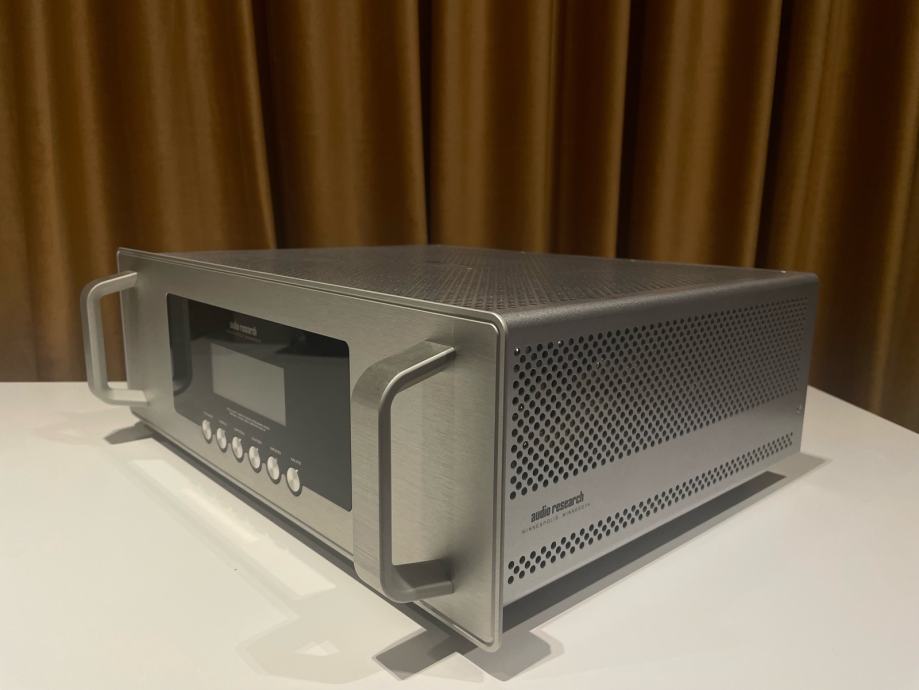

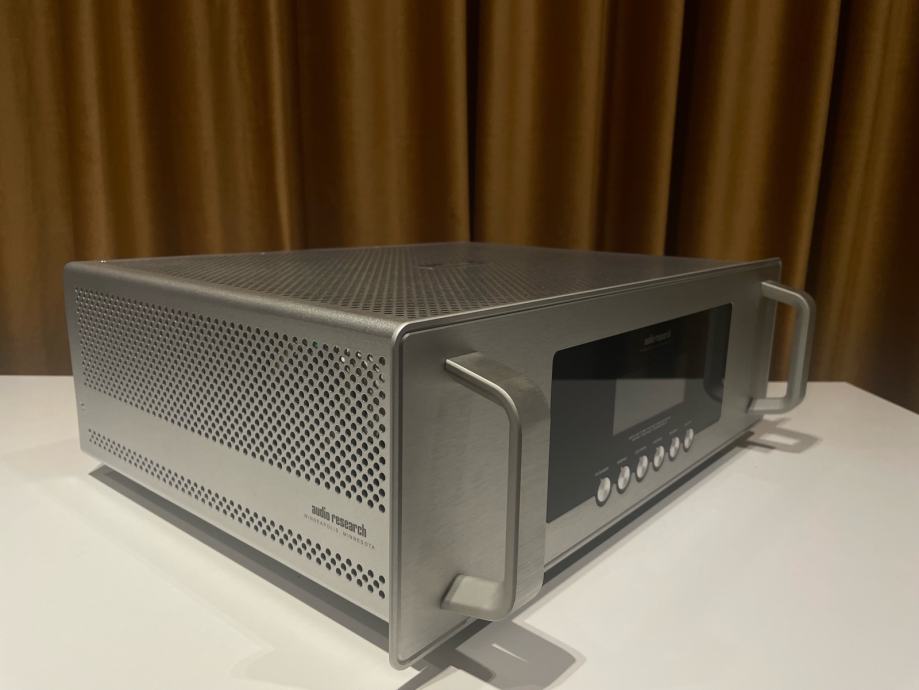

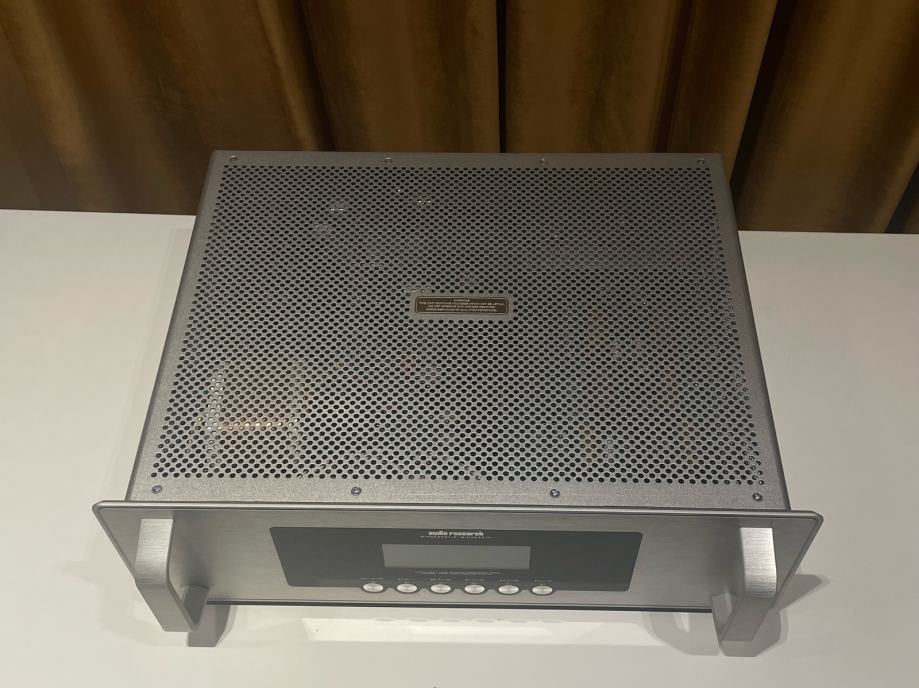

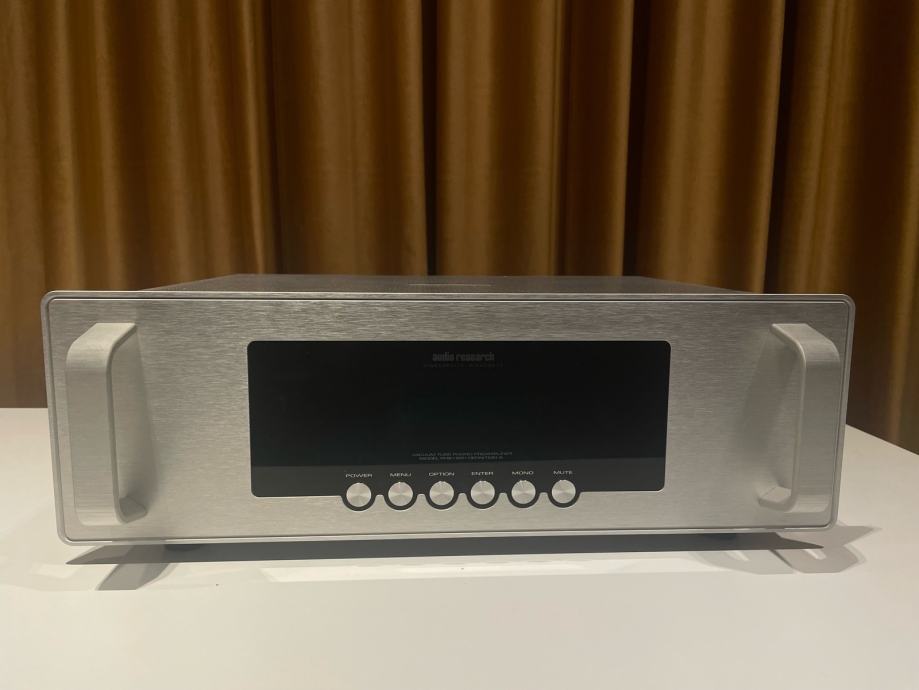

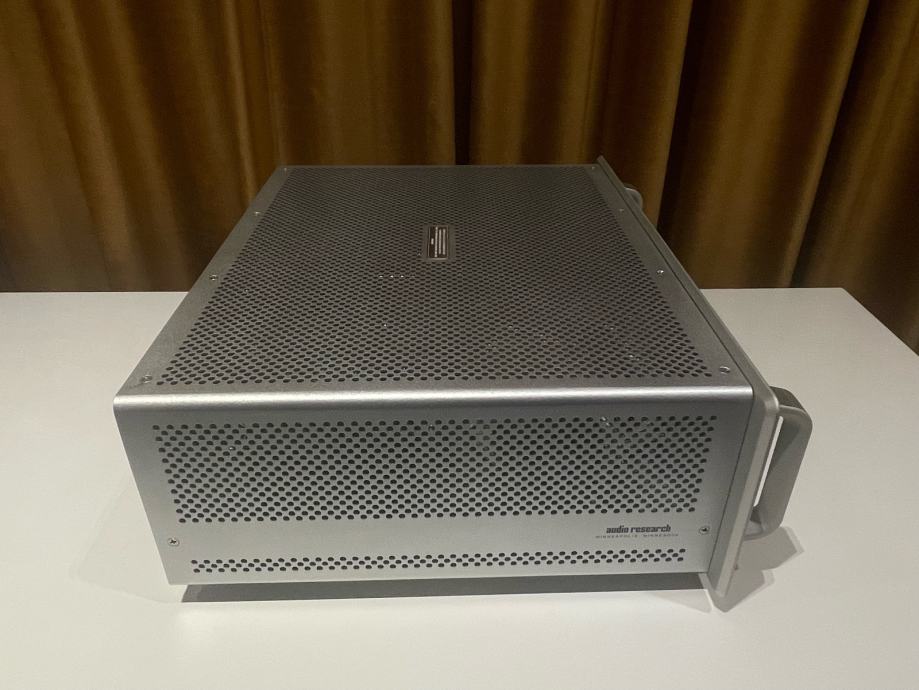

Audio Research PH9 Phono Stage
- Cijena
- 4.500 €
Šifra oglasa: 43606160
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Vrbik
- Stanje
- rabljeno
Opis oglasa
Audio Research PH9 Phono Stage
Specifications:
FREQUENCY RESPONSE:
±.2 dB of RIAA, 5 Hz to 20kHz; 1 dB points below 0.3Hz and above 80 kHz.
DISTORTION:
Less than .015% at 3V RMS 1kHz output.
GAIN:
55 dB at 1 kHz
INPUT IMPEDANCE:
Selectable loads: 47k, 1000, 500, 200, 100 Ohms.
OUTPUT IMPEDANCE:
200 ohms. Recommended load 50k-100k Ohms and 100 pF. (10k Ohms
minimum and 2000 pF maximum).
OUTPUT POLARITY:
Non-inverting.
MAXIMUM INPUT:
80 mV RMS at 1kHz.
RATED OUTPUTS
0.5V RMS 10 Hz to 60 kHz, into 100K ohm load (maximum balanced output
capability is 0.46V RMS at less than 0.5% THD at 1kHz).
CONTROLS
6 Push Buttons: Power, Menu, Option, Enter, Input, Mute.
POWER SUPPLIES:
Electronically regulated low and high voltage supplies. Automatic 2 minute
warm-up/brown-out mute. Line regulation better than .01%.
NOISE:
77 dB, shorted inputs.
TUBE COMPLEMENT:
(3)-6H30P dual triodes, plus (1 each) 6550WE and 6H30P in power supply.
POWER REQUIREMENTS:
100-125VAC 60Hz (200-250VAC 50/60Hz) 120 watts maximum.
Standby: 2 watts.
DIMENSIONS:
Width: 48 cm
Height: 13.7 cm
Depth: 34.8 cm
Handles extend : 4 cm forward of the front panel.
Weight: 7 kg) Net; 10.7 kg Shipping.
Specifications:
FREQUENCY RESPONSE:
±.2 dB of RIAA, 5 Hz to 20kHz; 1 dB points below 0.3Hz and above 80 kHz.
DISTORTION:
Less than .015% at 3V RMS 1kHz output.
GAIN:
55 dB at 1 kHz
INPUT IMPEDANCE:
Selectable loads: 47k, 1000, 500, 200, 100 Ohms.
OUTPUT IMPEDANCE:
200 ohms. Recommended load 50k-100k Ohms and 100 pF. (10k Ohms
minimum and 2000 pF maximum).
OUTPUT POLARITY:
Non-inverting.
MAXIMUM INPUT:
80 mV RMS at 1kHz.
RATED OUTPUTS
0.5V RMS 10 Hz to 60 kHz, into 100K ohm load (maximum balanced output
capability is 0.46V RMS at less than 0.5% THD at 1kHz).
CONTROLS
6 Push Buttons: Power, Menu, Option, Enter, Input, Mute.
POWER SUPPLIES:
Electronically regulated low and high voltage supplies. Automatic 2 minute
warm-up/brown-out mute. Line regulation better than .01%.
NOISE:
77 dB, shorted inputs.
TUBE COMPLEMENT:
(3)-6H30P dual triodes, plus (1 each) 6550WE and 6H30P in power supply.
POWER REQUIREMENTS:
100-125VAC 60Hz (200-250VAC 50/60Hz) 120 watts maximum.
Standby: 2 watts.
DIMENSIONS:
Width: 48 cm
Height: 13.7 cm
Depth: 34.8 cm
Handles extend : 4 cm forward of the front panel.
Weight: 7 kg) Net; 10.7 kg Shipping.
