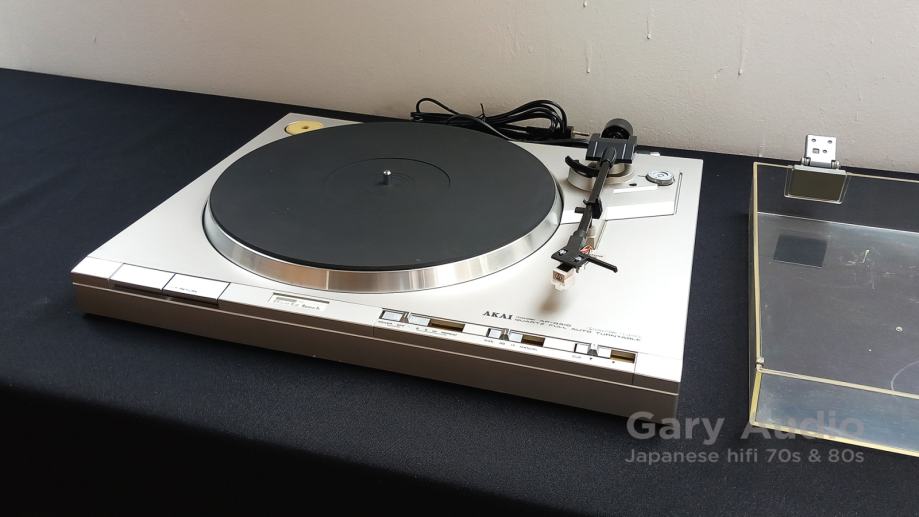

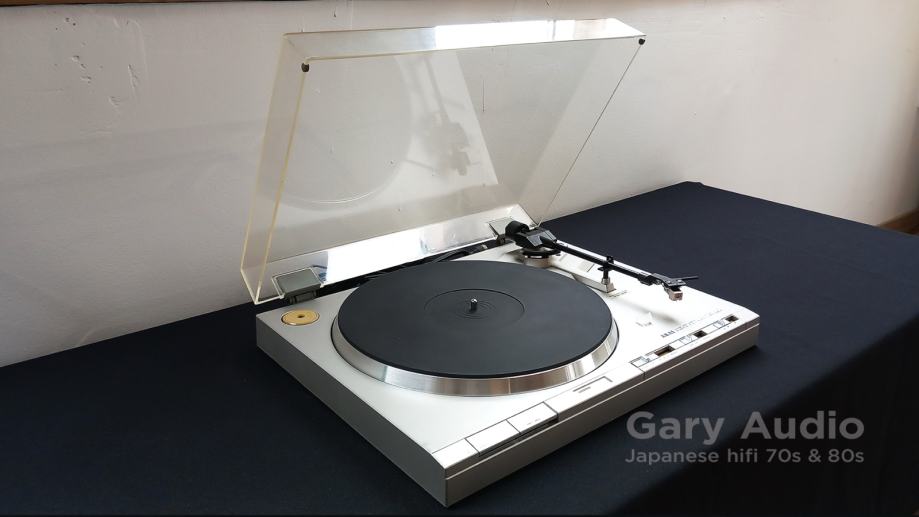

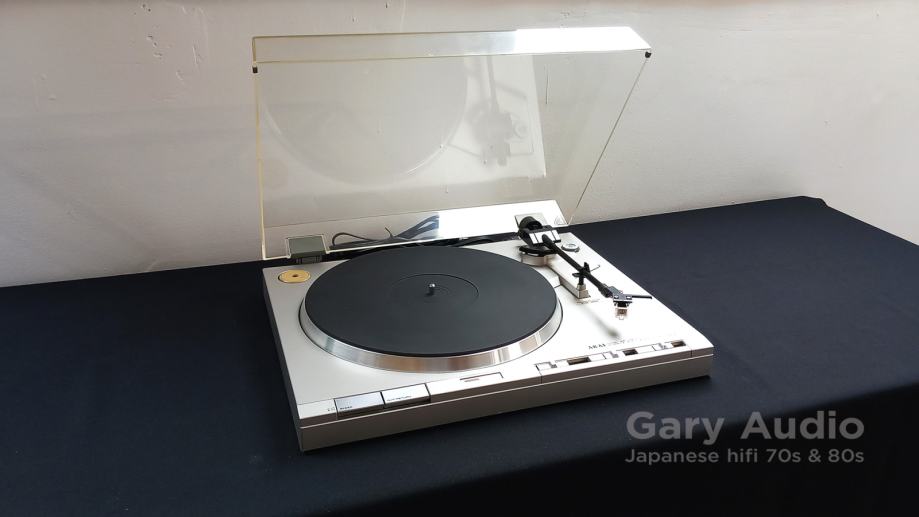

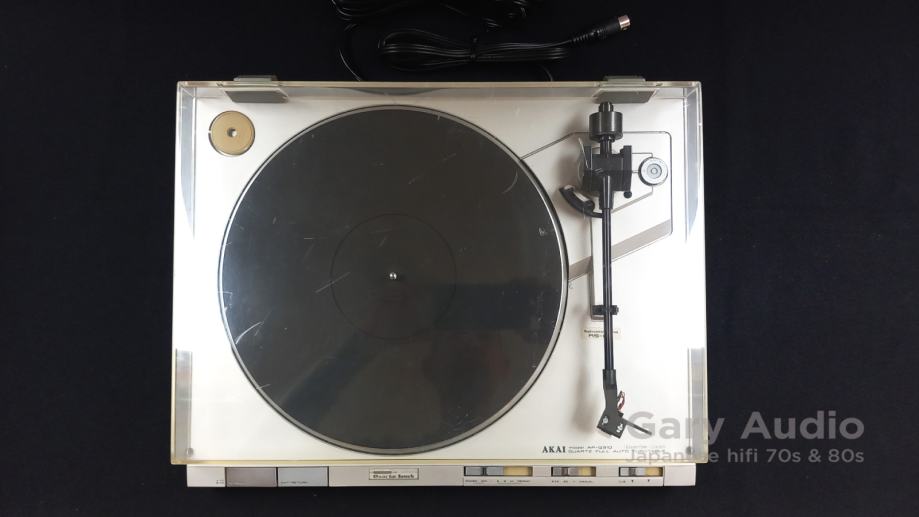

Akai AP-Q310 Direct-Drive Turntable AP Q 310 Japan 1982

Ovo je jednostavan i pristupačan gramofon s direktnim pogonom, potpuno automatski, proizveden između 1982. i 1984. godine od strane tvrtke Akai. Iako je jeftin, ima izvrsne značajke i zvuči vrlo dobro.

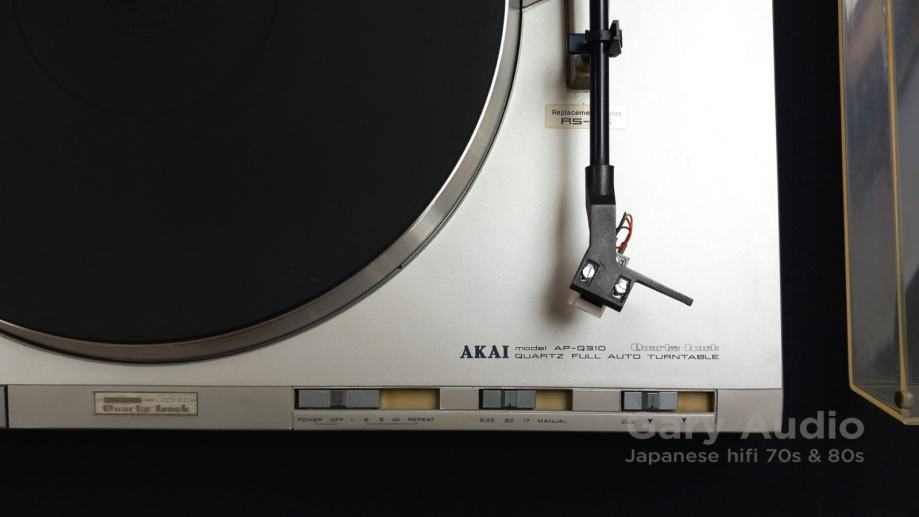

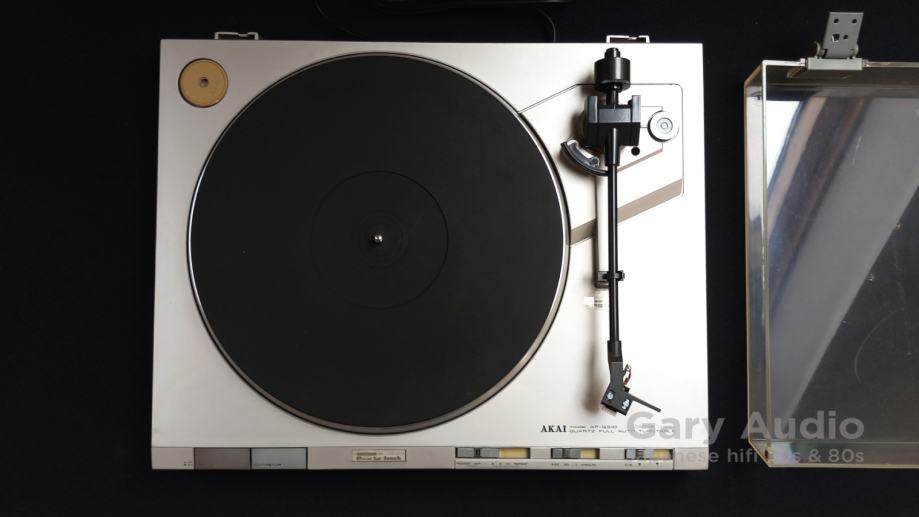

Tanak, jednostavan i elegantan dizajn. Ravna ručica, lagana rješenja. Sustav direktnog pogona pruža stabilne performanse prilikom sviranja. Možete postaviti način reprodukcije na jednu reprodukciju, ponavljanje dva puta, ponavljanje tri puta i beskonačnu reprodukciju, a gramofon mehanički prati redoslijed.
Ovaj gramofon opremljen je potpuno novom zvučnicom i iglom Audio-Technica AT-3600. AP-Q310 idealan je za početnike u sviranju vinila i za svakodnevno slušanje glazbe. Jednostavan za korištenje i izvrsne performanse.

Dostava iz Dunakeszija, Mađarska. Također dostupno osobno u Rijeci.

Specifications:
Manufacturer: Akai Electric Co., Ltd.; Tokyo
Model: AP-Q 310
Type: Turntable
Years of manufacture: 1982
Made in: Japan
Color: Silver
Type: Fully automatic
Drive method: Direct drive
Platter: 1kg
Speeds: 33.33 and 45rpm
Wow and flutter: 0.08%
Rumble: -70dB

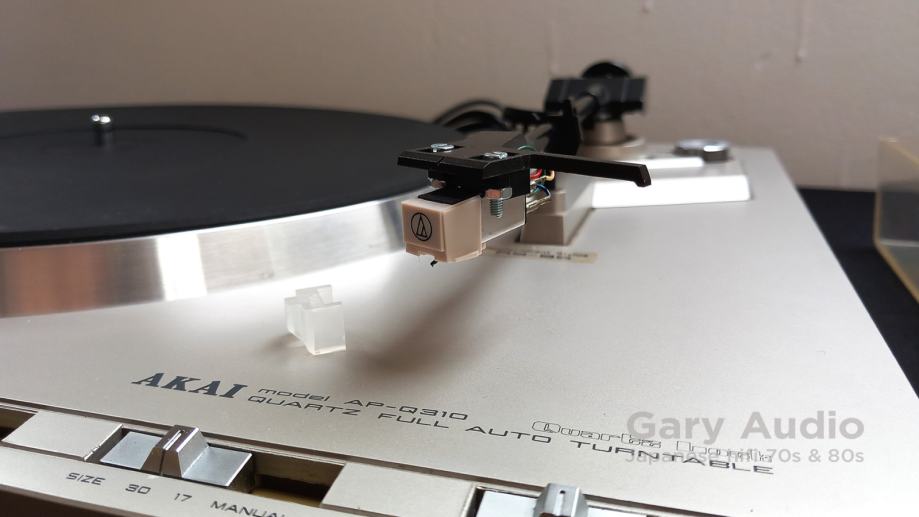

Cartridge: Audio-Technica AT-3600
Power consumption: 6W

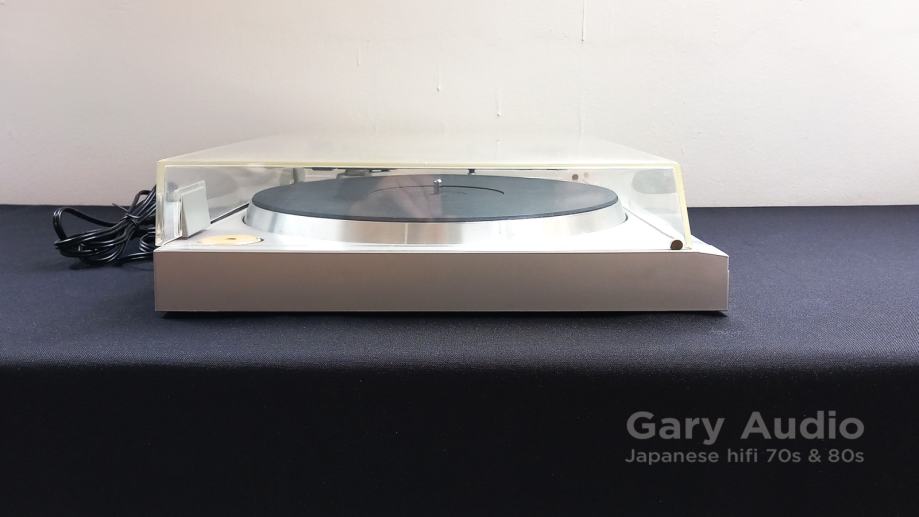

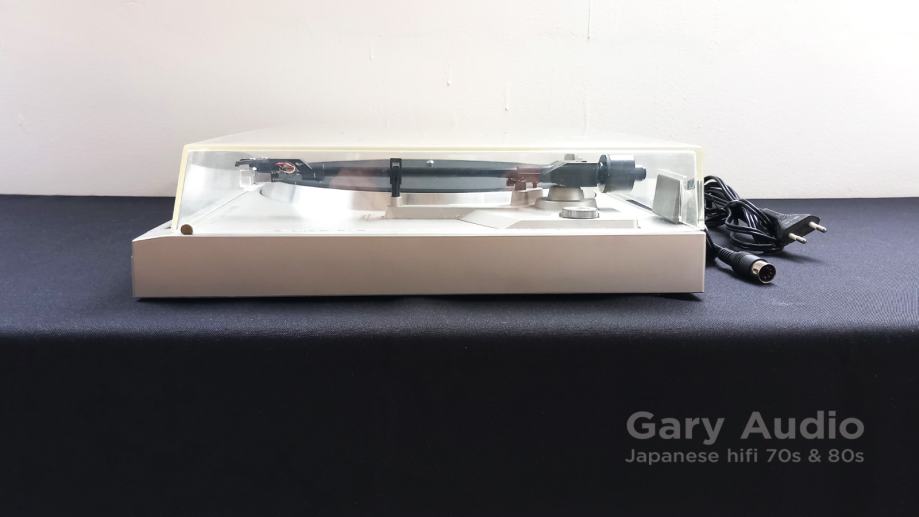

Dimensions: 440 (W) x 98 (H) x 359 (D) mm
Weight: 5.4 kg

Technical data:

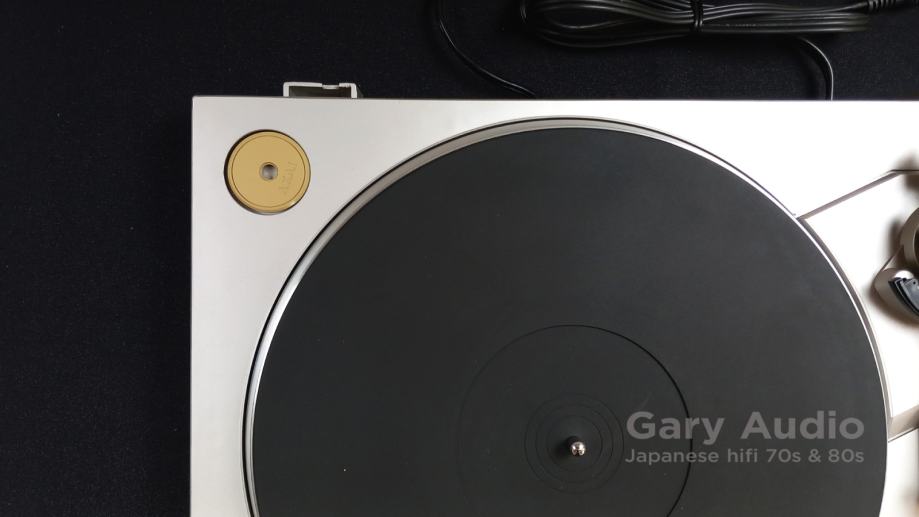

Turntable: Aluminum alloy die cast
Drive system & mechanism: Quartz Locked Direct Drive, Fully Automatic
Motor: DC servo motor
Speed: 33-1/3 rpm, 45 rpm
Speed deviation: ±0.002%
Wow & flutter: 0.045 % (DIN), 0.03% (JIS)
Rumble: 48 dB (DIN A), 73 dB (DIN B)

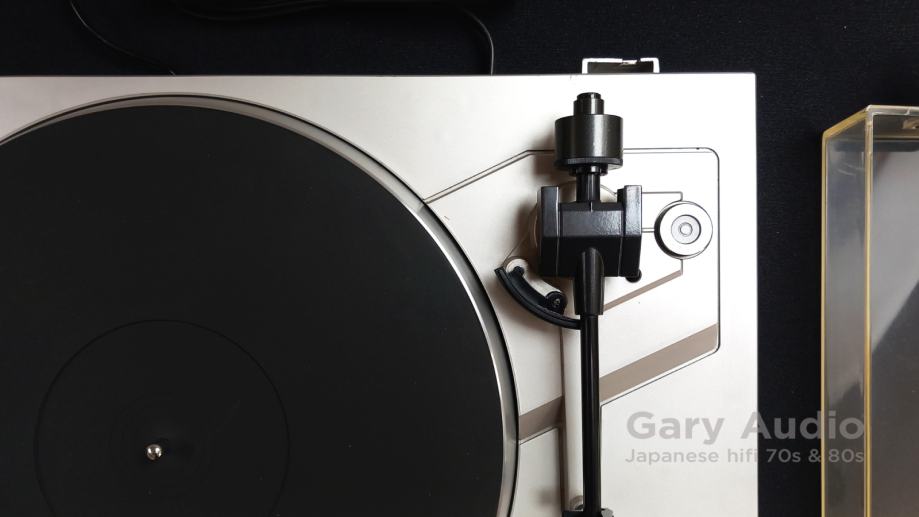

Tone arm: Static Balanced Type
Effective arm length: 220 mm
Stylus pressure adjustment range: 0 to 2.5 grams
Applicable cartridge weight: 3 to 8 grams
Arm lifter: Oil damped
Overhang: 17.5 mm
Offset angle: 24"
Horizontal tracking error angle: +2'40 (Outside) -1'(Inside)
Cartridge: VM (Dual Magnet) type
Optimal stylus pressure: 2 grams
Output voltage: 5 mV (DIN)
Channel separation: 20 dB
Frequency response: 20 to 20,000 Hz
cartridge load impedance: 47 K Ohms
Static vertical compliance: 16 x 10 cm/dyne
Static horizontal compliance: 12.5 x 10cm/dyne
Dynamic vertical compliance: 4.5 x 10 cm/dyne
Dynamic horizontal compliance: 4.5 x 10 cm/dyne

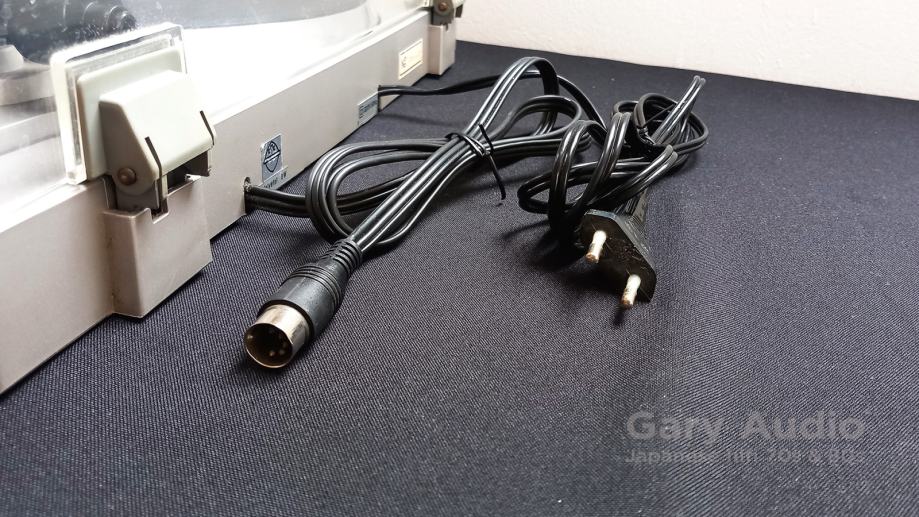

Power requirements: 220-240V, 50/60 Hz


Special Features
Anti-skating
Repeat
Auto-Stop
