AMD Radeon™ R9 280 Black Edition - XFX

General
Interface Type
PCI Express 3.0 x16
Max Resolution
2560 x 1600
Max Monitors Supported
3

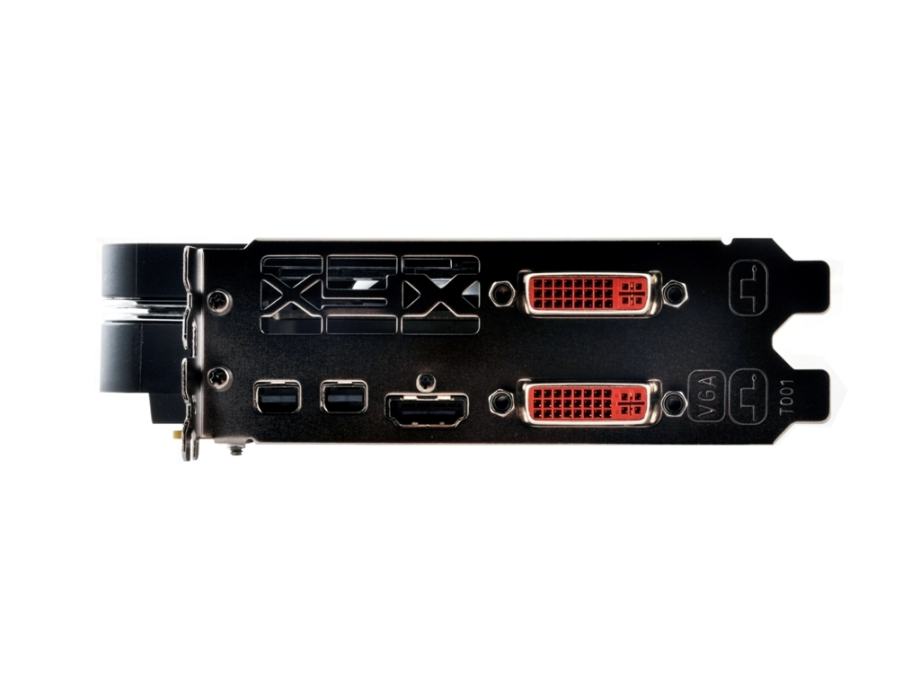

Interfaces
DVI-I (dual link)
HDMI
DVI-D (Single-Link)
2 x Mini DisplayPort
VGA - with adapter
Graphics Engine
AMD Radeon R9 280
Max Monitors Supported
3
Bus Type
PCI Express 3.0 x16
API Supported
DirectCompute 11, OpenGL 4.2, OpenCL 1.2, Microsoft C++ AMP, DirectX 11.2
Core Clock
1000 MHz
Stream Processors
1792
Max Resolution Details
DVI: 2560 x 1600 / DisplayPort: 4096 x 2160 / HDMI: 4096 x 2160 / VGA: 2048 x 1536
Manufacturer
XFX Inc

Memory
Size
3 GB
Effective Clock Speed
5.2 Hz
Bus Width
384-bit
Technology
GDDR5 SDRAM

Miscellaneous
Included Video Adapter Accessories
6 pin to 4 pin power cable, 8 pin to 4 pin power cable, PSU Cross Marketing Insert
Software Included
Drivers & Utilities, AMD Catalyst Control Center

Video Output
Type
graphics card
Interface Type
PCI Express 3.0 x16
Graphics Processor Manufacturer
AMD
Graphics Processor
AMD Radeon R9 280
Clock Speed
1000 MHz
Stream Processors Qty
1792
Max Monitors Supported
3
Max External Resolution
2560 x 1600
Max Resolution Details
DVI: 2560 x 1600 / DisplayPort: 4096 x 2160 / HDMI: 4096 x 2160 / VGA: 2048 x 1536
API Supported
DirectCompute 11, DirectX 11.2, Microsoft C++ AMP, OpenCL 1.2, OpenGL 4.2
Output Ports (for SD)
2 x DVI, 2 x Mini DisplayPort, HDMI
Supported Video Signal
DVI, DisplayPort, HDMI
HDCP compatible
yes
Video Adapter Features
AMD App Acceleration 2, AMD Eyefinity Technology, ATI CrossFire Technology, Advanced Video Color Correction, Intelligent TDP management technology, Morphological Anti-Aliasing (MLAA), Video Codec Engine (VCE), cutting-edge integrated display support, dual slot heat sink, AMD HD Media Accelerator, AMD HD3D Technology, AMD Hybrid Graphics Technology, AMD PowerPlay technology, AMD PowerTune technology, AMD Stream technology, AMD Unified Video Decoder (UVD), AMD ZeroCore Power technology

Video
Graphics Processor
AMD Radeon R9 280

Software / System Requirements
Peripheral / Interface Devices
6-pin + 8-pin power connectors

System Requirements
Additional Requirements
6-pin + 8-pin power connectors

Header
Brand
XFX
Product Line
XFX
Model
Radeon R9 280
Edition
Black Edition
Packaged Quantity
1
Compatibility
PC

Video Memory
Technology
GDDR5 SDRAM
Installed Size
3 GB
Memory Clock Speed
5.2 GHz
Bus Width
384-bit

Interfaces
Type
DVI-D (Single-Link), DVI-I (dual link), HDMI, Mini DisplayPort, VGA
Qty
2
Location
with adapter

Cable Details
Type
CrossFire internal bridge
Included Qty
1

Dimensions & Weight
Width
1.7 in
Depth
11.6 in
Height
5.6 in

Software
Type
AMD Catalyst Control Center, Drivers & Utilities

General
Manufacturer
XFX Inc
