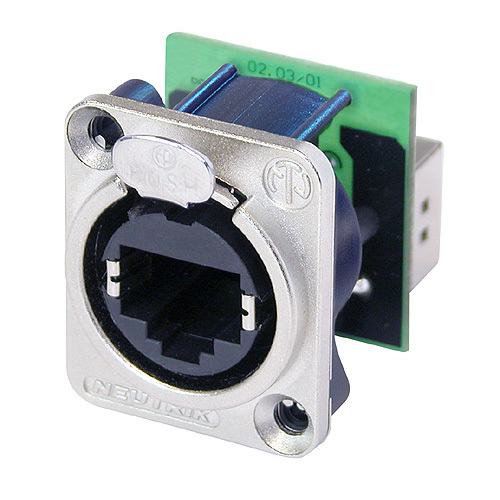

Neutrik NE8FDP šasijski konektor

Neutrik NE8FDP

MPC: 18,50€, cijena za gotovinu/virman: 16,00€


RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market


Technical information:

Product:
Title: NE8FDP
Gender: female

Electrical:
Contact resistance: < 10 mΩ
Dielectric strength: 1 kVdc
Frequency range: 1 - 100 MHz
Insulation resistance: > 0.5 GΩ
Rated current per contact: 1,5 A
Rated voltage: < 50 V
Transmission performance: CAT 5e
Standard compliance: TIA/EIA 586B, IEC11801

Mechanical :
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 4 mm 0.16'
Wiring: Feedthrough
Locking device: Latch lock
Chassis shape: D

Material:
Contact plating: 0.2 µm Au over Ni plating
Contacts: Bronze (CuSn8)
Insert: PBTP 15 % GR
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel

Environmental:
Flammability: UL 94 V-0
Temperature range: -30 °C to +80 °C
