XDS100V2 DSP emulator - JTAG

Prodajem XDS100V2 DSP emulator za programiranje računalnih komponenti - JTAG

Stanje: NOVO - NEKORIŠTENO

Mogućnost preuzimanja osobno u Zagrebu i Požegi!
Na ostale lokacije šaljem poštom!


Description:
The XDS100v2 USB JTAG Emulator is the second release of the XDS100 JTAG emulator technology supporting debug of a variety of TI devices. It allows the user direct access between the host computer and the DSP through a 14-pin JTAG header. It is compatible with Code Composer Studio (CCS) and compatible with XP/Vista/Win7/Win8/Win10



Features:
- Support for the following processor cores: TMS320C28x, TMS320C54x, TMS320C55x, TMS320C64x+, TMS320C674x, ARM 9, ARM Cortex R4, and ARM Cortex A8.
- Debugging function(connect / disconnect, read / write memory, read the register, load the program, run, stop steps to support the breakpoint debugging, real-time mode)
- Supports On-Chip Flash Programmer(e.g. C2000)
- Support targets with 14-pin TI JTAG connector as used by Texas Instruments embedded processors.
- Support for USB2.0 High Speed (480 Mbit/s)
- Support for Code Composer Studio v4 and newer (Does not support Code Composer Studio v3.3)
- Support CCS5.2
- Support for power-off test and Adaptive Clock
- Support for Windows XP/Vista/Win7/Win8/Win10


Package Includes:

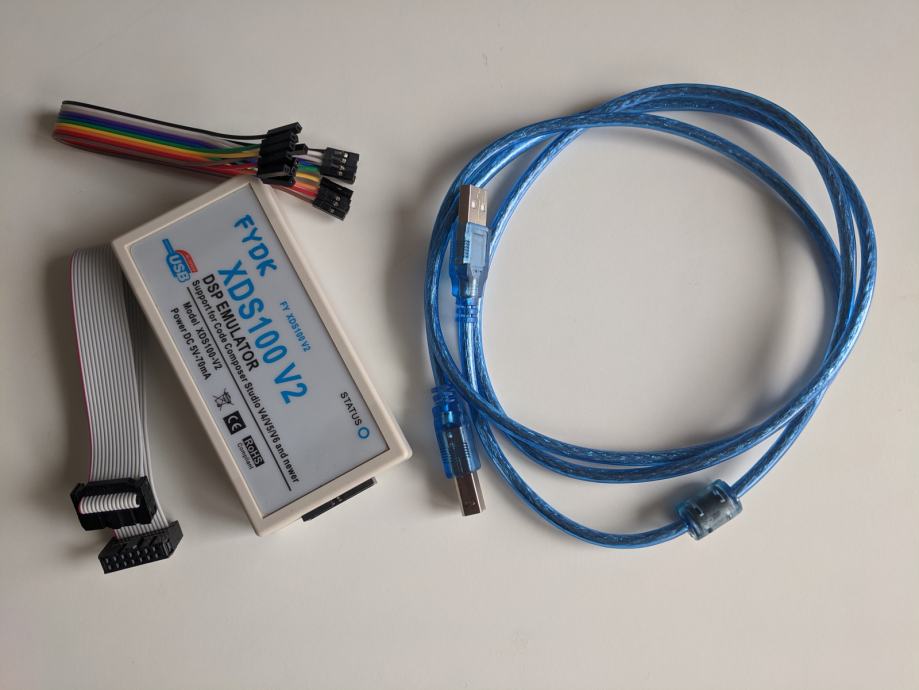

1 x XDS100 V2 Emulator
1 x High-end USB2.0 High-speed Cable

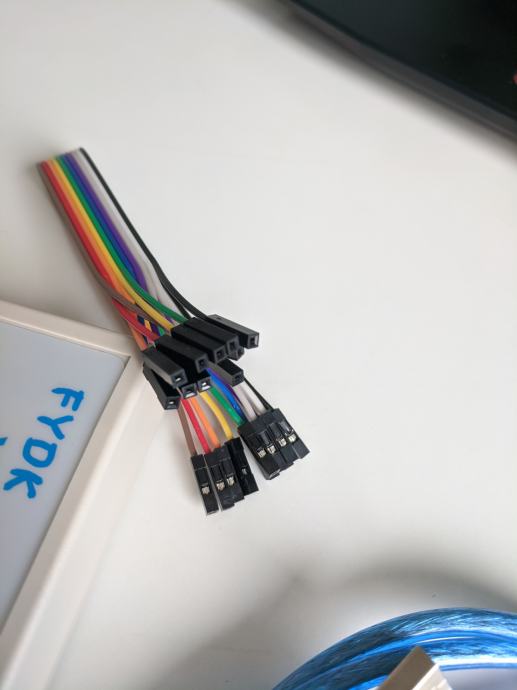

1 x High-grade Imported 14-pin JTAG Cable


_________________
Tags: JTAG, programiranje, flashiranje, hakiranje, USB, 14-pin, 14pin, XDS, emulator
