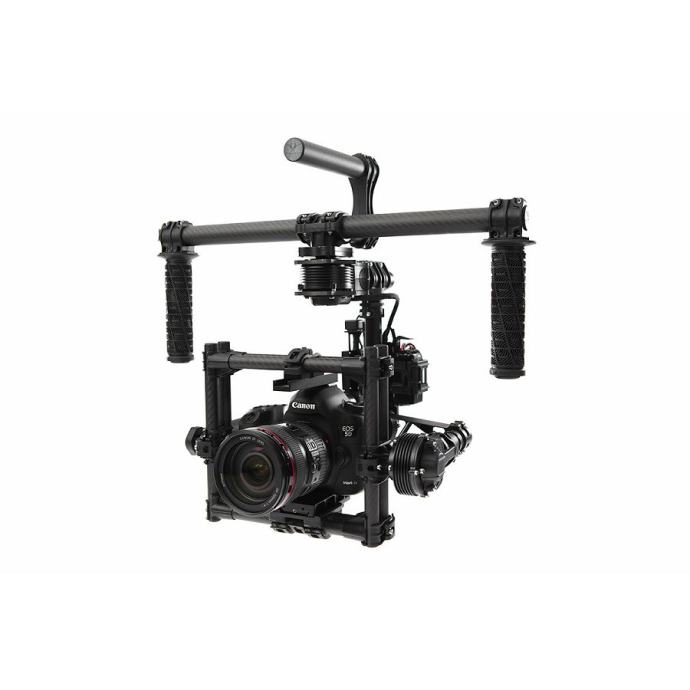

Freefly MoVI M5 3-Axis Gimbal Stabilizer Adventure Edition

Freefly MoVI M5 3-Axis Gimbal Stabilizer Adventure Edition

Compact Design, Ultimate Camera Movement
Bring big budget moves to your DSLR productions. The compact form factor and lightweight nature of the MoVI M5 3-axis stabilizer continue to push the boundaries of what’s possible with handheld camera movement. From weddings to indie features, the M5 gimbal will raise the production value on any project out there.

MoVI M5 Features

Enclosed camera cage for maximum rigidity and shot stability
Improved adjustable camera plate
Fully-protected wiring to the brushless motors
Simplified fully tool-less gimbal balancing
Inverted mode for more comfortable eye level camera angle
Quick release top handle to allow for rapid adjustment
Lightweight gimbal construction
Proprietary 3-axis stabilization software

FREEFLY MoVI M5 3-Axis Gimbal Stabilizer with Travel Case

The MoVI M5 3-Axis Gimbal Stabilizer with Travel Case from Freefly is exclusively available as part of the MoVI M5 Adventure Edition bundle and includes the MoVI M5 hand-held stabilizer and a Pelican hard case with a custom-cut foam interior designed to fit the stabilizer and the components of the Adventure Kit.

Supporting loads up to 5 lb, the MoVI M5 provides camera stabilization using three motors and an IMU (inertial measurement unit) to detect and counteract unwanted movement along three axes: pan, tilt, and roll. In particular, compensating for handshake or vehicle-induced vibration and reducing translation. The included quick release system consists of one female Toad in the Hole Quick Release Adapter for the MoVI and a Male Toad Adapter to be attached to your support device. A second Male Toad Adapter is also included in this kit.

The system supports single- or dual-operator control. In single user (Majestic) mode, the system's software intelligently differentiates unwanted shake or vibration from intentional movement, such as panning, while keeping the horizon level. Alternatively, you can have a dedicated operator using an optional remote controller/transmitter who is in charge of camera pan, tilt, and roll. In this configuration the camera will always point where the operator of the transmitter tells it to, independent of how the rig operator moves.

As with sled-style stabilizers, the camera should be balanced on the MoVI to ensure best performance. Once balanced, the MoVI will need to be linked via Bluetooth to an Android mobile device or a computer or tablet running Windows to finalize the configuration process.

Two lithium-polymer batteries and a charger are included, as well as a top handle for low-angle shooting or transporting the assembled rig on set. The MoVI M5 and its included accessories can be safely stored and transported inside the included Travel Case, which features a Pelican-made hard-shell exterior and custom-cut foam interior.

Supported Cameras
For DSLRs such as the Canon EOS-5D Mark III, Nikon D800, and Panasonic GH4 as well as select compact cinema cameras weighting up to 5 pounds total, including the lens. Large DSLRs such as the Canon EOS-1DC will not fit and typically exceed the specified weight limit
Majestic Mode
For single-operator use. In this mode the gimbal provides stabilization without counteracting operator-directed camera movements--the camera goes where you point the handles. This mode is ideal for accurate framing in tight situations
Drift Free Horizon
The gimbal uses a GPS-assisted IMU that when used outdoors with available satellite signals is able to minimize drift even when under acceleration--such as where the camera is mounted on a UAV or vehicle
Live Wireless Tuning and Graphing
A real-time Bluetooth wireless link is provided by the gimbal which transmits performance data for live adjustment of any of the gimbal parameters using software for Windows or Android
Silent Drive
The motors driving the gimbal have been designed to operate as quietly as possible to ensure you will be able to record sound without picking up any unwanted noise
Translation Compensation
Making hundreds of adjustments per second, the software works to counteract translation--the bobbing up and down effect while running--when tracking a moving subject moving at high speed. In this situation translation may be unavoidable, but at least the subject will remain in-frame
Shot Recorder
Keeps a record of the camera position (where GPS is available), height, camera pan, tilt, and roll so that the shot can be recreated later or to help Visual Effects align the live action shot with other elements in a CG composite
Third-Party Mounting
Using separately available mounting hardware it is possible to mount the MOVI on cranes, jibs, Steadicams and similar vest-supported stabilizers (where it corrects for angular error), and other camera support hardware. It has also been verified to work on an Easyrig
Remote Firmware Updatable
You can upgrade the gimbal to new software features as they are released by Freefly yourself, without having to send the device in for a factory update
Custom Direct Drive Motors
The MOVI system uses motors that were custom made for the gimbal rather than re-purposing off-the-shelf parts
M5 Travel Case
Pelican hard shell case
Custom-cut foam interior
Retractable trolley
Shock-absorbing interior
Watertight, airtight, and dustproof
Chemical resistant and corrosion proof

MoVI M5 Travel Case

Designed with the professional filmmaker in mind, the M5 Travel Case was made to guard against the hazards on and off set. Utilizing an industry-standard Pelican case, you get the smallest possible form factor allowing simple and efficient travel between productions. The molded, hard-shell exterior is sized to meet airline regulations and is unbreakable, watertight, airtight, dustproof, chemical resistant and corrosion proof. With provisions for padlocking, the travel case is also tamperproof. A retractable trolley handle and polyurethane wheels make the case easy to transport a MoVI M5 across the room or around the world. The custom-cut protective foam interior provides shockproof protection for MoVI M5 stabilizers along with accessories such as seven-inch and four-inch flat panel monitors. The MoVI M5 Travel Case offers a lifetime, unconditional guarantee.

SPECIFIKACIJE:

FREEFLY MoVI M5 3-Axis Gimbal Stabilizer with Travel Case
Go To
Electrical and Mechanical
System Type 3-axis gyro stabilized
Pan Range 360°
Tilt Range ±180°
Roll Range ±180°
Slew Rates 0 to 150°/sec
Interface Bluetooth connection to Windows/Android GUI
Control Modes
Majestic Mode Stabilized with operator control via gimbal base
Off Kills drive to gimbal axes
Battery
Chemistry Lithium-polymer
Capacity 1.3 Ah
Voltage 14.8 VDC
Maximum Continuous Discharge 3 C (3.9 A)
Maximum Burst Discharge 5 C (6.5 A)
Maximum Charge Voltage 4.2 V per cell
Minimum Discharge Voltage 3.0 V
Dimension L x W x H 2.7 x 1.4 x 1.1" / 69 x 34 x 28
Weight 4.4 oz / 125 g
General
Weight Capacity Maximum: 5 lb / 2.3 kg
Power Requirements 9 to 18 VDC (3S or 4S LiPo)
Dimensions Camera Cage (L x W x H): 5.1 x 7.1 x 4.7" / 130 x 180 x 120 mm
Storage: Varies, depending on how system is broken down
Weight MoVI M5: 4.75 lb / 2.15 kg
M5 Travel Case: 24.1 lb
Packaging Info
Package Weight 36.0 lb
Box Dimensions (LxWxH) 26.0 x 20.0 x 15.0"

UKLJUČENO:

MoVI M5
2 Batteries
Battery Charger
MoVI Stand
MoVI M5 Travel Case
MoVI Ring
Toad Male Adapter for MoVI Ring
Toad In The Hole Quick Release
Freefly Right Angle HDMI (Type C) to HDMI (Type A) Cable

PODRŽAVA:

Canon C100
Canon 70D
Canon1D-C
Canon 5D III
Canon 700D
Nikon D800 D810
BlackMagic Pocket Camera
BlackMagic Cinema Camera 4K
Sony Alpha 99
Panasonic GH4
Sony A7s
