DJI Guidance Professional Aircraft Obstacle Sensing matrice vision det

DJI Guidance Professional Aircraft Obstacle Sensing matrice vision detection system

Precision Navigation without GPS
Obstacle Sensing in Every Direction
Combines Sonar and Cameras
Centimeters-Precise Motion Tracking
Awareness of 3D Space
Supports Monocular or Stereo Vision
Sensor Fusion Provides Redundancy
Dual-Core ARM Cortex-A9 CPU
USB and UART Outputs for Sensor Data
Works with DJI SDK

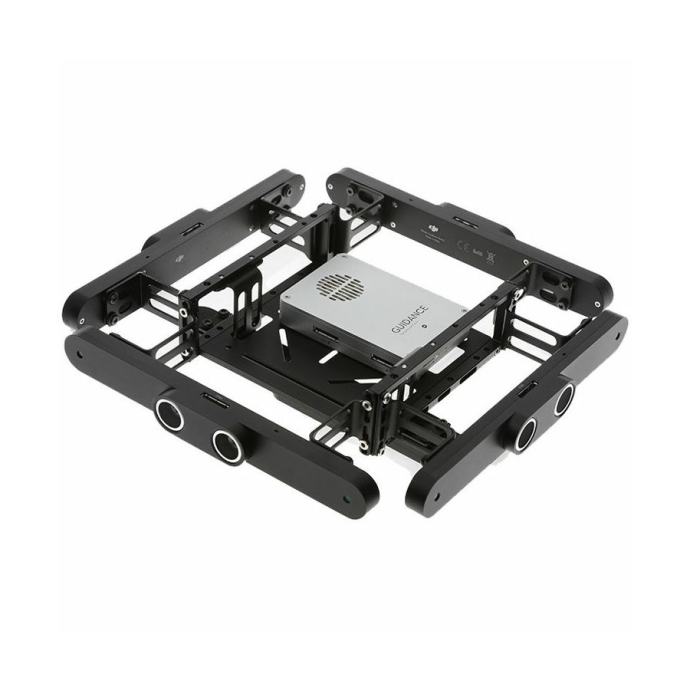

Guidance is a revolutionary visual sensing system. With a powerful processing core, integrated visual cameras, ultrasonic sensors, and the most advanced computer vision algorithms in the world, Guidance protects your platform and gives you a new level of safety and confidence in flight. Guidance includes five sensor modules and one central processor.

Features

High-Precision Vision Positioning
Even without GPS, achieve hovering that is accurate to within centimeters. Even when flying at high speeds, high-precision stereo algorithms provide positioning information over nearly any terrain. Guidance’s vision positioning system is effective at altitudes of up to 65 feet (20 meters).

Obstacle Sensing in Every Direction
Guidance continuously scans the nearby environment and detects obstacles in real time. When used with a DJI flight controller, it can tell your flight system to automatically avoid collision, even at high speeds.

SDK
Guidance is fully compatible with the DJI SDK and supports multiple interfaces for easy data export. Developers are free to create customized applications and expand the use of Guidance’s visual and ultrasonic sensors to suit any need.

SPECIFIKACIJE:

Physical Parameters

Dimensions:
Guidance Core: 78.5 mm x 53.5 mm x 14 mm
Guidance Sensor: 170 mm x 20 mm x 16.2 mm
VBUS Cable: 200mm

Weight:
Guidance Core: 64 g
Guidance Sensor (single): 43 g
VBUS Cable (single):11.6g

Performance Parameters

Velocity Detection Range: 0~16 m/s (From the ground 2 m) (The measurement shall prevail)
Velocity Detection Accuracy: 0.04 m/s (From the ground 2 m)
Positioning Accuracy: 0.05 m (From the ground 2 m)
Effective Sensor Range: 0.20 m ~ 20 m
External Requirements: Good lighting; Texture-rich surface with clear patterns

Hardware Parameters

Power Consumption: Max. 12 W (with all five Guidance Sensors)
Input Voltage: 11.1 V~25 V
Operating Temperature: -10°C ~ 40°C
System Interfaces:
VBUS ? 5
CAN ? 1
USB OTG 2.0 ? 1
UART ? 1
UART Level: 3.3V
