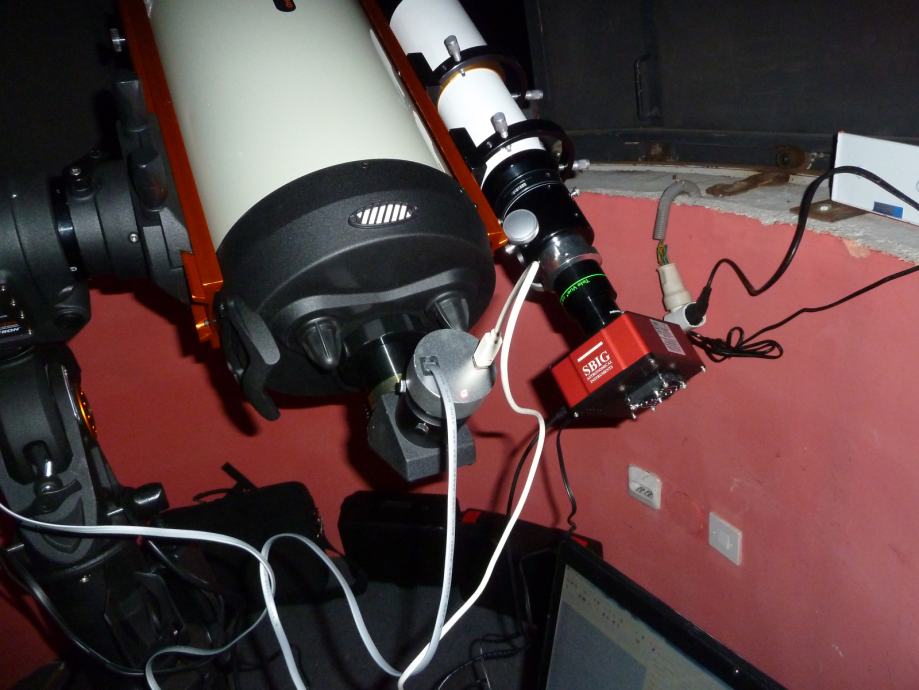

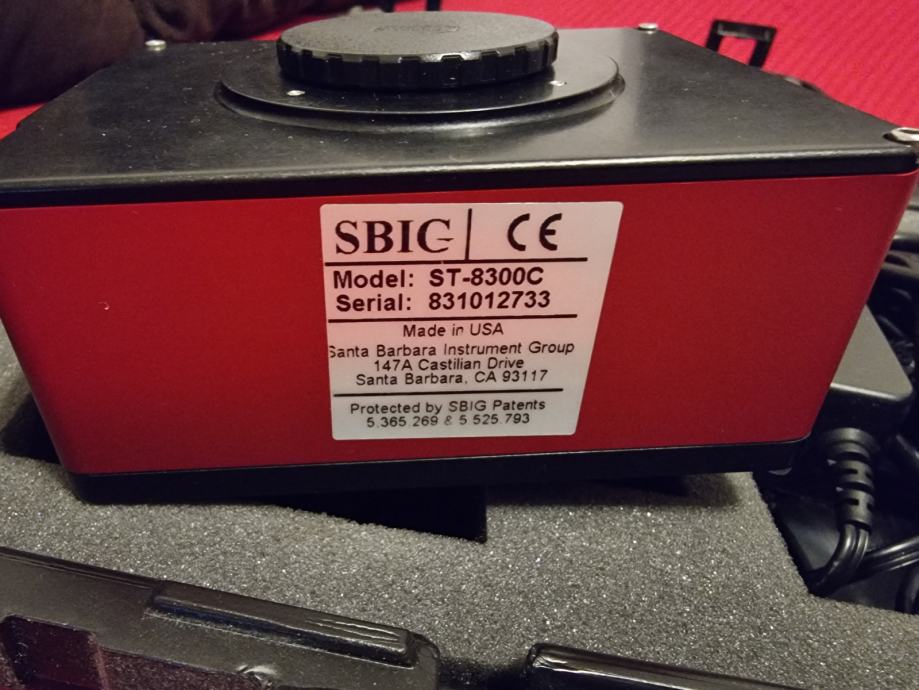

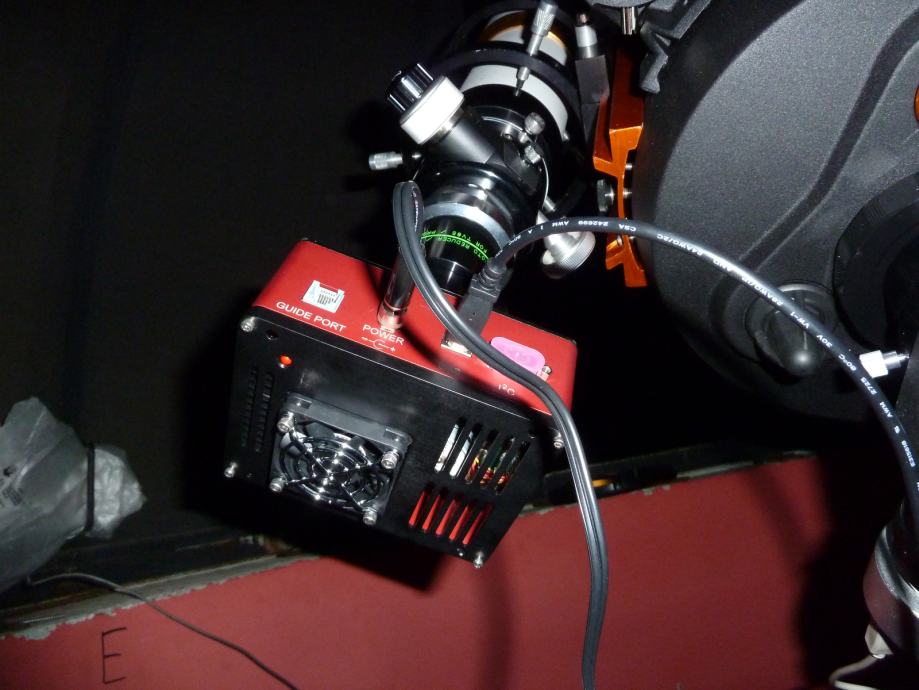

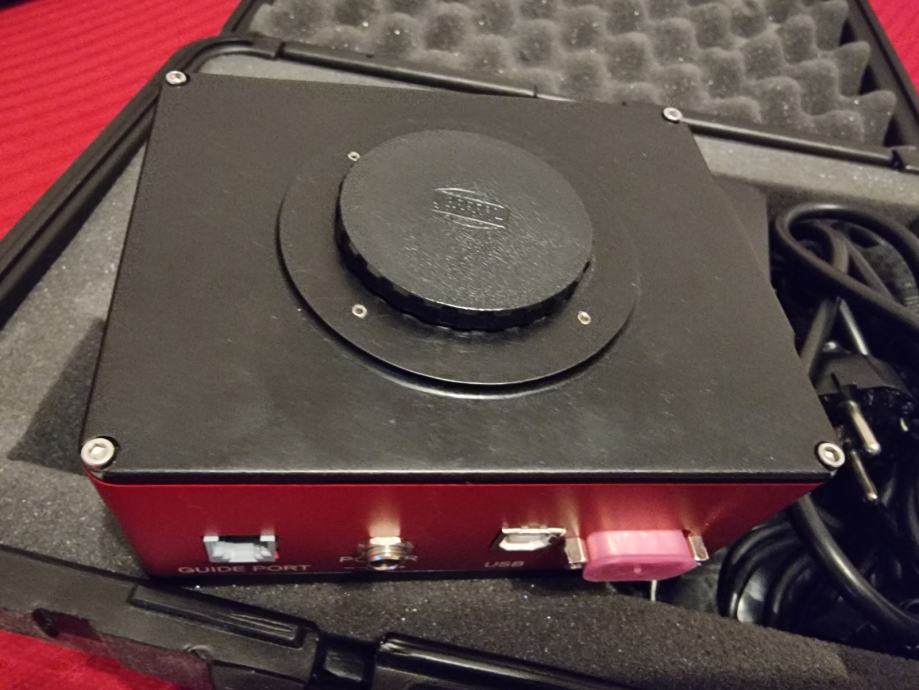

CCD kamera SBIG ST-8300C
- Cijena
- 950 €
Šifra oglasa: 41516265
Osnovne informacije
- Lokacija
- Krapinsko-zagorska, Donja Stubica, Donja Stubica
- Stanje
- rabljeno
Opis oglasa
Astronomska kolor kamera renomiranog američkog proizvođača Santa Barbara Instrument Group, pionira na području digitalne astrofotografije.
Odlično uščuvana, ispravna, sa pripadajućim softwerom. Zamjene me ne zanimaju.
Podaci:

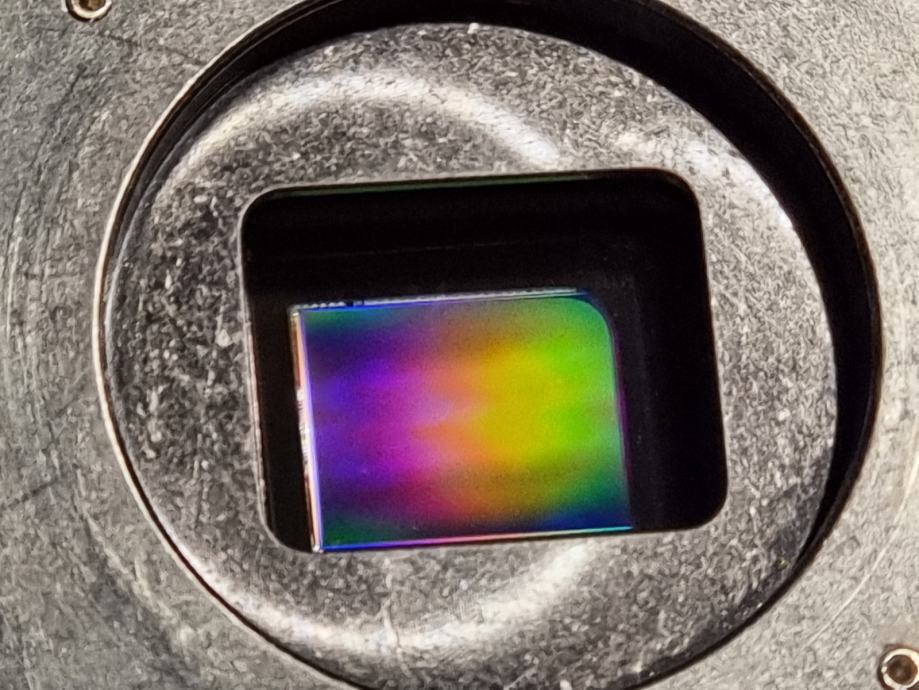

CCD Kodak KAF-8300
Pixel Array 3326 x 2504 pixels
CCD Size 17.96 x 13.52 mm
Total Pixels 8.3 million
Pixel Size 5.4 x 5.4 microns square
Full Well Capacity ~25,500 e-
Dark Current ~0.02e-/pixel/sec at -10C.
Antiblooming 1000X
Readout Specifications
Shutter Mechanical
Exposure 0.12 to 3600 seconds,
10ms resolution
Correlated Double Sampling Yes
A/D Converter 16 bits
A/D Gain TBD (prototype = 0.38e-/ADU)
Read Noise ~8e- rms
Binning Modes 1 x 1, 2 x 2, 3 x 3
Pixel Digitization Rate > 1 million pixels per second
Full Frame Download ~7.7 seconds
Focus Mode ~1 second
System Specifications
Cooling - standard Single Stage Thermoelectric,
Active Fan, max -40 C w/air
Temperature Regulation ±0.1°C

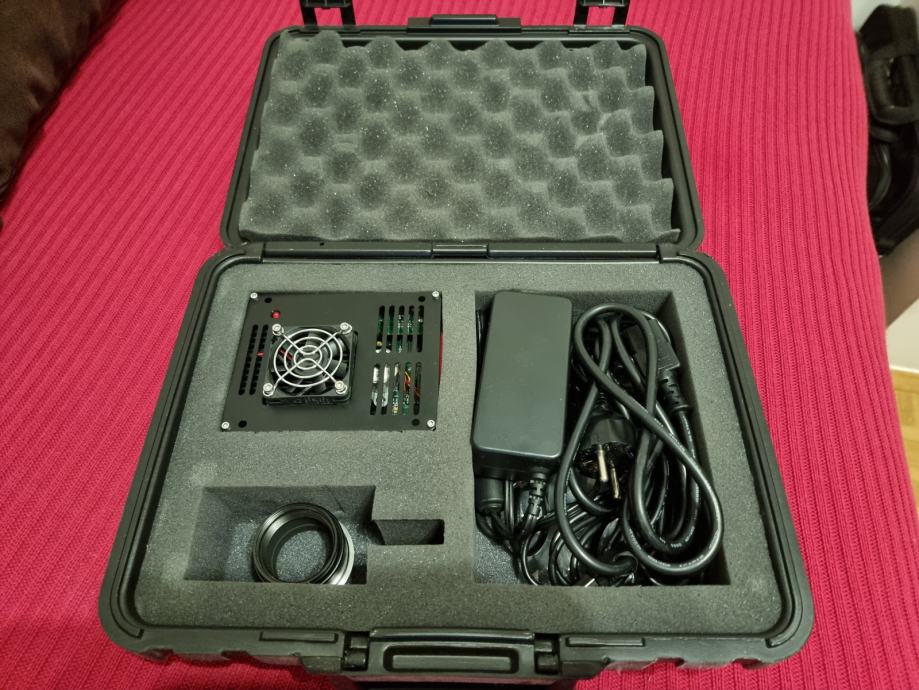

Power 12VDC at 3 amps,
power supply included

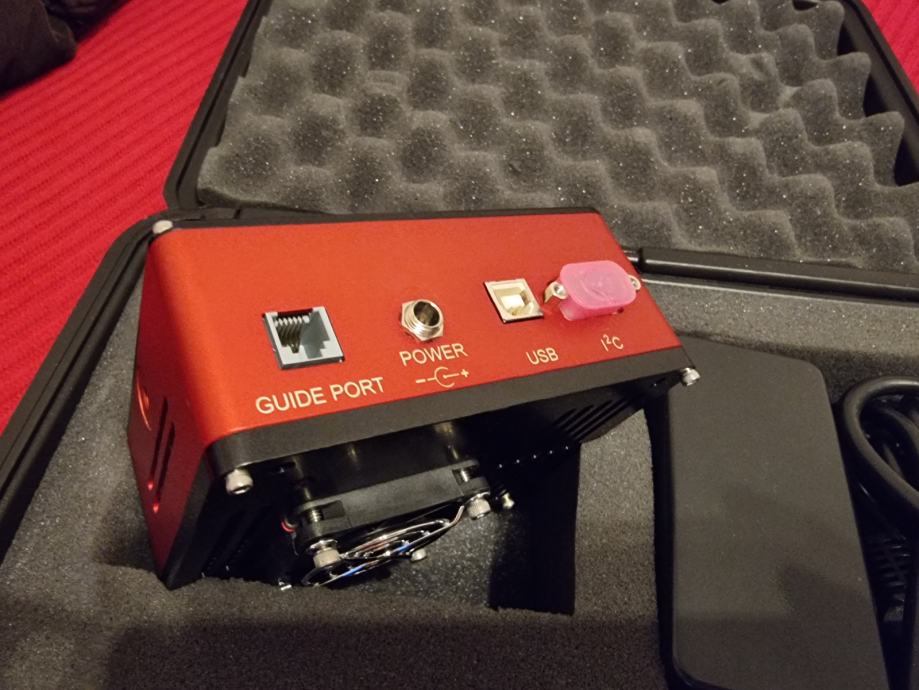

Computer Interface USB 2.0
Computer Compatibility Windows / Mac

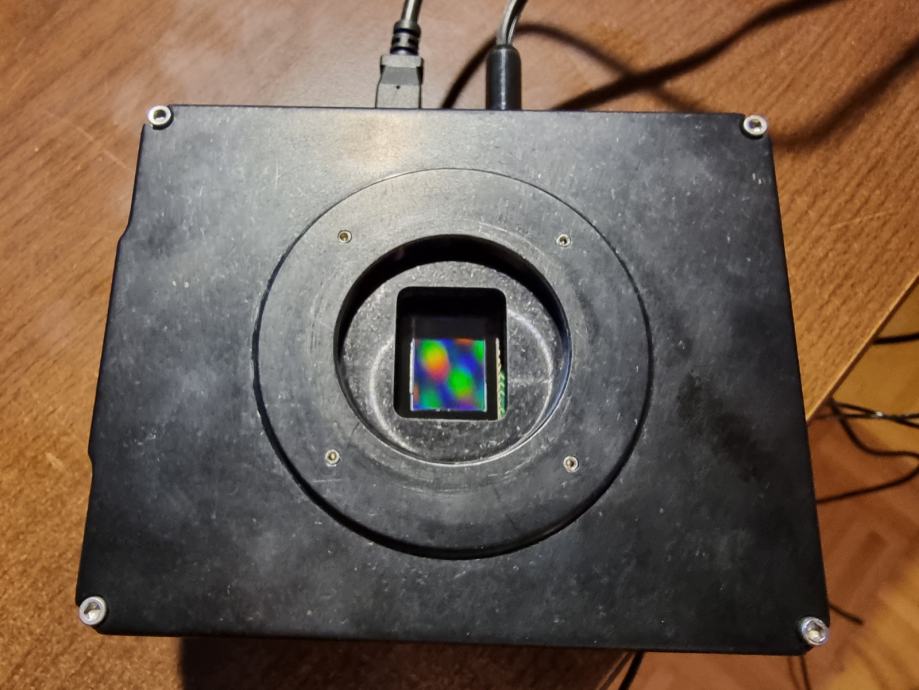

Physical Dimensions
Optical Head 2 x 4 x 5 in. (50x100x127mm)
Mounting T-Thread,
2" nosepieces included
c-mount compatible
Weight Approx. 1.8 pounds / 0.8kg
Backfocus 0.69 inches / 17.5 mm
Odlično uščuvana, ispravna, sa pripadajućim softwerom. Zamjene me ne zanimaju.
Podaci:
CCD Kodak KAF-8300
Pixel Array 3326 x 2504 pixels
CCD Size 17.96 x 13.52 mm
Total Pixels 8.3 million
Pixel Size 5.4 x 5.4 microns square
Full Well Capacity ~25,500 e-
Dark Current ~0.02e-/pixel/sec at -10C.
Antiblooming 1000X
Readout Specifications
Shutter Mechanical
Exposure 0.12 to 3600 seconds,
10ms resolution
Correlated Double Sampling Yes
A/D Converter 16 bits
A/D Gain TBD (prototype = 0.38e-/ADU)
Read Noise ~8e- rms
Binning Modes 1 x 1, 2 x 2, 3 x 3
Pixel Digitization Rate > 1 million pixels per second
Full Frame Download ~7.7 seconds
Focus Mode ~1 second
System Specifications
Cooling - standard Single Stage Thermoelectric,
Active Fan, max -40 C w/air
Temperature Regulation ±0.1°C
Power 12VDC at 3 amps,
power supply included
Computer Interface USB 2.0
Computer Compatibility Windows / Mac
Physical Dimensions
Optical Head 2 x 4 x 5 in. (50x100x127mm)
Mounting T-Thread,
2" nosepieces included
c-mount compatible
Weight Approx. 1.8 pounds / 0.8kg
Backfocus 0.69 inches / 17.5 mm
