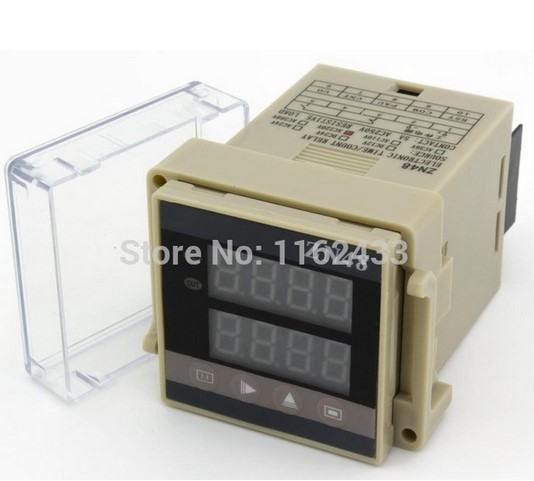

ZN48 digitalni brojač counter tajmer timer 220V NPN IC ili Induktivno

Digitalni timer , brojač ZN48 može se koristiti kao: delay relay, dupli delay relay, kumulativni brojač, kumulativni brojač s resetom, mjerač frekvencije, mjerač broja obrtaja, obrnuto odbrojavanje itd.
Može se korstiti u kombinaciji sa blizinskim sondama, optičkim sondama ili kontaktno. Ima izlazni relej deklariran za max 5A s izmjeničnim kontaktima.

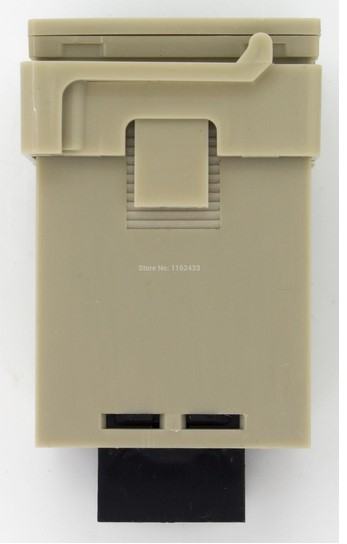

Dimenzije su 48x48x90mm

U ponudi imam kompatibilne sonde za ZN48:

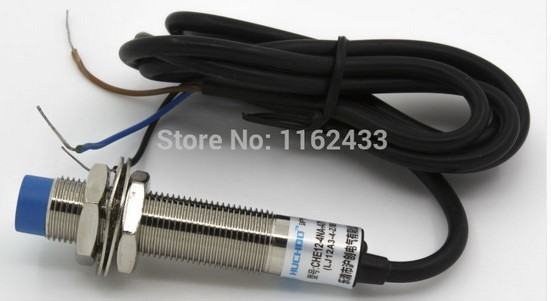

Induktivne blizinske sonde tipa: M12 DC NPN LJ12A3-4-Z/BX cijene 30kn/kom

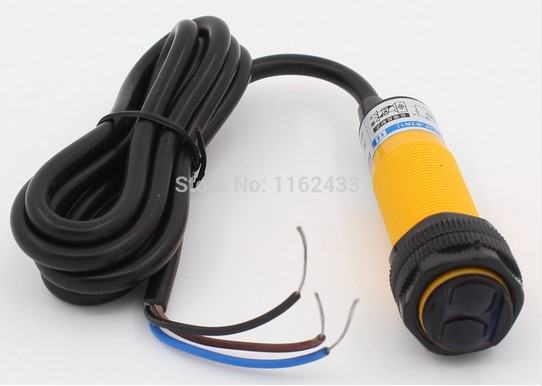

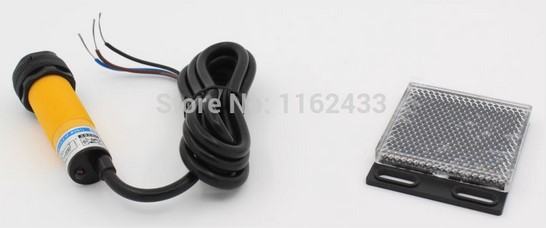

Infracrvene blizinske reflektivne sonde tipa M18 DC NPN NO E3F-R2N1 cijene 100kn/kom

Slanje robe je na trošak kupca dostavom po izboru
trošak je 10 kn običnom poštom i avansno plaćanje na račun
20kn za preporučeno slanje poštom i avansno plaćanje na račun
ili 30kn za preporučeno slanje i plaćanje pouzećem

U ponudi imam i druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.

Detaljne specifikacije:
Model number ZN48
Supply voltage 36, 220, 380VAC 50/60 Hz; 12VAC/DC, 24VAC/DC
Operating mode Single delay (Up): 99.99s/9999s//9999min/99min59s/99h59min. out code: 1-6
Single delay (Down): 99.99s/9999s//9999min/99min59s/99h59min. out code: 1-6
Double delay (Up): 9999s/9999min/99min59s/99h59min. out code: 1,2
Double delay (Down): 9999s/9999min/99min59s/99h59min. out code: 1,2
Accumulation (reset immediately): 99h59min59.99s/999h59min59s/9999d23h59min. out code: 1-6
Accumulation (reset after 8s): 99h59min59.99s/999h59min59s/9999d23h59min. out code: 1-6
Frequency: 9999Hz/999.9Hz. out code: 1,3
Rotation: 60-9999RPM. out code: 1,3
Frequency/Rotation: 0-9999. out code: 1,3. multiple: a,b
Reversible count: 0-9999. out code: 1,3,5
Reversible count: 0-9999. out code: 1,3,5. multiple: a
Reversible count: 0-99999999. out code: 1,3,5
Reversible count: 0-99999999. out code: 1,3,5. multiple: a
Output mode 1. When power on, the counter work, reach or exceed the set value, relay switch on.
2. When power on, the counter don't work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch on.
3. When power on, the counter work, reach or exceed the set value, relay switch off.
4. When power on, the counter don't work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch off.
5. When power on, the counter work, reach or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, begin work again.
6. When power on, the counter don't work work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, begin work again.
Input Signal Contact, sensor (NPN type)
Max. counting speed 10KHz
Min. counting pulse 2KHz
Control form SPDT
