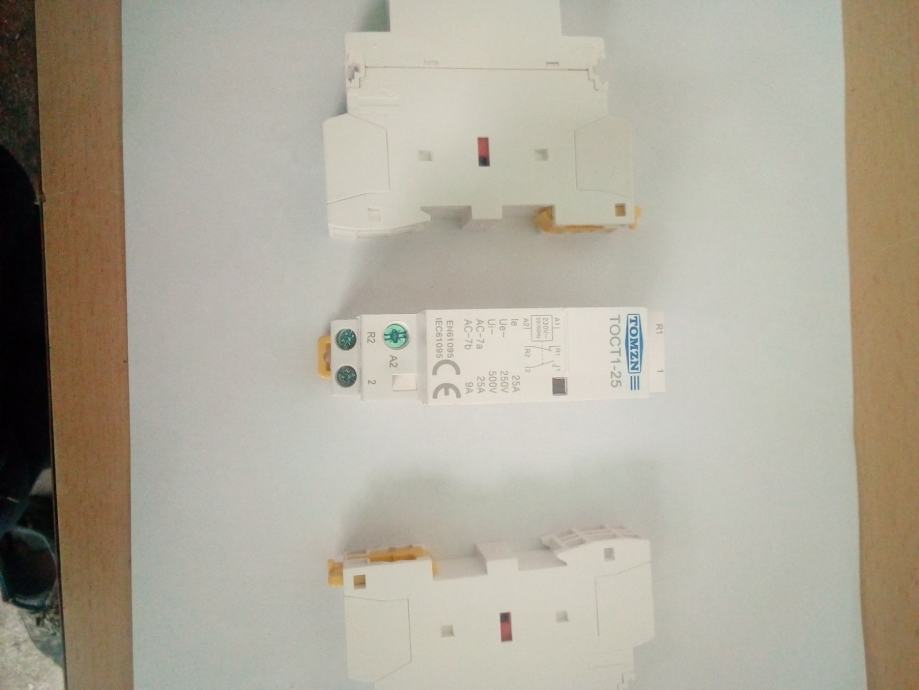

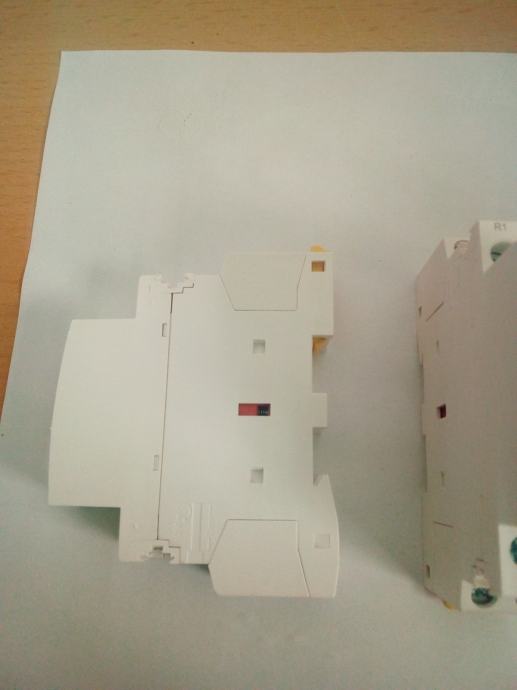

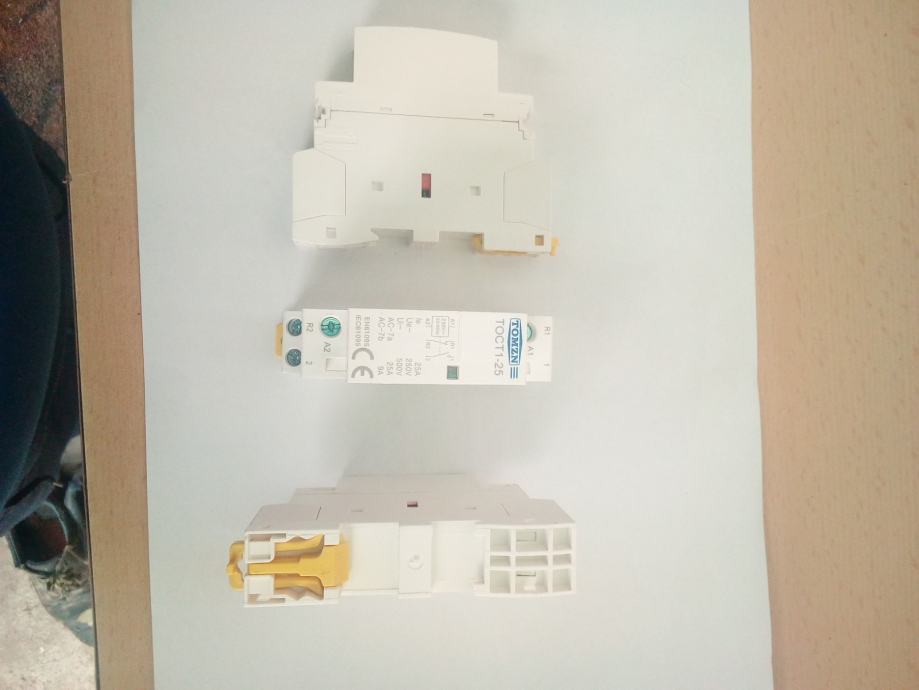

TOCT1-25 CN sklopka 25A NO NC špula 220V za kućanstvo DIN TOMZN

TOMZN TOCT1-25 monofazna NO NC sklopka s 220V špulom. Ova CN sklopka nije motorstater sklopka, preporučam za korištenje kada želite npr daljinski isključiti ili uključiti napajanje neke sobe, prostora apartmana ili slično, za pokretanje vanjske rasvjete i manjih monofaznih trošila. Moguće ih je montirati na DIN šinu među vaše automatske osigurače. Za pokretanje snažnih trošila ili elektromotora preporučam druge modele npr 1210, 1810, 3210 ili 5011 kontaktorske sklopke iz moje ponude.

Nudim pomoć kod idejnih rješenja spajanja i predspajanja, prilažem sheme ako sklopku kombinirate s tajmerima, termostatima, hidrostatima higrostatima ili slično.

U ponudi imam razne termostate, higrostate, regulatore napona, elektro ventile, ssr-releje, grijače i raznu ostalu opremu za inkubatore i slične namjene.


šaljem dostavom po želji o trošku kupca ili osobno preuzimanje.

ako se šalje običnom poštom uz avansno plaćanje na račun poštarina je 10kn,
ako se šalje preporučenom poštom (ili tisak paket slanje) uz avansno plaćanje na račun poštarina je 15kn,
Ako se šalje preporučenom poštom + plaćanje pouzećem cijena slanja je cca 30kn

Specifikacije:
This 2P 230V 50/60HZ 1NO 1NC
TOCT1 house hold AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V . Rated operating voltage in AC-7a usage ,rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 6kA circuit. For distance connect or break the circuit.
Application: for home, apartment, hotel, automatic cut off or connect the power.
Normal working and installation conditions:
1. Ambient temperature:-5°C to +40°C,the average temperature no more than +35°C in 24 hours.
2. Altitude:no more than 2000m.
3. Atmospheric conditions: the relative humidity of the installation place should be no more than 50% when the maximum temperature is +40°C:if under a lower temperature,a higher relative humidity is allowed. The monthly average minimum temperature in the wettest month should not exceed +25°C and the monthly average maximum relative humidity of this month no more than 90%.Besides,the dew on the surface of products caused by temperature change should be taken into consideration.
4. Class of pollution: class 2.
5. Installation condition: class II.
Application instruction
1. Check whether the contactor agrees with the scope of application and the working condition before installation

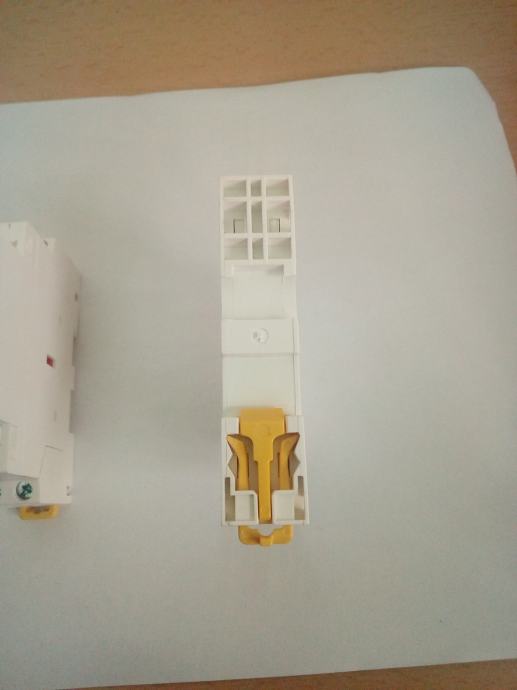

2. During the process of installing pull down the motion stopping component and put the contactor on the safe orbit then push up the motion-stopping component to fix the contactor on the safe orbit avoid loosening and dropping pull down the motion-stopping component if you want to remove the contactor.
Caution
a).Make sure the correct mode of connection
b).Screw down the binding screw during the connection
Main tech data
Contactor model : TOCT1-25 NO NC
Rated isolating voltage (Ui) V 500
Rated operating voltage (Ue) V 0 230
Thermal continuous current (Ith) A 25
Rated working current (Ie) AC-7a A 25
AC-7b A 9 9 10
Rated working power (Pe) AC-7a kW 5.4
AC-7b A kW 1.4
Operating times 10 thousand aeProduct.getSubject()3
Operating frequency AC-7a turns/Hour 1200
AC-7b turns/Hour 30
Connect and break capability AC-7a A 1.5Ie
AC-7b A 8Ie
Withstand current (ICW) 10S A 8Ie/AC-7b
Connecting wiring 1 wire mm2 1--4
2 wire mm2 1--4
Coil
Control power voltage (Us) AC V 220/230
Coil power W 1.4
