Termostat modul W1209 LED inkubator sonda -50~110°C DC-12v opcija-220v

Termostat modul digital W1209 +sonda LED inkubator -50~110°C

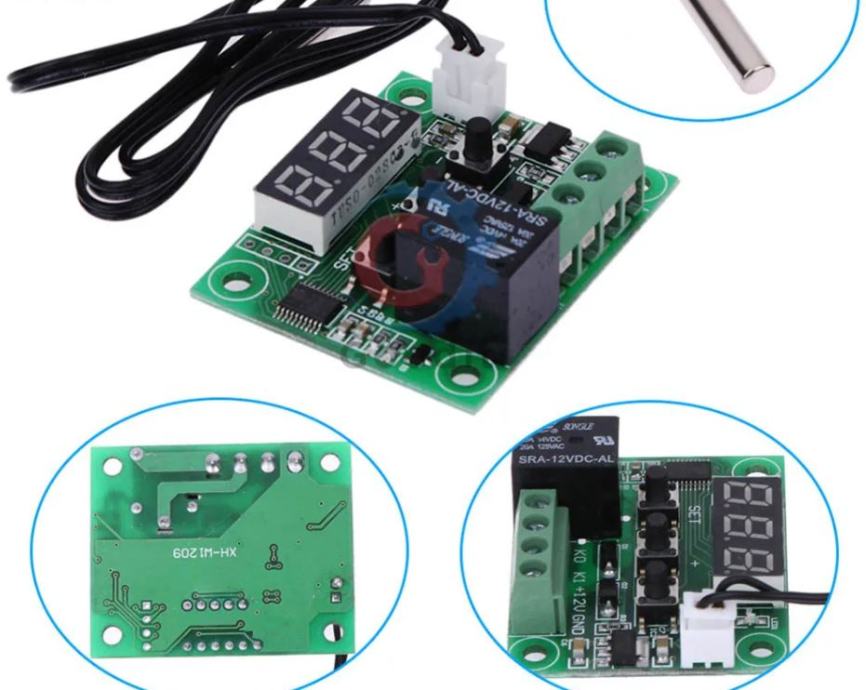

slike 2-6
Cijena 6.48€ samo modul !
2kom je 12.48€

slika 1

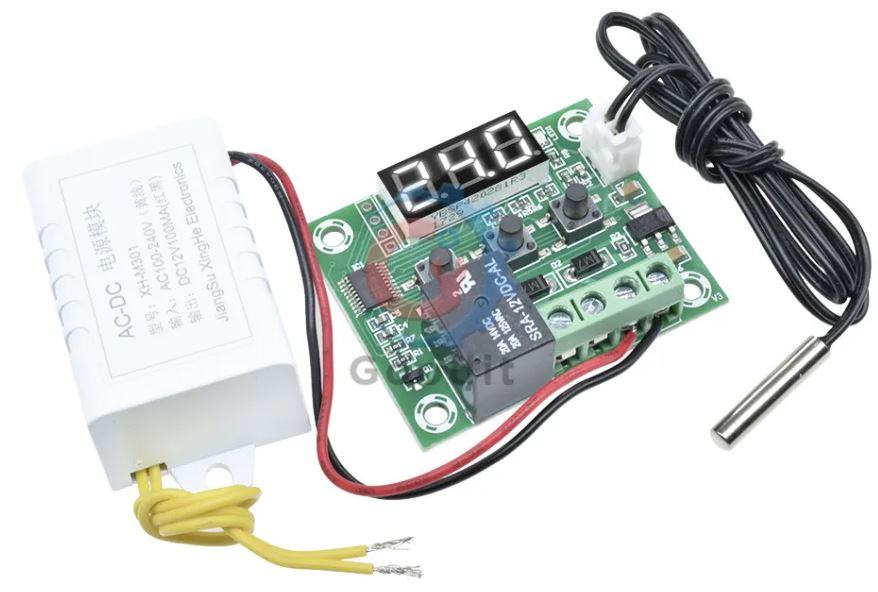

Modul+Adapter 220v AC-DC 12v
Cijena 8.98€


Najčešće ga se može naći kao regulator temperature u inkubatorima

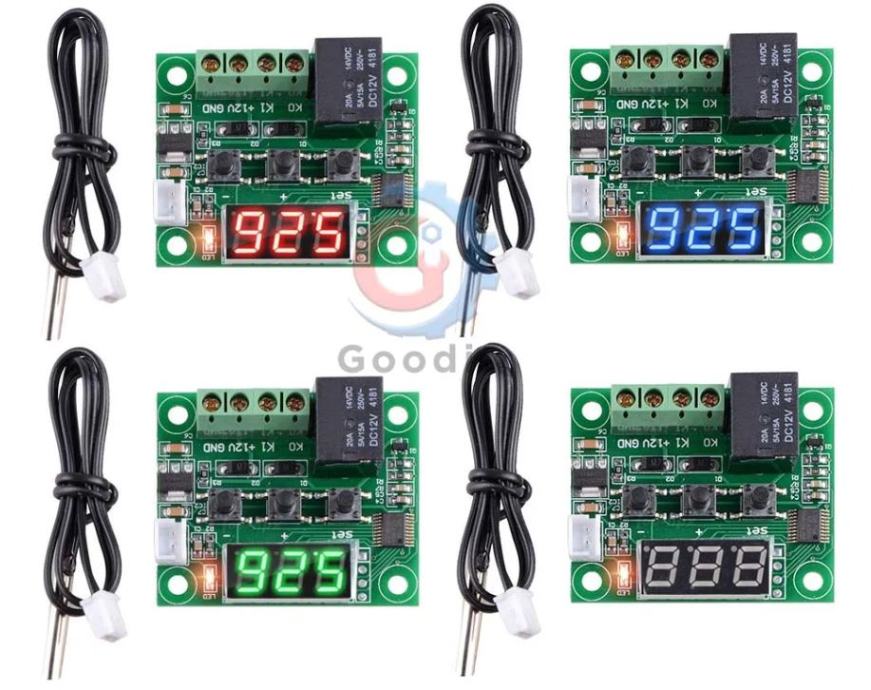

Razne boje... crveni plavi zeleni bijeli
Description:
1. product features
① complete machine patch, wave soldering, stable performance, good consistency
② with a shell, more beautiful and practical
③ embedded central processor chip (MCU), smarter, lower power consumption
④ power-off setting automatic memory (MCU built-in EEPROM storage unit)
⑤ control accuracy of 0.1 degrees Celsius
⑥ the setback of 0.1, can control the decimal (0.1-15.0)

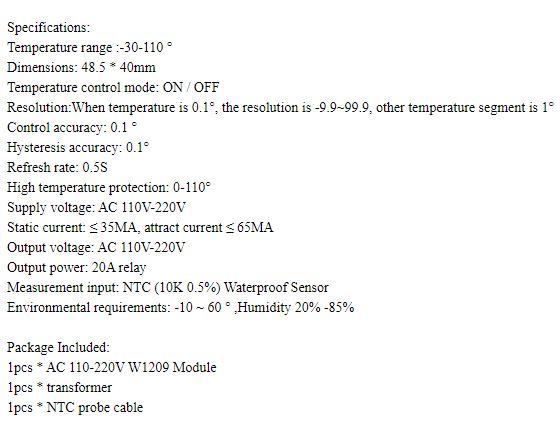

2. technical parameters
Temperature control range: -50~110°C
Resolution: -9.9~99.9 when 0.1 °C Other temperature range 1 °C
Temperature measurement accuracy: 0.1 °C
Control accuracy: 0.1 °C
Hysteresis accuracy: 0.1 °C
Refresh rate: 0.5 S
Display type: 0.28 inch three digital tube
Input power: DC 12V
Measurement input: NTC (10K 0.5%) Waterproof sensor Line length 30cm
Output: 1 relay output, 5A 250VAC, 20A 16VAC
Environmental requirements: -10~60°C Humidity 20%-85%

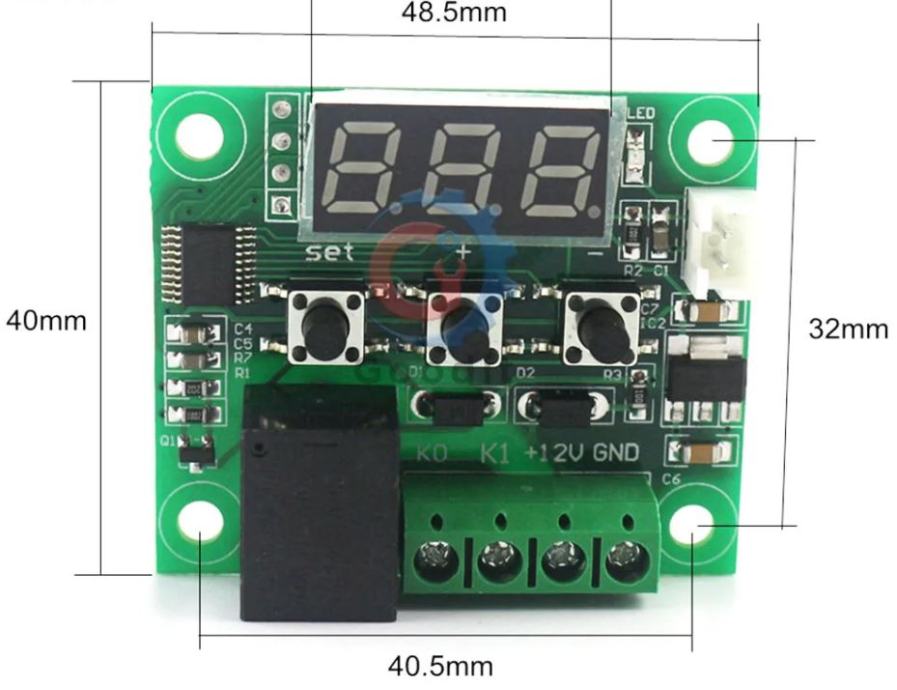

Size: 48x14x40mm
Power consumption of the whole machine: quiescent current: ≤10MA Pull-in current: ≤65MA

3. the method of use
Connect the power supply and equipment to supply power to the thermostat. At this time, the temperature is displayed. Press the SET button, the display temperature will flash, press +- to set the desired temperature (press +- to quickly raise and lower) After finishing, press SET to confirm the return. At this time, the thermostat automatically performs relay on/off according to the setting!

4. the indicator light and digital tube status description
Indicator light: The yellow indicator light is always on, indicating that the relay is closed.
Digital tube: Display LLL is the sensor open circuit, please follow the instructions to connect the sensor; display HHH is out of the measurement range, the thermostat will force the relay to open

5. parameter function description
Press and hold SET for 5 seconds to enter the main menu settings, press +- to switch P0...P6, long press SET or 5 seconds without key action, the thermostat automatically confirms the return.

P0 cooling and heating mode (factory is cooling mode)
P1 hysteresis setting (factory value 2 ° C)
P2 upper temperature setting upper limit (factory value 110 °C)
P3 lowest temperature setting lower limit (factory value -50 °C)
P4 temperature correction (factory value 0 ° C)
P5 delay time (factory value 0 minutes)

Restore factory settings:In the off state, press and hold the + and - buttons simultaneously, then turn on the power, the digital tube displays 888 and all parameters are restored to the factory defaults.
