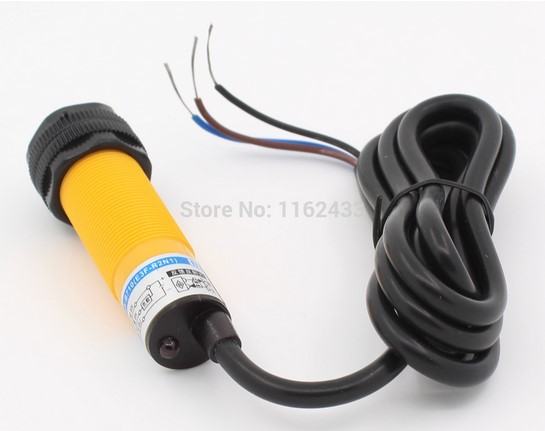

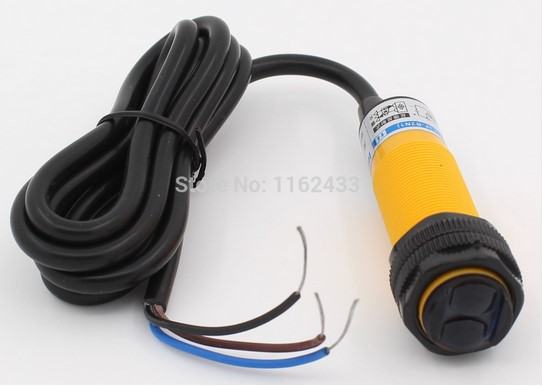

Sonda blizinska optička IC DC NPN E3F-R2N1 za brojače digitalne

Blizinska IC optička sonda za digitalne brojače npr. model ZN48 ili slično.
NPN tipa DC M18 veličina

Slanje robe je na trošak kupca dostavom po izboru
trošak je 1,00 eur običnom poštom i avansno plaćanje na račun
oko 3 eur za preporučeno slanje poštom i avansno plaćanje na račun
ili 4,7 eur za preporučeno slanje i plaćanje pouzećem
Slanje Overseas dostavom je 5 eur za plaćanje na račun ili 6 Eur za plaćanje pouzećem.
Slanje GLS dostavom je 7 eur za plaćanje na račun ili 8 Eur za plaćanje pouzećem.

U ponudi imam i druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.

Specifikacije:
Model number E3F-R2 series
External dimensions M18x1x67.5

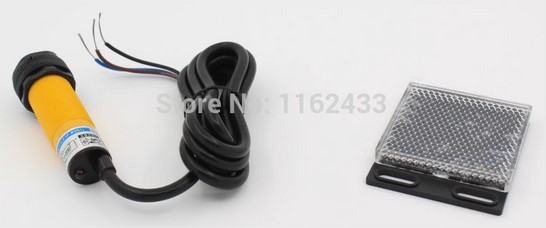

Sensing method Retroreflective
Detection distance 2m±10%
Sensitivity adjustment Adjustable
Supply voltage 6-36Vdc
Rated output current N.P Type: 300mA max; A Type: 400mA; J type: 2A max (contact life: 100000 times)
Sensing object Opaque object
Response frequency 300Hz
Response time 1.5ms max
Light source Infrared LED (660 nm)
Leakage current N.P Type: 20mA max; A Type: 1.7mA max
Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP67
Material Case: ABS; Sensing surface (lens): PMMA
Operating temperature -30 to 65 °C (with no icing or condensation)
Operating humidity Storage: 35% to 95% (without condensation)
