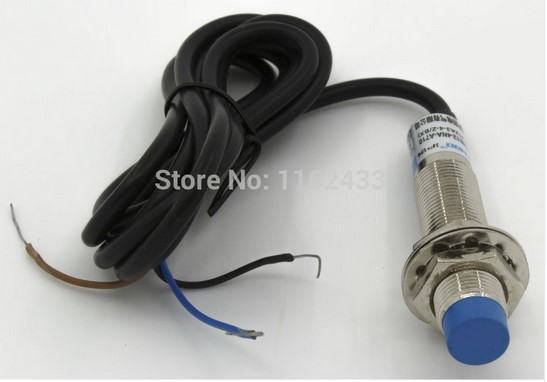

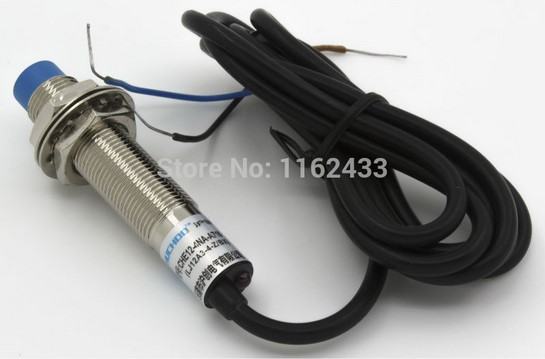

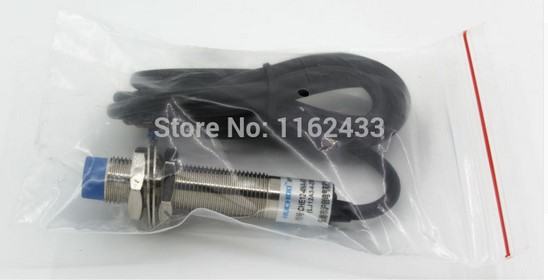

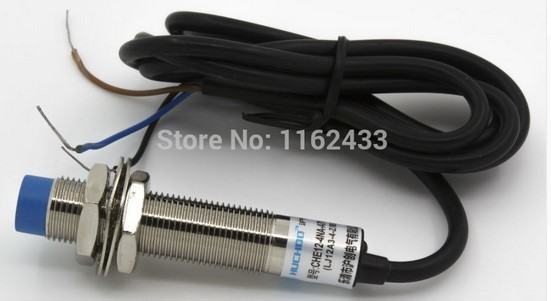

Sonda blizinska induktivna DCNO NPN LJ12A3-4-Z/BX za brojače digitalne

Blizinska induktivna magnetna sonda za digitalne brojače npr. model ZN48 ili slično.
NPN tipa DC M12 veličina

Slanje robe je na trošak kupca dostavom po izboru
trošak je 1,00 eur običnom poštom i avansno plaćanje na račun
oko 3 eur za preporučeno slanje poštom i avansno plaćanje na račun
ili 4,7 eur za preporučeno slanje i plaćanje pouzećem
Slanje Overseas dostavom je 5 eur za plaćanje na račun ili 6 Eur za plaćanje pouzećem.
Slanje GLS dostavom je 7 eur za plaćanje na račun ili 8 Eur za plaćanje pouzećem.
U ponudi imam i druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.

Specifikacije:
Model number LJ12A3-4 series
External dimensions M12x60
Installation type Non-shielded
Detection distance 4mm
Setting distance 0-3.2 mm
Supply voltage 6-36Vdc,
Output current DC type: 300mA max; AC Type: 400mA NO
Standard detected object Mild steel (12x12x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency 500Hz
Matched mounting bracket M12 mounting bracket
Matched mounting connector Only for connector type: 3 wires bend connector, 3 wires straight connector
Output indication Red LED
Short-circuit protection No
Reverse connection protection Yes
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
IP Rating IP65
Operating temperature -25 to 70 °C (13 to 158 °F)
Cable length 1.2m, PVC cable
Material Case: Brass-nickel plated; Sensing surface: ABS
