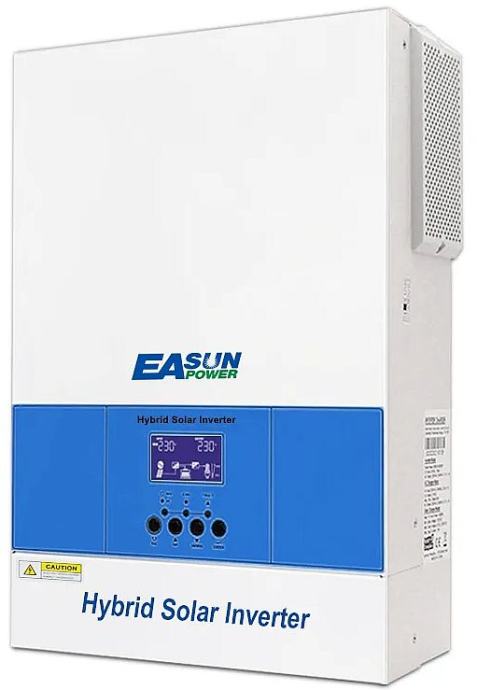

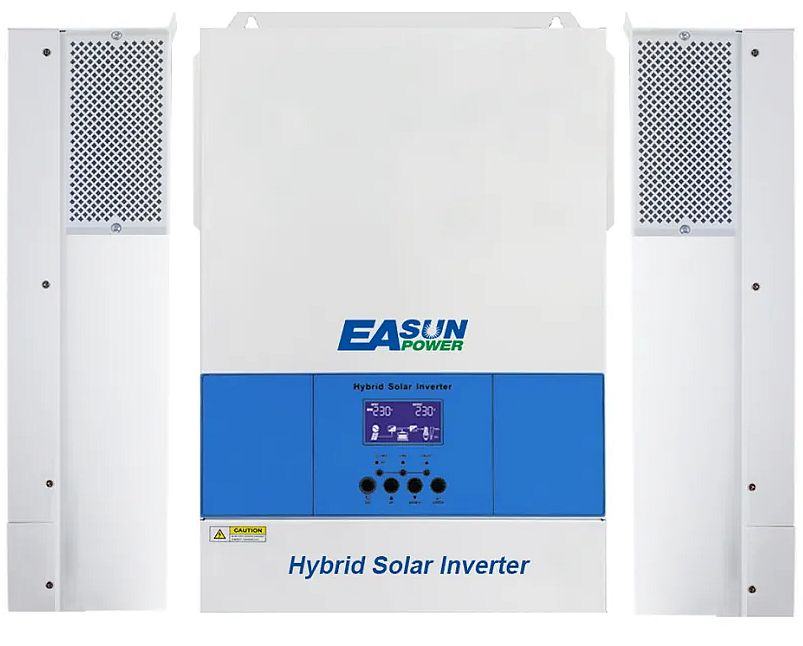

solarni hibridni inverter 48V Easun 6.2KW - 12.4KW

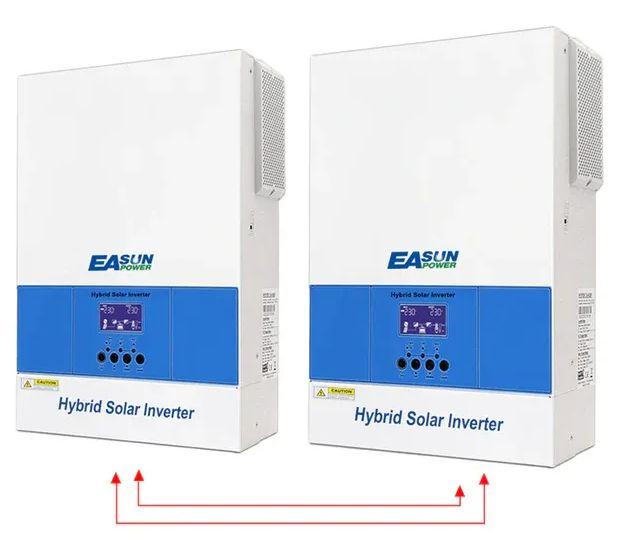

Novo neraspakirano. Imam 2 kom viška, mogu se spojiti paralelno za duplu snagu. Za kupnju oba popust. Dolazi sa antenom za WiFi. Dostavljam besplatno u ZG i okolici. Opisi na slikama i dolje:

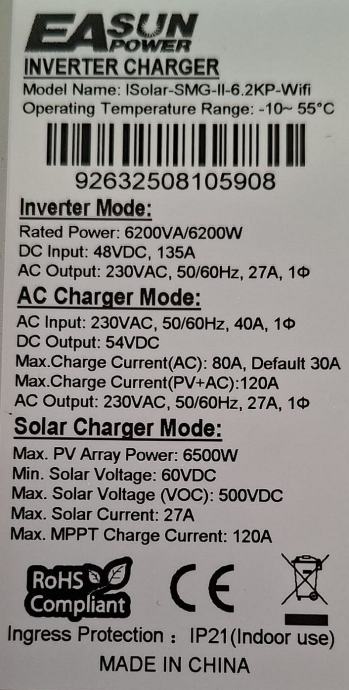

Model ISolar-SMG-II-6.2KP WiFi
Capacity 6.2KVA / 6.2KW
Parallel Capability Yes, 12 Units
Lithium Battery Activation YES (By PV or Utility)
Lithium Battery Communication YES (RS485)
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170–280VAC (PC); 90–280VAC (Home)
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230VAC ±5%
Surge Power 12400VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (PC); 20ms (Home)
Peak Efficiency (PV to INV) 96%
Peak Efficiency (Battery to INV) 93%
Overload Protection 5s @ ≥140% load; 10s @ 110–140% load
Crest Factor 3:1
Admissible Power Factor 0.6–1 (inductive or capacitive)
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
OverCharge Protection 63VDC
Charging Method CC / CV
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Max. PV Array Power 6500W
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60–500VDC
Max. Solar Input Current 27A
Max. Solar Charge Current 120A
Max. AC Charge Current 80A
Max. Charge Current (PV+AC) 120A
PHYSICAL
Dimensions (D×W×H) 438 × 295 × 105 mm
Package Dimensions 560 × 375 × 185 mm
Net Weight 9 kg
Communication Interface RS232 + RS485
ENVIRONMENT
Operating Temperature Range -10°C to 50°C
Storage Temperature -15°C to 50°C
Humidity 5% to 95% RH (Non-condensing)
