Schneider Electric TM221CE16T PLC modul

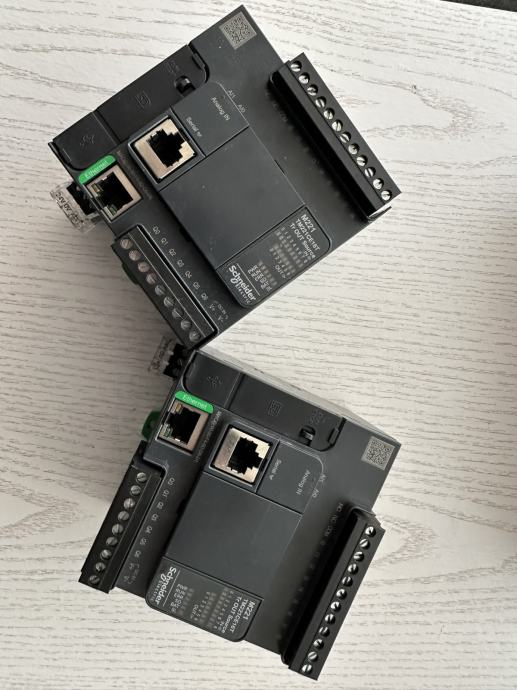

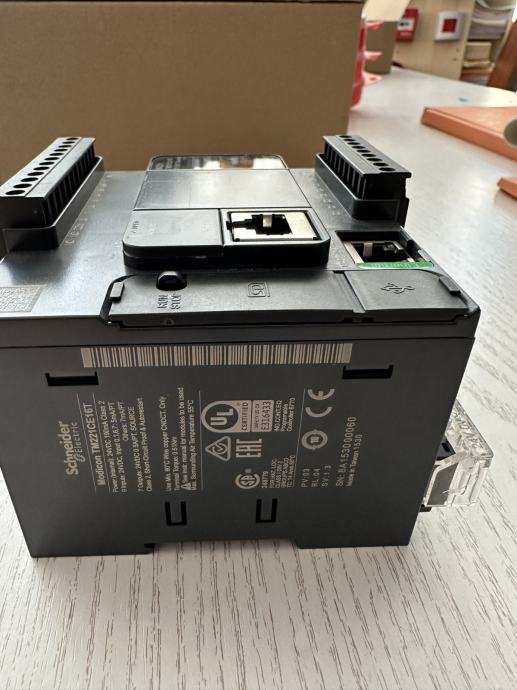

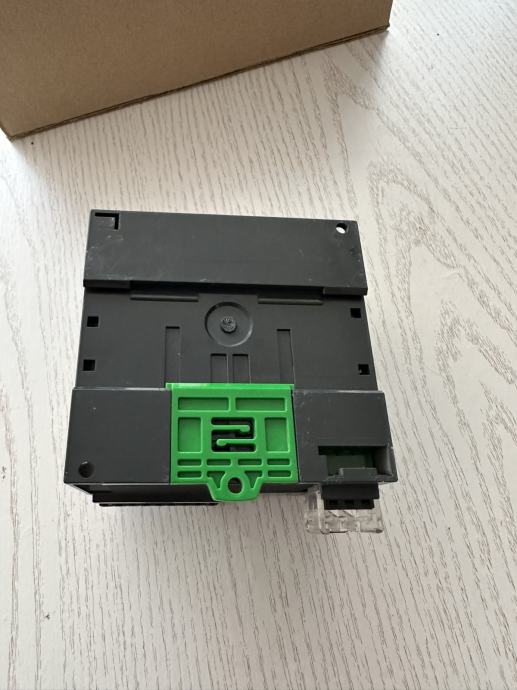

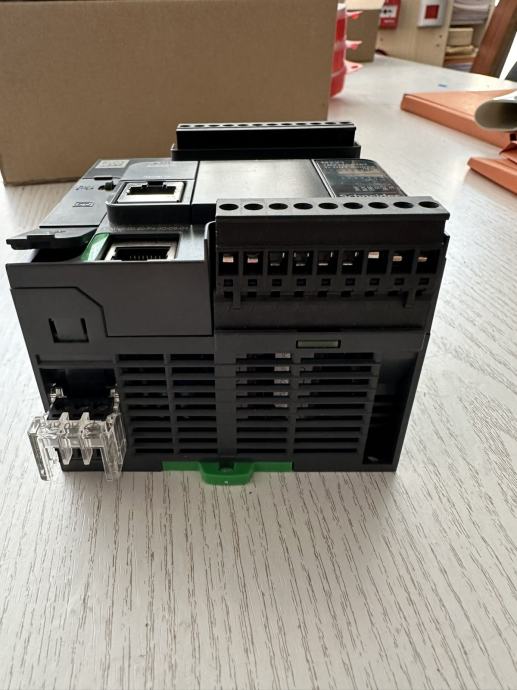

Prodajem dva rabljena PLC Schneider Electric TM221CE16T modula. Moduli su testirani i rade. Cijena je za jedan komad.

Pomoću Modicon M221 možete postići izvanredne performanse s povećanom učinkovitošću kroz: - Intuitivno strojno programiranje pomoću SoMachine Basic - Sve ugrađene značajke i funkcije koje su vam potrebne da izvučete maksimum iz vašeg stroja - Jednostavna nadogradnja na platforme za bolje performanse Povezan putem Etherneta, Wi-Fi pristup, web poslužitelj za pojednostavljenje integracije i održavanja stroja - zahvaljujući Industry 4.0

Description:

Supply for Compact-S CPU, X2X Link and internal I/O power supply
Galvanic isolation of supply and CPU / X2X Link power supply
Redundancy of the CPU / X2X Link power supply possible through parallel operation of multiple power supply modules
RS232 configurable as an online interface
CAN bus
The power supply module is used together with an X20 Compact-S CPU. It has a feed for the Compact-S CPU, X2X Link and the internal I/O power supply.

Specification
Short description
Power supply module 24 VDC power supply module for Compact-S CPU, X2X Link power supply and I/O
Interfaces 1x RS232, 1x CAN bus
General information
B&R ID code 0xEB03
Status indicators Overload, operating state, module status, RS232, CAN bus
Diagnostics
Module run/error Yes, using LED status indicator and software
CAN bus data transfer Yes, using LED status indicator
RS232 data transfer Yes, using LED status indicator
Overload Yes, using LED status indicator and software
Power consumption for X2X Link power supply 1.42 W
Power consumption
Internal I/O 0.6 W
Additional power dissipation caused by actuators (resistive) [W] -
Certifications
CE Yes
ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
UL cULus E115267
Industrial control equipment
DNV Temperature: B (0 - 55°C)
Humidity: B (up to 100%)
Vibration: B (4 g)
EMC: B (bridge and open deck)
LR ENV1
KR Yes
ABS Yes
EAC Yes
CPU / X2X Link power supply input
Input voltage 24 VDC -15% / +20%
Input current Max. 0.7 A
Fuse Integrated, cannot be replaced
Reverse polarity protection Yes
CPU / X2X Link power supply output
Nominal output power 7 W
Parallel connection Yes
Redundant operation Yes
Overload characteristics Short-circuit proof, temporary overload
Input I/O power supply
Input voltage 24 VDC -15% / +20%
Fuse Required line fuse: Max. 10 A, slow-blow
Reverse polarity protection No
Output I/O power supply
Nominal output voltage 24 VDC
Behavior on short circuit Required line fuse
Permissible contact load 10 A
Interfaces
Interface IF1
Signal RS232
Variant Connection made using 12-pin terminal block X20TB12
Transfer rate Max. 115.2 kbit/s
Interface IF3
Signal CAN bus
Variant Connection made using 12-pin terminal block X20TB12
Transfer rate Max. 1 Mbit/s
Electrical properties
Electrical isolation
CPU/X2X Link supply isolated from CPU/X2X Link power supply

I/O supply not isolated from I/O power supply
Operating conditions
Mounting orientation
Horizontal Yes
Vertical Yes
Installation elevation above sea level
0 to 2000 m No limitation
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529 IP20
Ambient conditions
Temperature
Operation
Horizontal mounting orientation -25 to 60°C
Vertical mounting orientation -25 to 50°C
Derating See section "Derating".
Storage -40 to 85°C
Transport -40 to 85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
