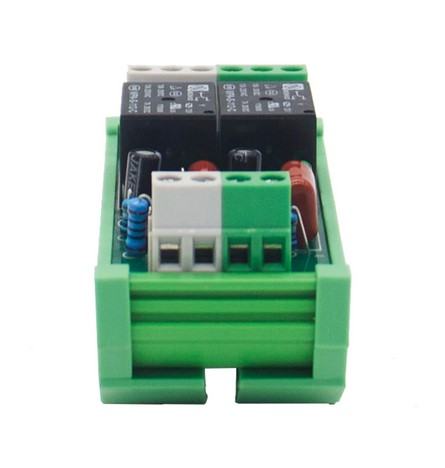

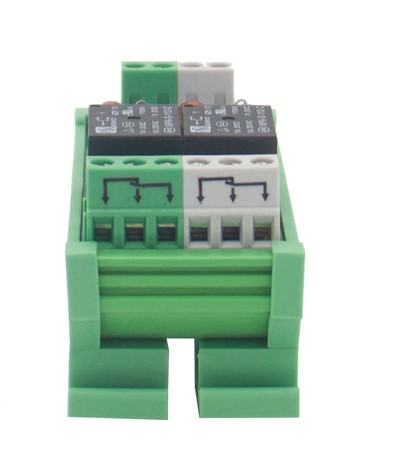

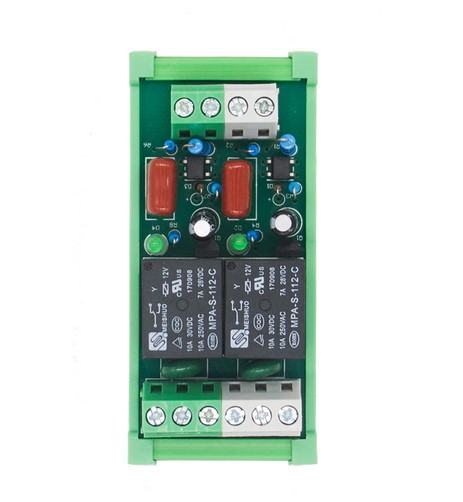

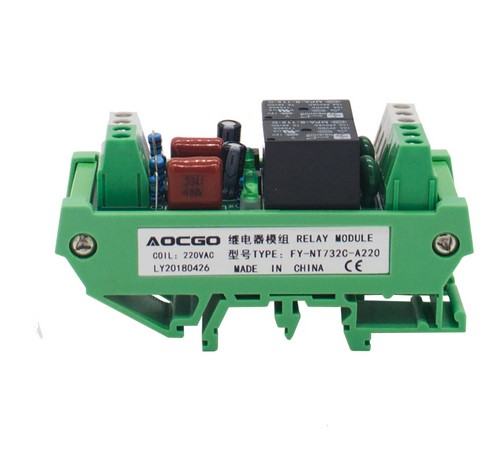

Relej dupli T73 10A 220V DIN rail montaža za upravljačke ormare

Relej dupli T73 10A 220V AOCGO za izolaciju izvora od izlaza, za upotrebu s PLC-ovima, npr. korištenje za automatsko gašenje pumpe kada su elektroventili zatvoreni kod rashlađivanja mošta-vina kod sustava s više inox bačava.

U ponudi imam razne sklopnike, termostate, higrostate, regulatore napona, elektro ventile, ssr-releje, grijače i raznu ostalu opremu za inkubatore, sušare, pekare, preradu drva i plastike i slične namjene.

šaljem dostavom po želji o trošku kupca ili osobno preuzimanje.

ako se šalje običnom poštom uz avansno plaćanje na račun poštarina je 1 eur
ako se šalje preporučenom poštom uz avansno plaćanje na račun poštarina je cca 2,72 Eur,
Ako se šalje preporučenom poštom + plaćanje pouzećem cijena slanja je cca 4,7 Eur
Overseas dostava 6-7 eur ovisno o naćinu plaćanja
GLS dostava 8-9 eur ovisno o naćinu plaćanja

Features:
1. DIN Rail optional 1/2/4/8/16 channels relay interface modules
2. Sub-miniature intermediate power relay,approved TUV,UL and RoHS compliant
3. Switching current upto 10A at 250VAC or 30VDC
4. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use
5. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel
6. DIN Rail mountable for width TS15/28/35

Application:
Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC,
microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control
systems not being destroyed.

Data:
Input Operation Voltage Rated DC/AC±10%
Relay Mounting Soldered on PCB
Rated Load Current 10A 250VAC/30VDC
Max Inrush Current 10A
Coil Resistence 100mΩ(1A 6VDC)
Operate Time(at normal volt.) ≤10ms
Release Time(at normal volt.) ≤10ms
Input/Output Connections Screw terminal block
Wire Range 0.2~2.5mm2
Stripping Length 6-7mm
DIN Rail Mountable 15/28/35mm
Power Per Channel 0.45W
