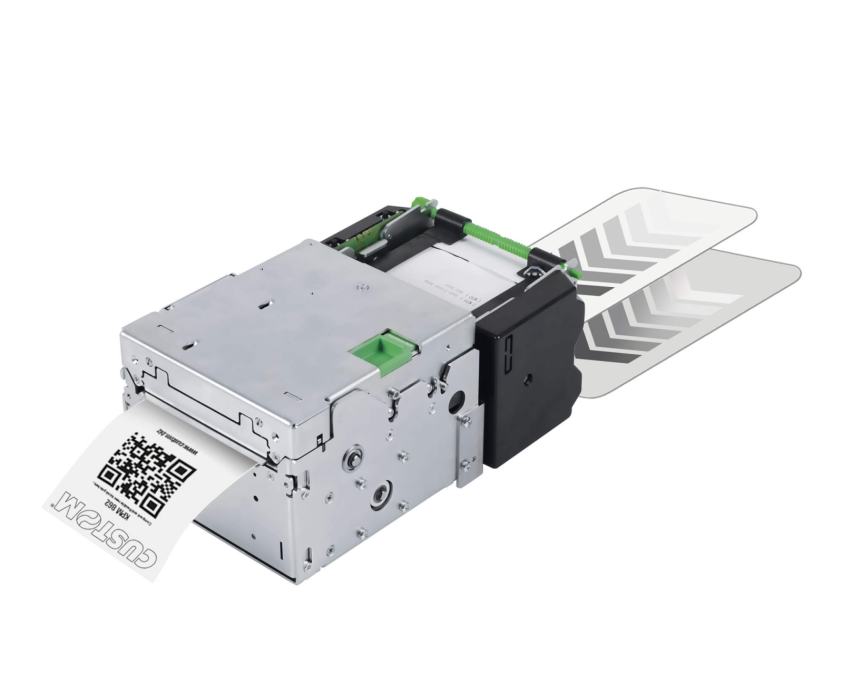

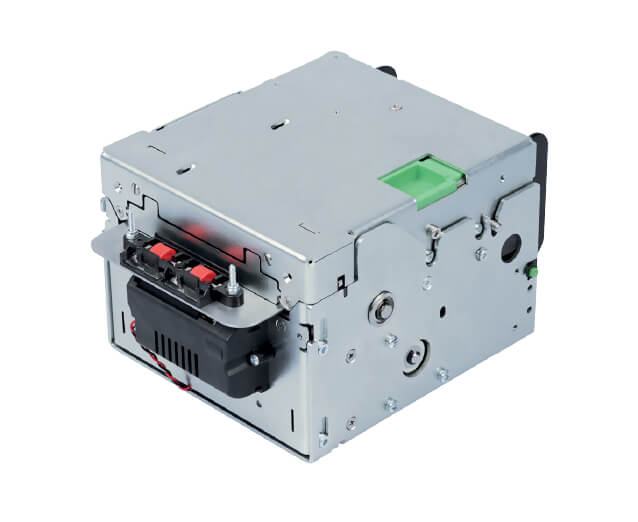

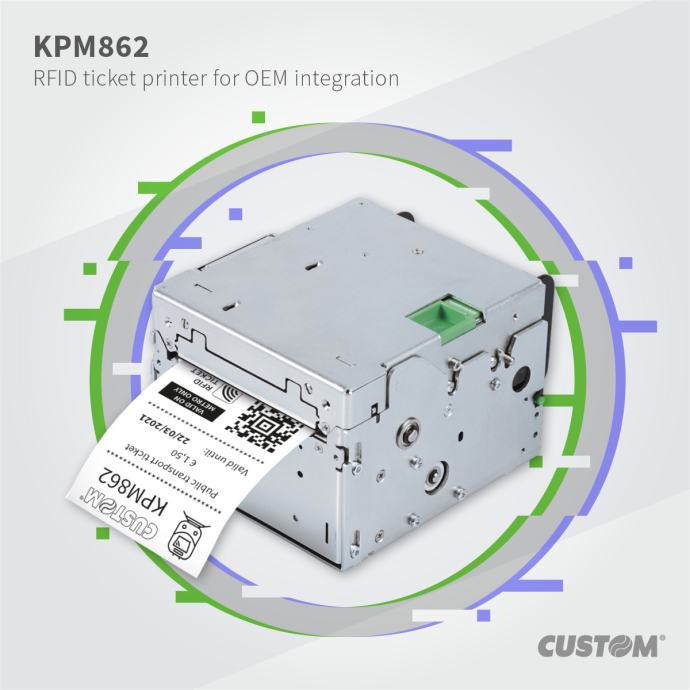

Printer Custom KPM862

Termalni kiosk ticket printer za papir 40-86mm sa RS232, USB i LAN spajanjem. Mogućnost printanja na dvije različite vrste papira. Čitanja RFID i barcode kao opcija.

Karakteristike:
Printing Method: Thermal with fixed head
Number of dots: 8 dots/mm
Resolution: 203 dpi
Printing (mm/sec): 220 mm/sec (high speed)
Character set: PC437, PC850, PC860, PC863, PC865, PC858
Supported Barcode 1D and 2D: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QRCODE, GS1 Databar
Printing Format: Height/Width from 1 to 8, bold, reverse, underlined, italic
Printing Direction: Normal, 90°, 180°, 270°
Paper width: from 40 mm to 86 mm
Paper weight: from 70 to 255 g/m²
Paper thickness: max 280 μm
Roll Dimension: max 300 mm
Sensors: CIS for notch/gap detection and "stock control" reading
Emulation: Cupps compliant native AEA 2012 support
Interfaces: RS232 / USB / Ethernet
Flash Memory: 2 MB internal + 8 MB external
RAM Memory: 640 KB internal + 8 MB external
Drivers: Self-installing Printer Driver - Win7, 8, 8.1, 10 (32 - 64 bit compatible). WHQL certified (only on request).
Self-installing USB Virtual RS232 Driver - Win7, 8, 8.1, 10 (32 - 64 bit compatible). WHQL certified (only on request);
Linux 32-64 bit compatible; Android, iOS, Windows Phone
Power supply: 24 Vdc ± 10%
Medium consumption: 1.12 A (12,5% dots turned on)
Head Life: 100Km / 100M pulses
MCBF: 1.500.000 cuts
Operating temperature: -20°C + 60°C
Dimensions:
163.8(L) x 96.5(H) x 152.5(W) mm (standard model)

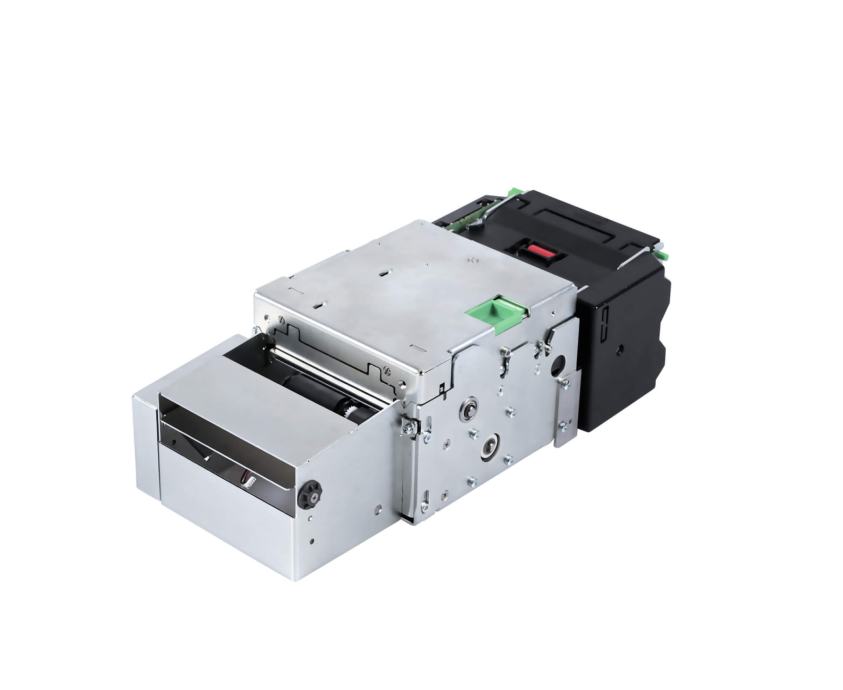

182.9(L) x 96.5(H) x 152.5(W) mm (model with ejector)
241.6(L) x 96.5(H) x 152.5(W) mm (model with selector)
240.9(L) x 96.5(H) x 155.5(W) mm (model with dual feeder)
260(L) x 96.5(H) x 155.5(W) mm (model with dual feeder + ejector)
318.7(L) x 96.5(H) x 155.5(W) mm (model with dual feeder + selector)

Cijene:
KPM862 - 1.446,00 EUR+PDV
KPM862 Dual Feeder - 1.928,00 EUR+PDV
Ejector kit - 154,00 EUR+PDV
Near paper end kit - 19,00 EUR+PDV

Za sve naše uređaje nudimo servis, rezervne dijelove i tehničku podršku.
