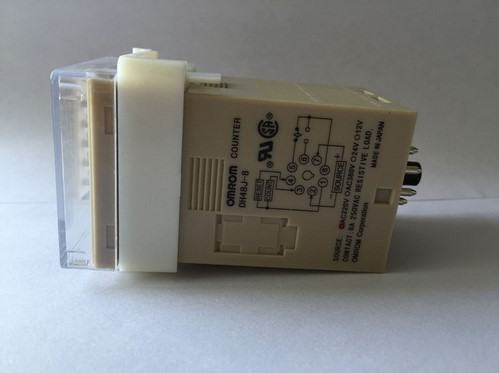

DH48J-8 220v AKTIVNI digitalni brojač COUNTER 1-999900

DH48J-8 AKTIVNI Precizni brojač koji može isključiti ili uključiti vaš uređaj ili opremu nakon što odbroji određeni broj ciklusa, obrtaja, proizvoda ili slično.
Brojač se aktivira-broji zatvaranjem kontakata npr mikroprekidačem.

Uz avansno plaćanje na račun i slanje običnom poštom poštarina je 10kn a ako odaberete plaćanje pouzećem poštarina je oko 30kn.

Odgovaram na sve upite bilo na mail ili mobitel...

Product Name Digital Counter Relay
Model DH48J
Count Range 1-999900
Power Source AC220V, 50/60Hz
Contact AC 250V 5A ( Resistive Load)
Count Speed
Digit Display 4

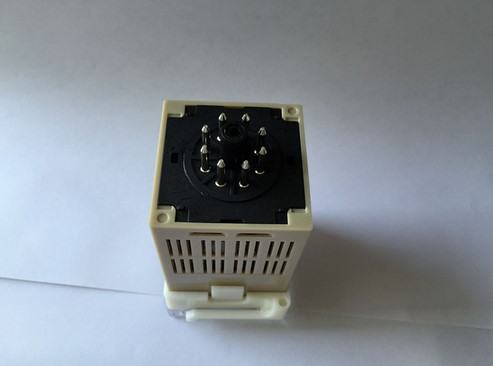

Pin Number 8
Marerial Plastic, Electrionic Parts
Color Gray
Size 10 x 5.5 x 5cm/4'' x 2.2'' x 2'' (L*W*H)
Net Weight 167g
Package Content
1 x Digital Counter Relay
1 x Socket

Detaljne specifikacije:
Model number DH48S-2ZH
Supply voltage 220Vac
Tolerance -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption 2W max
Setting method Dial switch
Indication method 8-segment 4-digital display
External dimensions 48x48x97.4 mm
Perforate dimensions 45 10x45 10 mm
Contact rating 3A@250Vac, 5A@28Vdc
Repeat accuracy ±0.3%, ±0.05 sec
Setting error ±0.5%, ±0.05 sec
Termination 8 pins
Mounting Panel, din rail
Matched socket PF083A, PF083A-E
Mechanical life 1x106
Electrical life 1x105
Operating temperature 0 to 50 °C (32 to 122 °F)
Operating humidity 95% RH max, non-condensing
Alias name DH48S digital timer
