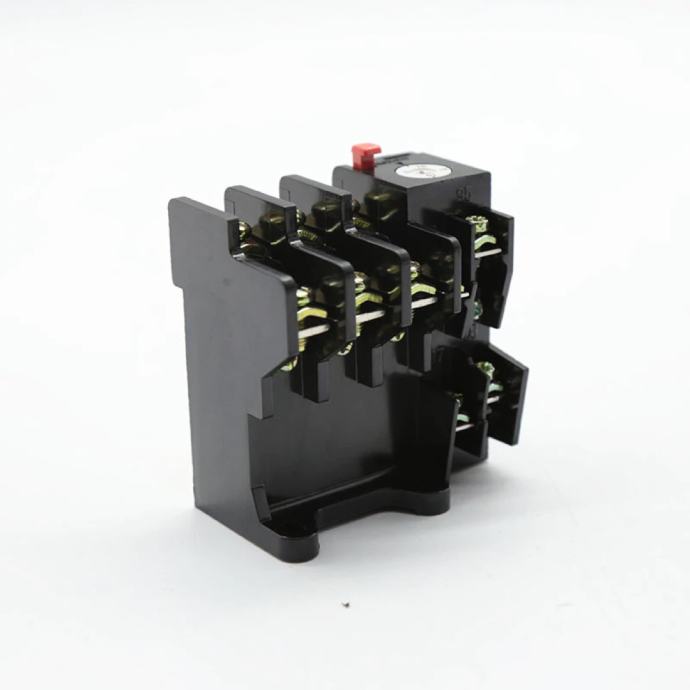

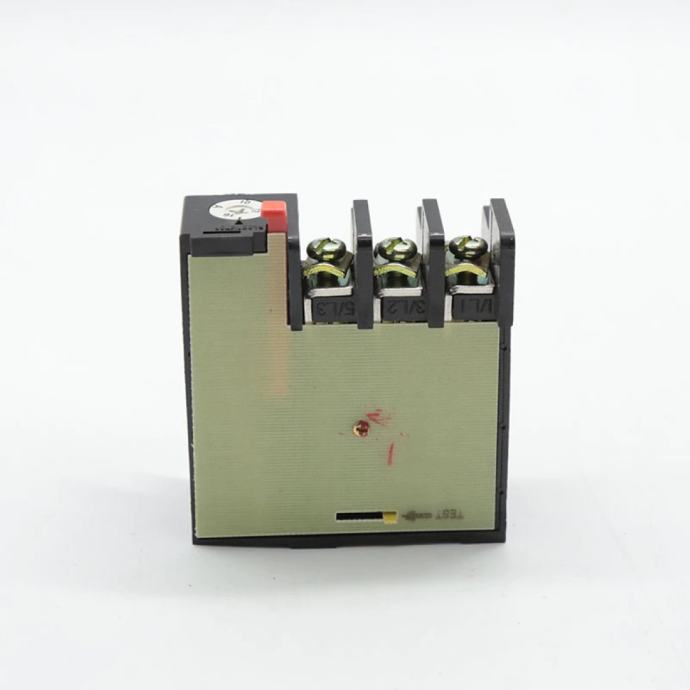

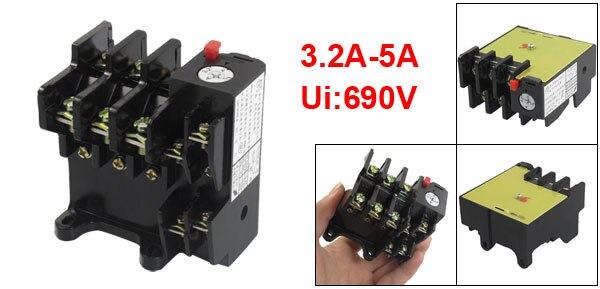

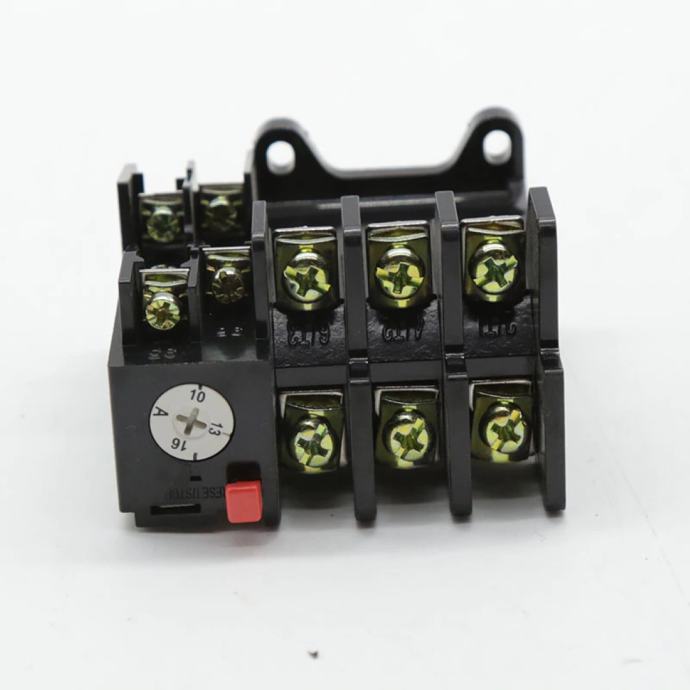

Motorna zaštita termalna bimetal JR36-20 3,2-5A 6,8-11A 10-16A 14-22A

Motorna zaštita termalna bimetalna 1NO + 1NC kontaktima za trofazne motore tipa JR36-20
dostupne su 4 varijante za različite snage motora:
JR36-20 3,2-5A
JR36-20 6,8-11A
JR36-20 10-16A
JR36-20 14-22A

U ponudi imam razne sklopnike, termostate, higrostate, regulatore napona, elektro ventile, ssr-releje, grijače i raznu ostalu opremu za inkubatore, sušare, pekare, preradu drva i plastike i slične namjene.


šaljem dostavom po želji o trošku kupca ili osobno preuzimanje.

ako se šalje preporučenom poštom (ili tisak paket slanje) uz avansno plaćanje na račun poštarina je 3,12 Eur
Ako se šalje preporučenom poštom + plaćanje pouzećem cijena slanja je cca 4,92 Eur
Overseas dostava 6-7 Eur ovisno o naćinu plaćanja
GLS dostava 8-9 Eur ovisno o naćinu plaćanja

Specifikacije:
JR36 series thermal relay is suitable for AC 50Hz or 60Hz, main circuit rated voltage up to 660V, current up to 160A, used as protecting AC three-phase motor against overload, and has the functions of breaking phase protection, temperature compensation. It can automatically and manually reset, too. The product conforms to GB14048.4, IEC60947-4 stardand.
Product Name Thermal Overload Relay
Model JR36-20
Thermal Contact 1 NO(97-98), 1 NC(95-96)
Pole Number 3 Pole
Thermal Relay Rated Current 5A
Adjustable Current Range 3.2A-5A, 6,8-11A 10-16A 14-22A
97-98 0.47A
95-96 0.47A
Ue(AC-15) 380V
Ui (AC-15) 690V
Ith 10A
Material Plastic, Electronic Components

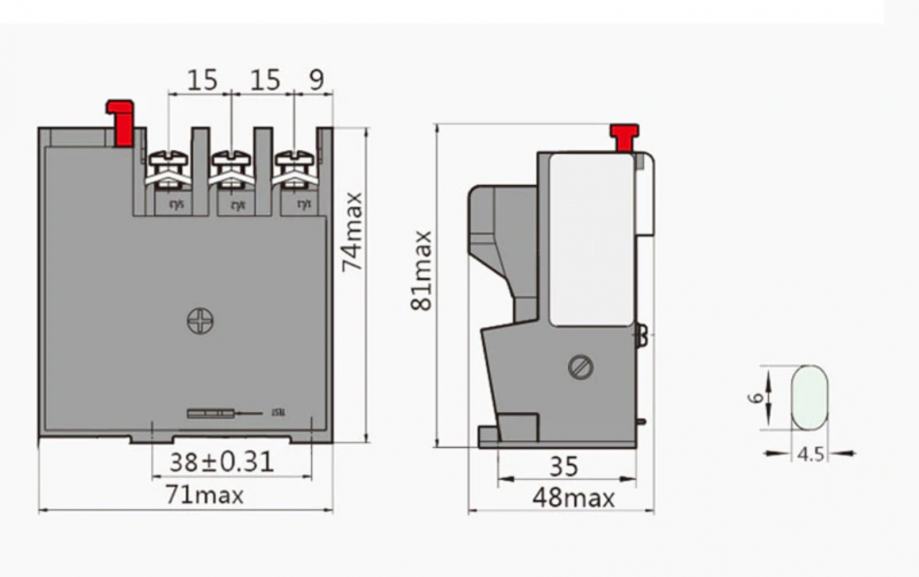

Mounting Thread Size 5.6 x 4.1cm / 0.22" x 0.159" (L*W)
Total Size (Approx) 7.1 x 4.7 x 7.9cm / 2.8" x 1.9" x 3.1" (L*W*H)
Color Black, Yellow
Net Weight 164g
Package Content 1 x Thermal Overload Relay
