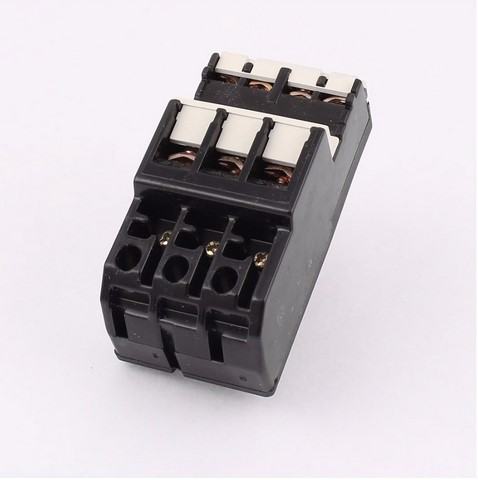

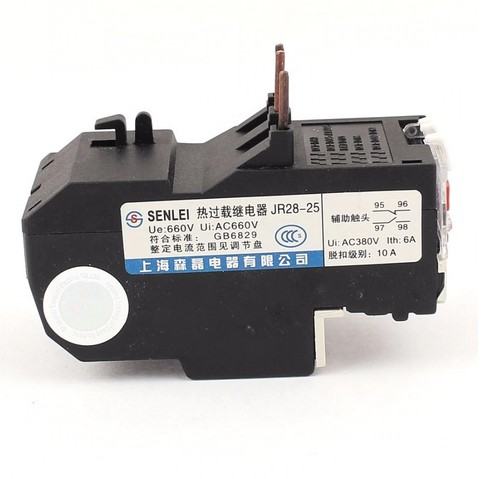

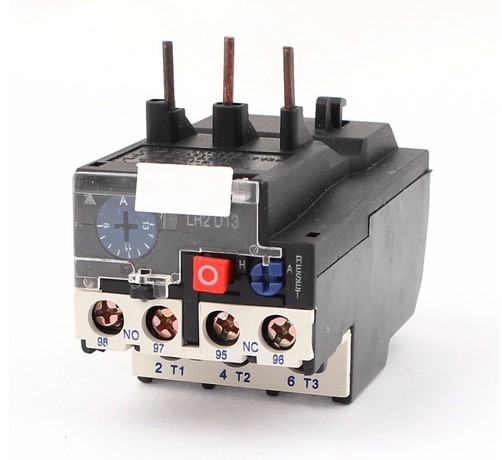

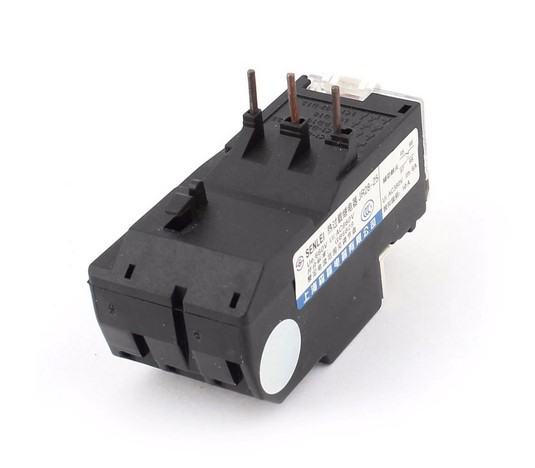

Motorna zaštita termalna bimetal JR28-25 7-10A 9-13A 12-18A 17-25A

Motorna zaštita termalna bimetalna 1NO + 1NC kontaktima za trofazne motore tipa JR28-25
dostupne su 4 varijante za različite snage motora:
JR28-25 7-10A
JR28-25 9-13A
JR28-25 12-18A
JR28-25 17-25A

U ponudi imam razne sklopnike, termostate, higrostate, regulatore napona, elektro ventile, ssr-releje, grijače i raznu ostalu opremu za inkubatore, sušare, pekare, preradu drva i plastike i slične namjene.


šaljem dostavom po želji o trošku kupca ili osobno preuzimanje.

ako se šalje preporučenom poštom (ili tisak paket slanje) uz avansno plaćanje na račun poštarina je 3,12 Eur
Ako se šalje preporučenom poštom + plaćanje pouzećem cijena slanja je cca 4,92 Eur
Overseas dostava 6-7Eur ovisno o naćinu plaćanja
GLS dostava 8-9Eur ovisno o naćinu plaćanja

Specification:
Product Name Thermal Overload Relay
Model JR28-25
Auxiliary Contact 1NC 1NO
Phase 3
Adjusting Current Range 7-10A 9-13A 12-18A 17-25A
Ui AC 380V
Ith 6A
Ue 660V
Terminal Size 2 x 13mm/0.08" x 0.5"(D*L)
Total Size 8.8 x 4.4 x 4.7cm / 3.5" x 1.73" x 1.85" (L*W*T)
Color Black, White
Net Weight 165g
Package Content 1 x Thermal Overload Relay

Description:

Push the red button to stop, push the blue button to reset.
Electric motors need overcurrent protection to prevent damage from over-loading the motor, or to protect against short circuits in connecting cables or internal faults in the motor windings.
Features phase-failure protection, temperature compensation, stop button, test button and manual/automatic reset.
