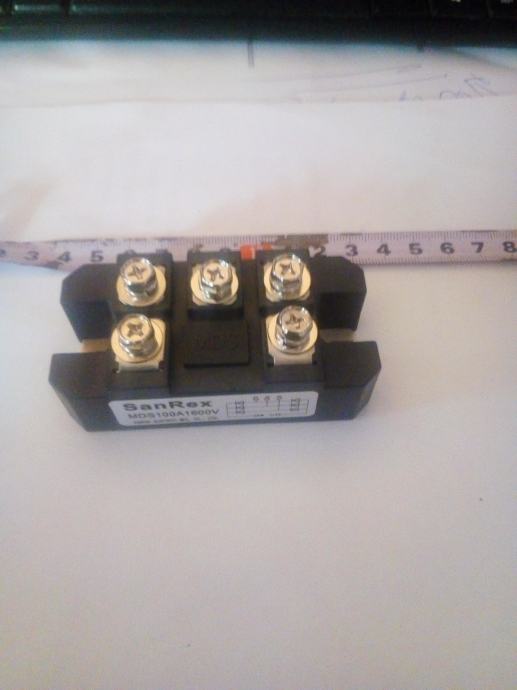

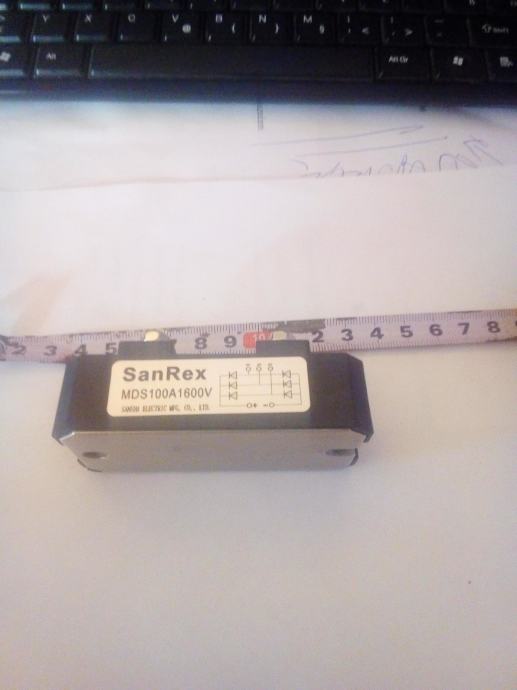

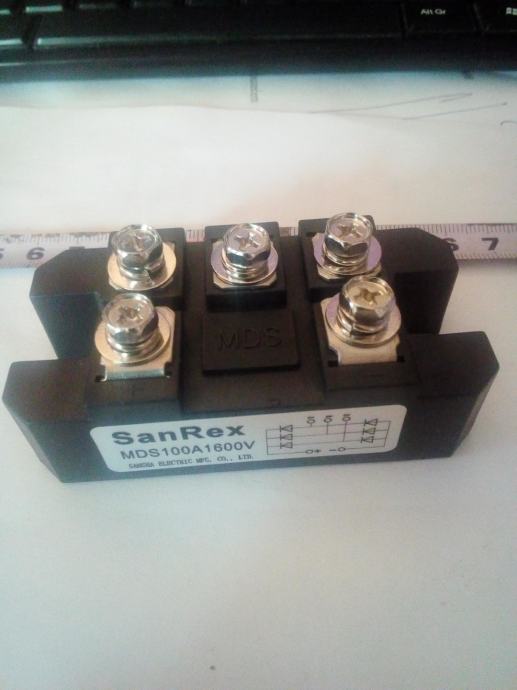

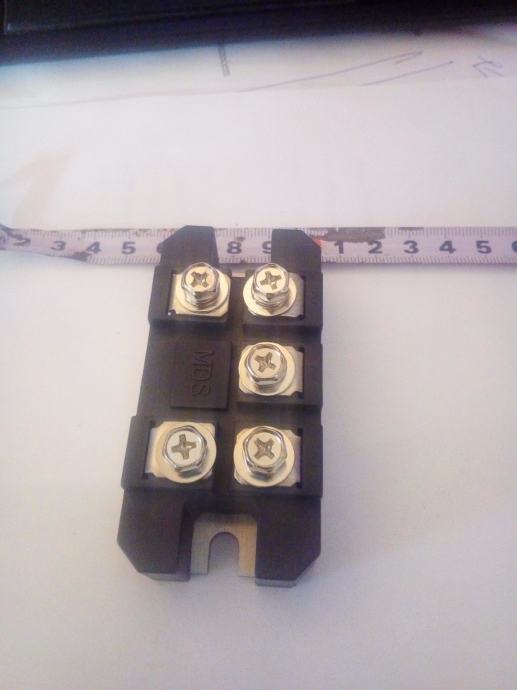

Ispravljač Graetz Grec 100A 1600V TROFAZNI diodni most MDS100A1600V

Grecov spoj velike snage model MDQ100A-1600V za razne namjene npr. generatore

Slanje robe je na trošak kupca dostavom po izboru
trošak je 1 eur običnom poštom i avansno plaćanje na račun
oko 2,5 eur za preporučeno slanje poštom i avansno plaćanje na račun
ili oko 4,7 eur za preporučeno slanje i plaćanje pouzećem
Overseas ili GLS dostava je 5-8 eura ovisno o dostavi i naćinu plaćanja.

U ponudi imam i razne druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.


Specification:

Product Name : Bridge Rectifier;Model : MDS-100A;Max. Average Forward Rectified Current : 100A
Repetitive Peak Reverse Voltage : 1600V;Terminals : 5
Dimension : 80 x 40 x 32mm/ 3.1" x 1.6" x 1.2" (L*W*T);Mounted Hole Dia. : 6mm / 0.24"
Material : Metal, Plastic;Color : Black, Silver Tone
Net Weight : 172g;Package Content : 1 x Bridge Rectifier


Power Diode Module MDS-100A is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration.
Output DC current is 100Amp
Repetitive peak reverse voltage is up to 1,600V.
Isolated mounting base, High reliability by unique glass passivation.
Applications: AC, DC Motor Drive/AVR/Switching -for three phase rectification.
