Ispravljač Graetz 100A 1600V Grecov spoj diodni most Grec

Grecov spoj velike snage model MDQ100A-1600V za razne namjene

Slanje robe je na trošak kupca dostavom po izboru
trošak je 1 eur običnom poštom i avansno plaćanje na račun
oko 2,5 eur za preporučeno slanje poštom i avansno plaćanje na račun
ili oko 4,7 eur za preporučeno slanje i plaćanje pouzećem
Overseas ili GLS dostava je 5-8 eura ovisno o dostavi i naćinu plaćanja.

U ponudi imam i razne druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.


Specification:
Type: Rectifier bridge, high pressure silicon
material: Silicon
Color: Black
Number of pins: 4
Modle: MDQ100A
The main parameters: 100A

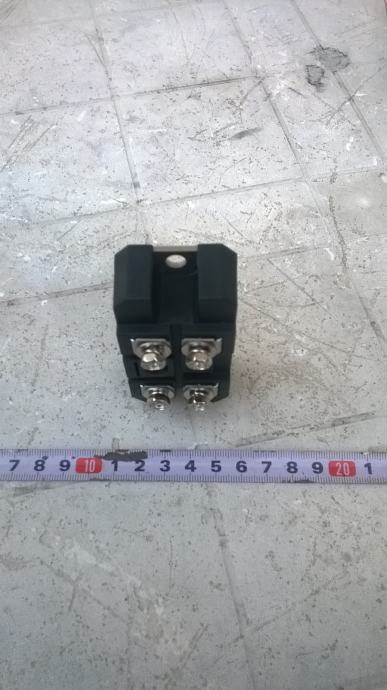

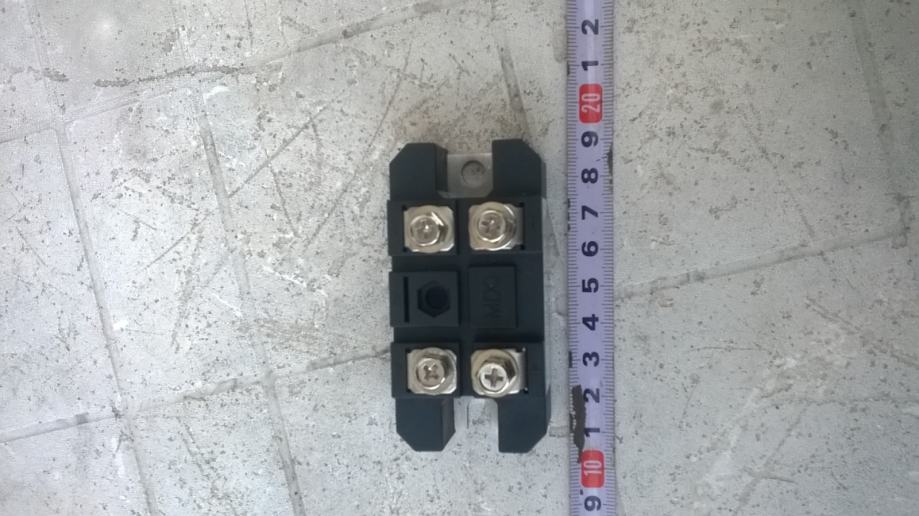

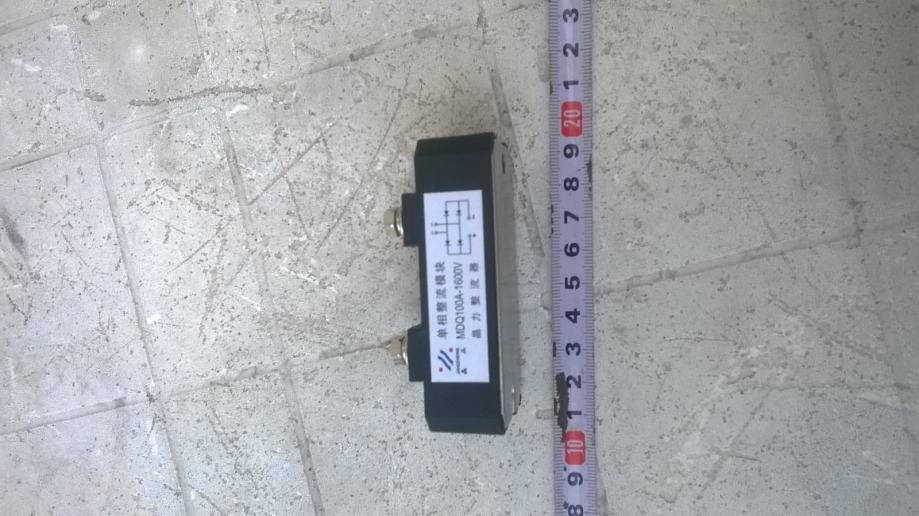

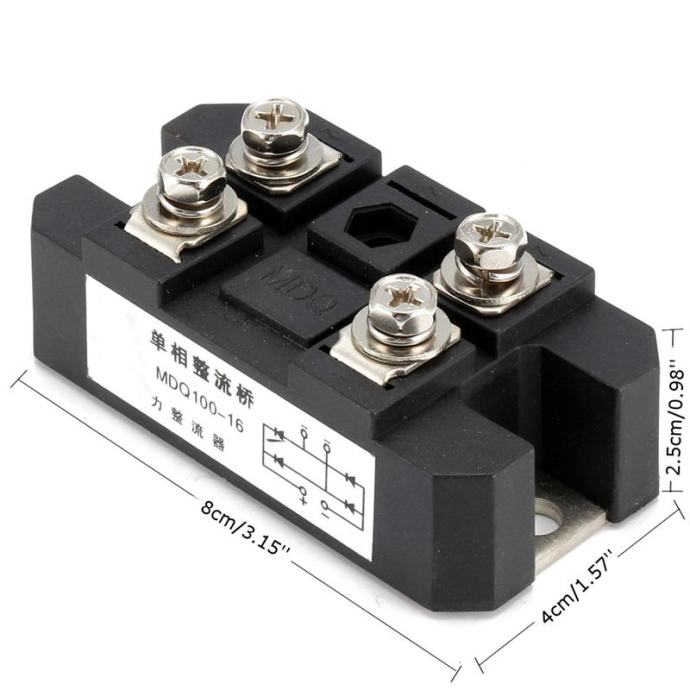

Size:
Length: 8cm/3.15''
Width: 4cm/1.57''
Height: 2.5cm/0.98''
Side hold diameter: 0.5cm/0.20''

Feature:

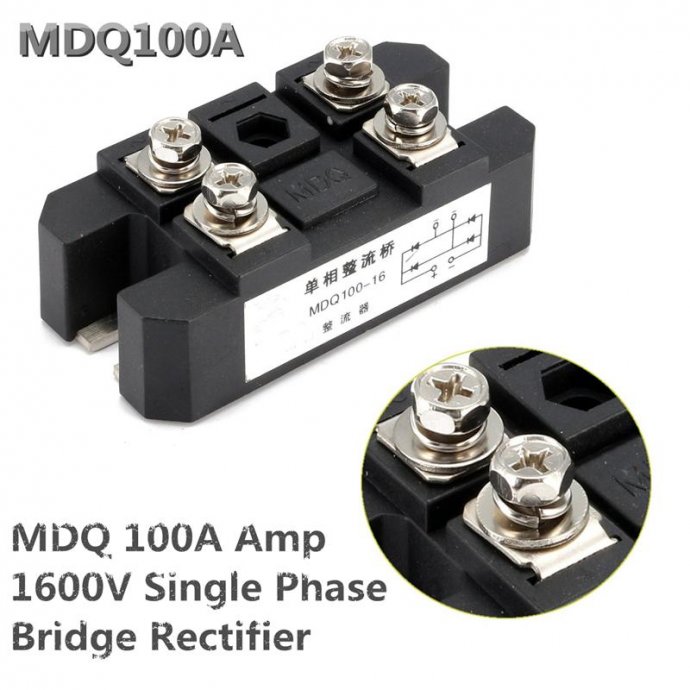

＞ MDQ 100A Single Phase Diode Metal Case Bridge Rectifier
＞ Convert your three phase current input into DC with this Bridge Rectifier
＞ This bridge rectifier can be used in a wide variety of applications
＞ Chip and floor electrical insulation, 2500V AC voltage;
＞ Vacuum + hydrogen protection welding technology;
＞ Welding structure, excellent temperature characteristics and power cycle capacity;
＞ Easy to install, easy to use and maintenance;
＞ Small size, light weight;
＞ The maximum working temperature of 150 ℃;
＞ Forward pressure drop is small

Applications:
1, the equipment of the DC current;
2, P W M inverter input rectifier power supply;
3, DC motor excitation power;
4, switching power supply input rectifier;
5, soft start capacitor charging;
6, electrical drag and auxiliary current;
7, inverter welding machine;
8, current charging DC power supply.
