Inverter+baterija

Prodajem hibridni off-grid inverter 24/220v 4.2kw i dvije smart baterije lifepo4 od 100ah

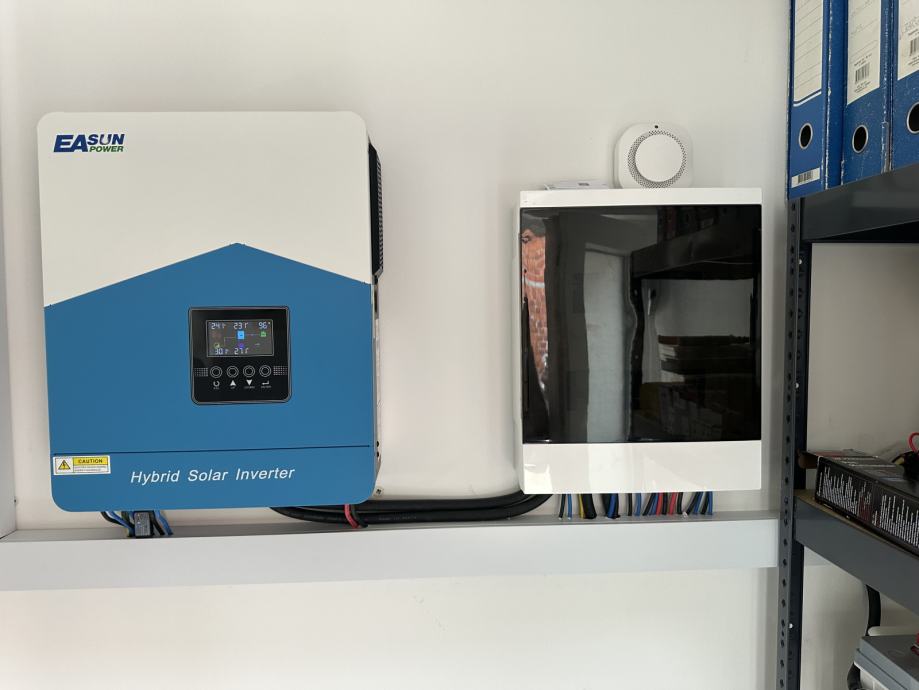

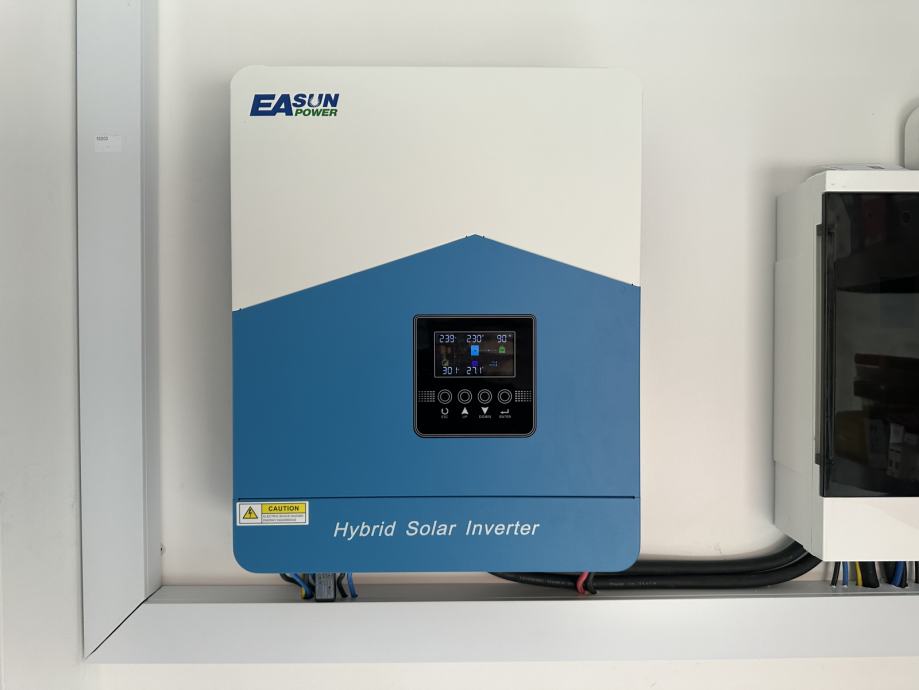

Inverter specifikacije:
Parameter Value
Model ISolar-SMH-III-4.2KW-wifi
Capacity 4200VA/4200W
Parallel Capability No
Lithium Battery Activation YES (By PV or Utility)
Lithium Battery Communication YES (RS485)
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170–280VAC (PC); 90–280VAC (Home)
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230VAC ±5%
Surge Power 8000VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (PC); 20ms (Home)
Peak Efficiency (PV to INV) 96%
Peak Efficiency (Battery to INV) 93%
Overload Protection 5s @ ≥140% load; 10s @ 110–140% load
Crest Factor 3:1
Admissible Power Factor 0.6–1 (inductive or capacitive)
BATTERY
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
OverCharge Protection 31VDC
Charging Method CC / CV
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Max. PV Array Power 6200W
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 60–500VDC
Max. Solar Input Current 18A
Max. Solar Charge Current 120A
Max. AC Charge Current 80A
Max. Charge Current (PV+AC) 120A
PHYSICAL
Dimensions (D×W×H) 423 × 290 × 100 mm
Package Dimensions 560 × 375 × 185 mm
Net Weight 9 kg
Communication Interface RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Operating Temperature Range -10°C to 50°C
Storage Temperature -15°C to 50°C
Humidity 5% to 95% RH (Non-condensing)

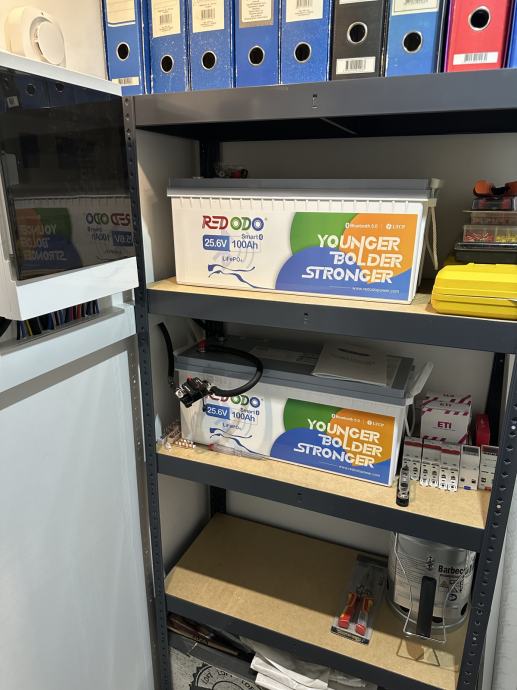

Baterije specifikacije:
SPECIFIKACIJE

BATERIJA

* Jamstvo: 5 godina
* Životni vijek ciklusa: 4000–15000 ciklusa
* Nazivni napon: 25,6 V
* Nazivni kapacitet: 100 Ah
* Energija: 2560 Wh
* Maksimalno proširenje (paralelno i serijski): 4P2S
(maks. 4 baterije paralelno i 2 serijski)

BMS

* BMS: 100 A

⸻

PUNJENJE

* Metoda punjenja: CC/CV
(konstantna struja / konstantni napon)
* Napon punjenja: 28,8 ±0,4 V
* Preporučena struja punjenja: 20 A (0,2C)

⸻

TEMPERATURA

* Temperatura punjenja: 0 °C do 50 °C
* Temperatura pražnjenja: -20 °C do 60 °C
* Temperatura skladištenja: -10 °C do 50 °C

⸻

OSTALO

* Težina: cca 21,8 kg
* Dimenzije: 532 × 207 × 215 mm
* Stupanj zaštite: IP65
(zaštićeno od prašine i mlazova vode)

Sve je spojeno i može se vidjeti kako radi. Prodaja zbog prelaska na jači sustav.
