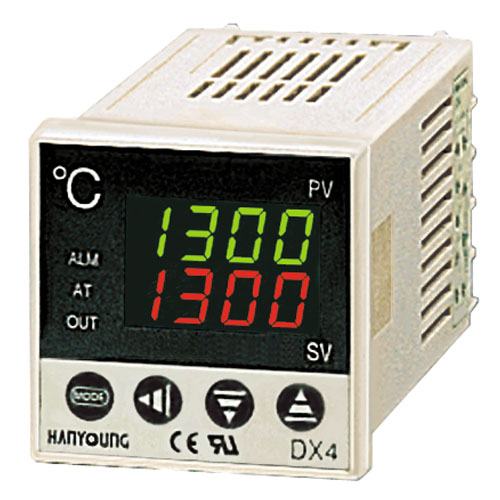

DX4, Digital PID Temperature Controller - Electronic Thermostat

Type Name DX4
48 (W) x 48 (H) 100 (D)

Brand: HANYOUNG
Model : DX4-KMSNR
Input signal : K
Output : Relay
Hole Size: 45 * 45
Working voltage : AC100 ~ 240V

Function Built-in automatic calculation function associated input / correction function / set limits on the lower function · Alarm ALH, ALL / decimal display
Supply Voltage 100-240VAC (50/60? Sharing )
Power Consumption Approximately 15VA or less Approximately 12VA or less
Enter Heat transfer with : K · J · R, resistance thermometer : KS Pt100/DIN Pt100 voltage / current
Control Output Contacts 250VAC 3A ( resistance load ) SSR: 12VDC pulse voltage ( load impedance of 800 or more )
Current output : 4-20mADC ( load impedance of 600 or less )

Regulating action PID action or ON / OFF
Alarm Output Contact output : ALH, ALL (250VAC 3A)
Loop break alarm Contact output : 250VAC 3A ( resistance load )
Setting method According to UP / DOWN Key Digital Set
Indicating the way Digital display (PV: Green , SV: red )
PV: 14mm, SV: 10.5 mm PV: 11mm, SV: 8 mm PV: 10mm, SV: 8 mm PV: 14mm, SV: 8 mm PV: 8mm, SV: 8 mm
Setting and indication accuracy With heat transfer : 3 take large but one , R 0 ~ 199 between the resistance thermometer 5 : 2 takes a large one
Power and memory Semi-permanent
Withstanding Voltage 2,000 VAC 50/60·1 minute (between charging terminals )
Vibration resistance Malfunction 2-55?, X, Y, Z directions for 10 minutes
Durable 10-55 ? , 0.76 mm , X, Y, Z directions for two hours
Impact Malfunction 100·6 directions , 3 times each
Durable 300·6 directions , 3 times each
Life Machinery More than 10 million times ( Relay type )
Electric More than 30 million times ( Relay type )
Use moderate ambient temperature · 0 ~ 50 · 35 ~ 85% RH ( not allowed to have condensation )


Type Name Type Fan Content
DX - Digital Temperature Controller
Appearance 2 48 (W) x 96 (H) x 100 (D) mm
3 96 (W) x 48 (H) x 100 (D) mm
4 48 (W) x 48 (H) x 100 (D) mm
7 72 (W) x 72 (H) x 100 (D) mm
9 96 (W) x 96 (H) x 100 (D) mm
Enter K K (CA)
J J (IC)
R R (PR13%)
D KS Pt 100
P DIN Pt 100
V 1 - 5 V d.c
C 4 - 20 mA d.c
F 0 - 10 V d.c
Control Output M Relay contact
C Current (4 ~ 20 mA DC)
S SSR drive ( voltage pulse 12 V DC)
Alarm Output S Alarm Output 1:00 (DX4 model alarm only 1:00 )
W Alarm output 2 points ( standard type )
Choose a style (Option) A Transmission output ( measured value of 4 ~ 20 mA DC)
N No
Control action R Reverse action control ( heating control )
D Positive action control ( cooling control )

http://advanced-a.com/content/datasheets/hanyoung/DX2_3_4_7_9.pdf

http://www.ecplaza.net/eparts/product/10000095_10004692/dx4-digital-pid-temperature-controller.html

------------------------

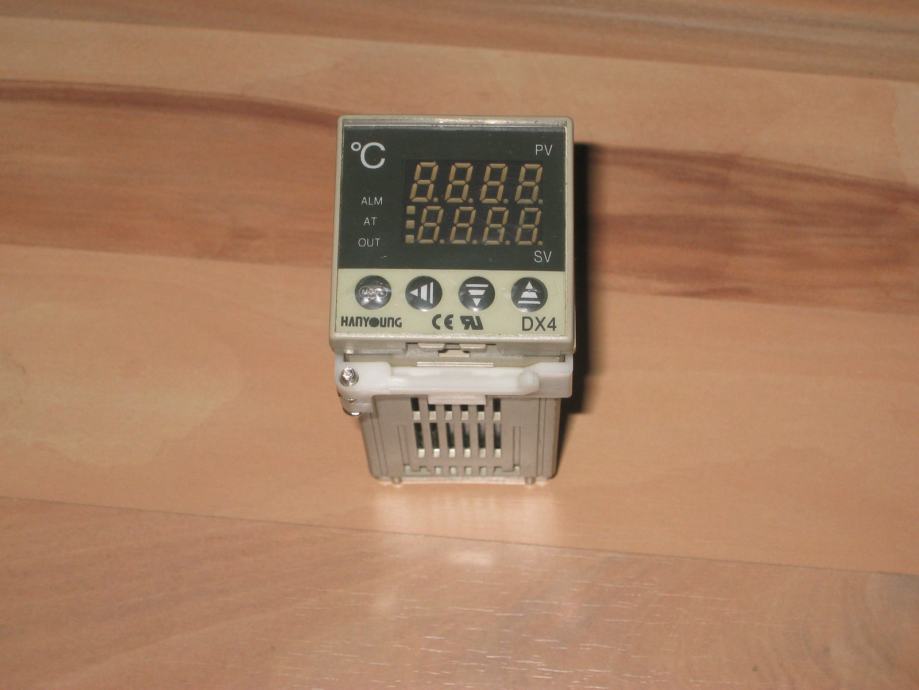

Novo, nekoristeno
Kupljeno greskom, placeno oko 250 USD

Cijena na internetu: US $278.73 (Approximately )

------------------------

- Moguce preuzimanje u Zagrebu ili saljem postom
