Digitalni WIFI termostat DTC1210 220V -40-99,9C TUYA

Digitalni WIFI termostat DTC1210 220V -40-99,9C internet TUYA
Jednostavan termostat za grijanje i hlađenje, opcija dodatnog praćenja temperature i kontroliranja termostata preko mobitela ili tableta putem TUYA aplikacije.

Cijena uređaja je 30,00 Eur (24,00 Eur + PDV)


Slanje robe je na trošak kupca dostavom po izboru
trošak je 1 Eur običnom poštom i avansno plaćanje na račun
2,72 Eur za preporučeno slanje poštom i avansno plaćanje na račun
5 Eur za OVERSEAS dostavu i avansno plaćanje na račun
8 Eur za GLS dostavu i avansno plaćanje na račun
4,7 Eur za preporučeno slanje i plaćanje pouzećem
6 Eur za OVERSEAS dostavu i plaćanje pouzećem
9 Eur za GLS dostavu i plaćanje pouzećem

U ponudi imam i druge modele timera, brojača, termostata, releja, grijača, prekidača i razne druge elektro opreme.

Specification:

Product name: Thermostat
Brand: Deek-Robot
Product model: DTC1201NTC Sensor
Power supply voltage: AC 110 -230V
Temperature range: -40℃ -99℃
Temperature measurement accuracy: ±1℃ (-40℃ -70℃)
Sensor cable length: 100cm
Sensor cable type: NTC

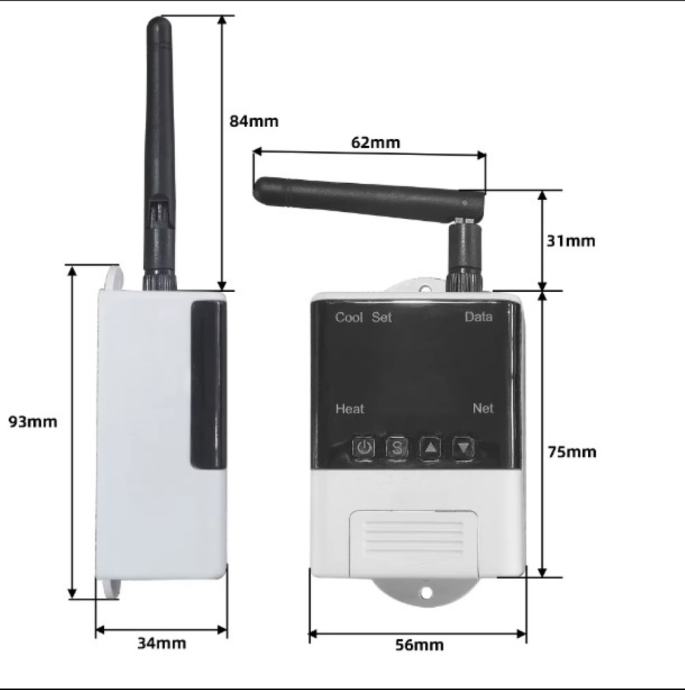

Size: 93mm*56mm*85mm
Output capacity: cooling (10A/250VAC) heating (10A/250VAC)
WIFI connection, remote control via smartphone or tablet.

Setting parameters:

When the thermostat is working normally, press and hold the'S' key for more than 3 seconds to enter the parameter modification mode, the'Set' indicator is on, the digital tube displays the code of the first menu item'F1', press the'∧' or'∨' key The code of the menu item can be adjusted up or down, press the'S' key to display the parameter settings of the current menu, hold down the'S' key, and then short press the'∧' or'∨' key to increase or decrease and display the current menu Parameter setting value; press and hold the'S' key, and long press the'∧' or'∨' key to quickly increase or decrease and display the parameter setting value of the current menu.
Simultaneously press and hold the'∧' and'∨' keys, then power on, and the parameters will be restored to the factory settings.

Operating instructions:

When the thermostat works normally, press and hold the power button for more than 3 seconds to turn off the thermostat. When the thermostat is off, press and hold the power button for more than 3 seconds to turn on the thermostat.
When the thermostat is working normally, the digital tube displays the current temperature measurement value, and performs automatic recognition and conversion of the cooling and heating working mode.
When the measured temperature ≥ temperature set value + temperature difference set value, enter the cooling state, the Cool indicator lights, the refrigeration relay normally open contact is closed; The Cool indicator flashes, indicating that the refrigeration equipment is in the state of delay protection of the press; when the temperature is measured ≤Temperature setting value, the Cool indicator is off, and the normally open contact of the cooling relay is disconnected.
When the measured temperature ≤ temperature set value-temperature difference set value enters the heating state, the Heat indicator lights, the heating relay normally open contact is closed; when the measured temperature ≥ temperature set value, the Heat indicator turns off, the heating relay normally open contact disconnect.

Indicator status:

Cool indicator (Cool and Heat indicators cannot be on at the same time):
On: cooling work
Off: cooling off
Flashing: Press delay

Heat indicator:
On: heating work
Off: heating off

Set indicator:
On: parameter setting status
Data indicator (yellow light: distribution network indicator):
Data transmission indicator

Net indicator (indicating whether the APP is successfully connected to the device):
On: online
Blinking: offline

Menu function:

1. Temperature setting (ambient temperature required by the user): the user can adjust it on the thermostat or APP, the adjustment range is -40 to 99.9 degrees Celsius
2. Temperature difference setting: set the difference between the heating and cooling target temperature when working at a constant temperature; for example, the target temperature is 40 degrees, the temperature difference is set to 2 degrees, stop heating after heating to 40 degrees, and enter the constant temperature mode , When the temperature drops to 38 degrees, re-enter the heating mode, this value differs by 2 degrees, this value can be adjusted by the host or APP, the adjustment range is 0 to 10 degrees Celsius
3. Compressor delay: This function is generally used for compressor refrigeration. If the temperature controller is used for refrigerator freezer, this value must be set. The general setting value is 3-6 minutes according to the back pressure of the compressor. APP to adjust, the adjustment range is 0 to 10 minutes
4. Temperature correction: used to correct the temperature value currently detected by the thermostat, the correction range is 0 to 10 degrees Celsius

Packing List:

1 * Wireless Digital Temperature Controller
1 * Temperature Sensor Cable
