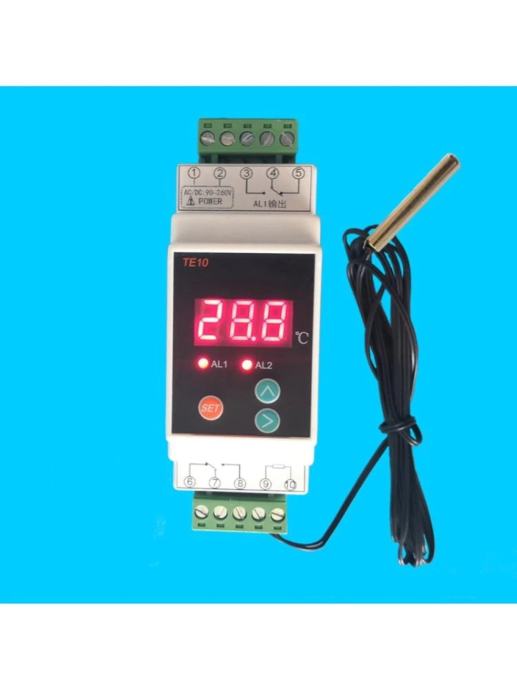

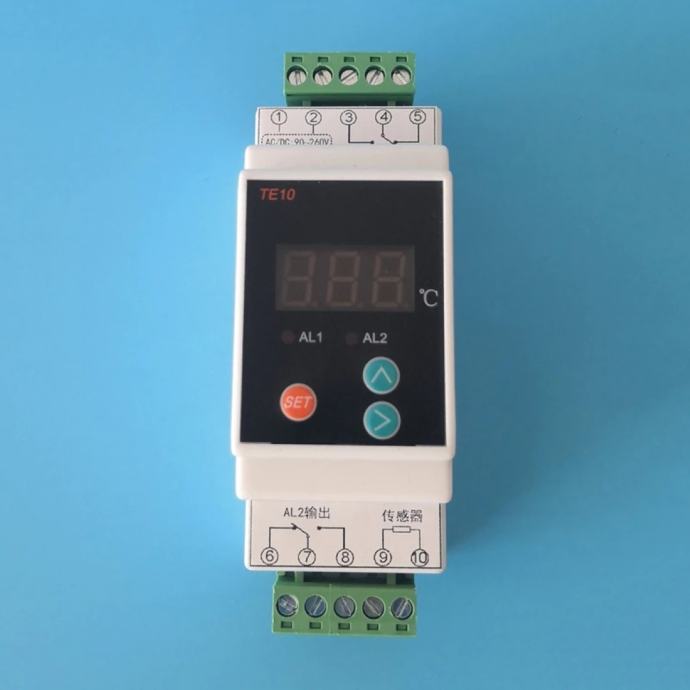

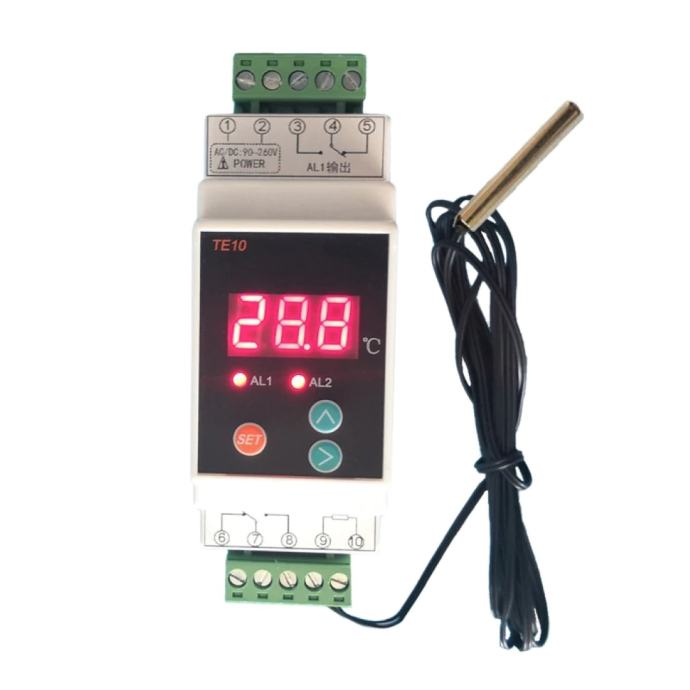

Digitalni termostat TE10 DIN šina -40 do +110C 85-260VAC

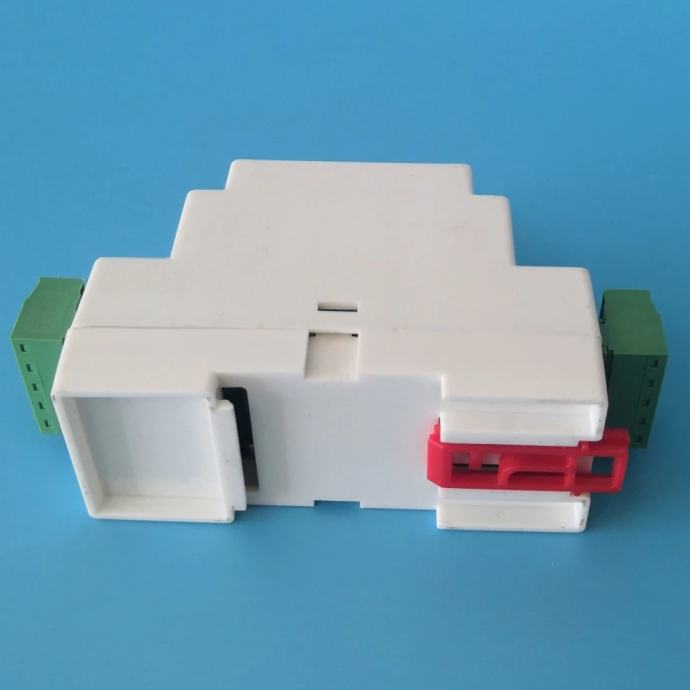

Digitalni termostat TE10 DIN šina -40 do +110C 85-260VAC. Može se montirati na DIN razdjelnicu među automatske osigurače, zauzima prostor kao 2 automatska osigurača. Dolazi s NTC 10K sondom (kabel sonde može se produljiti i do nekoliko desetaka metara u slučaju potrebe). Moguće namjene: kontrola sustava za spriječavanje zamrzavanja vodovodnih cijevi, rina, krovova.... za mini sušare, regulaciju temperature prostora itd. itd. Prikaz temperature je po 0,1C a podešavanje je po 1C.
Ugrađeni relej može pokretati npr. pumpu snage do 200W ili električne grijače do cca 500-600W. Za veće snage potrebno je koristiti sklopnike ili SSR releje koji se isto imam u ponudi....


U ponudi imam razne druge sonde, termostate te raznu drugu elektroničku opremu.


šaljem dostavom po želji o trošku kupca ili osobno preuzimanje
ako se šalje preporučenom poštom uz avansno plaćanje na račun poštarina je 15kn
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 30kn
Slanje GLS-om + plaćanje pouzećem cijena slanja 55,00kn (dostava u roku 1 radni dan...)

Specifications:
Power supply: working voltage AC90~260V; power consumption is less than 2W (other power supplies can be customized)
Measuring accuracy: 0.5%FS±1 Measuring range -40~110℃
Display character height: 0.36 inches high brightness red LED (other colors can be customized)
Use environment: -10~60℃ (relative humidity below 80%)
Dimensions: 110*36 *60 (mm)
Sensor Length: 1.5m
Package included:
1* Din Rail Thermostat
1* Sensor
-------
Code Table:
TY1: Relay 1 output alarm type
0: Upper limit alarm, temperature ≥ AL1, the relay is closed, ≤ (AL1-HY1), the relay is off.
1: Lower limit alarm, temperature ≤ AL1, the relay is closed, ≥ (AL1+HY1), the relay is off.
2: Upper and lower limit alarm. Temperature ≥ AL1, the relay is closed, ≤ HY1, the relay is closed.
AL1: Relay 1 action value
-40.0~130.0
HY1: Relay 1 return difference
-40.0~130.0
TY2: Relay 2 output alarm type
0: Upper limit alarm, temperature ≥ AL2, the relay is closed, ≤ (AL2-HY2), the relay is off.
1: Lower limit alarm, temperature ≤ AL2, the relay is closed, ≥ (AL2+HY2), the relay is off.
2: Upper and lower limit alarm. Temperature ≥ AL2, the relay is closed, ≤ HY2, the relay is closed.
AL2: Relay 2 action value
-40.0~130.0
HY2: Relay 2 return difference
-40.0~130.0
SEC: Relay action delay value
0-999 seconds
When the relay AL1 or AL2 reaches the operating conditions, it will delay the action for SEC seconds. When it is 0, there is no delay.
LC: Temperature deviation correction value
-20.0~20.0 (display value = measurement value + LC)
