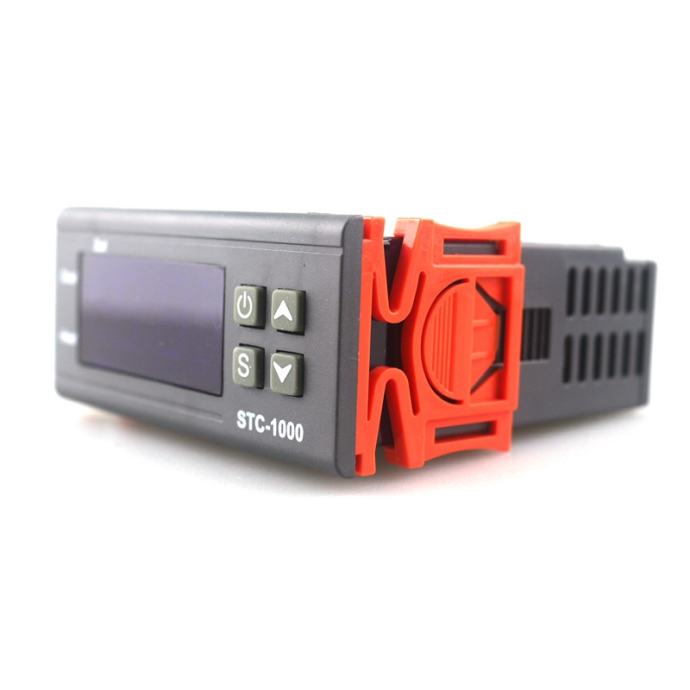

Digitalni Termostat STC-1000 24V za klime i webasto itd 0,1C

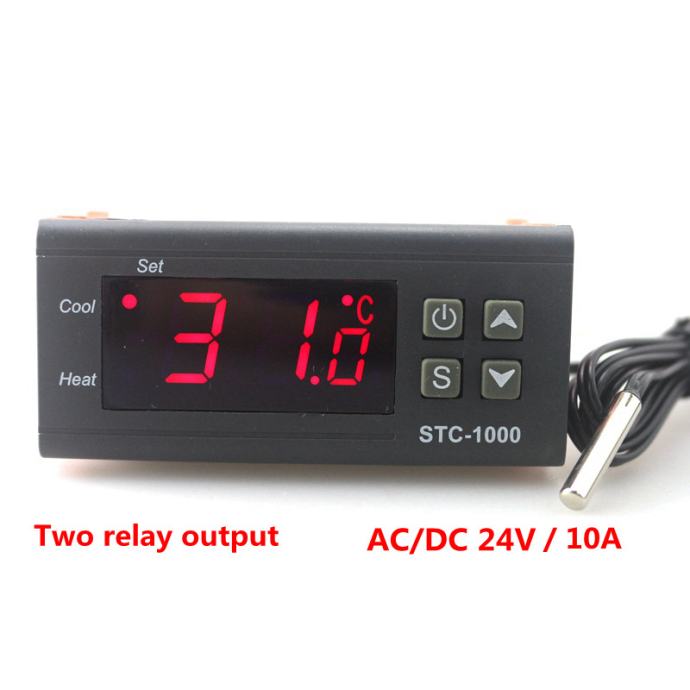

Dvostruki relej 10A za grijanje i hlađenje, 24V napon rada, podešavanje i rezolucija 0,1 stupanj, minimalna histereza 0,3 stupnja.

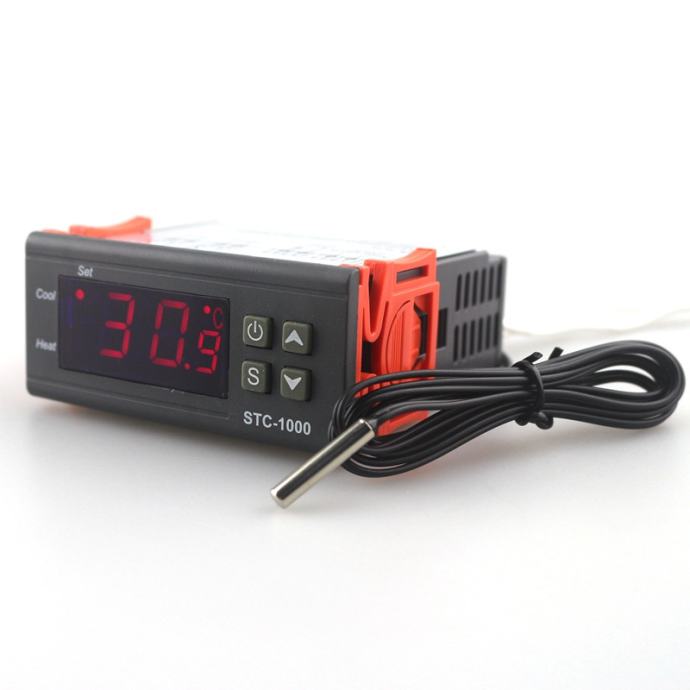

Senzor uključen u cijenu. Odličan uređaj za modifikaciju ručnih i analognih klima i webasto grijanja u digitalne, jednostavan za rukovanje i montažu.

šaljem dostavom po želji o trošku kupca ili osobno preuzimanje
ako se šalje običnom poštom uz avansno plaćanje na račun poštarina je 10kn
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 30kn

All-purpose Temperature Controller STC-1000 24V
Detailed Product Description

Measure range:-50~+99oC
Mounting size:71*29mm
Auto switch between refrigerating and heating
Retrun difference value

All-purpose Temperature Controller STC-1000:
Features:

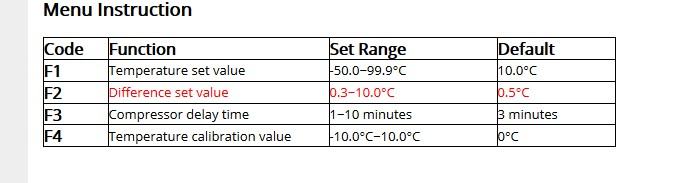

Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.

Specification and Size:

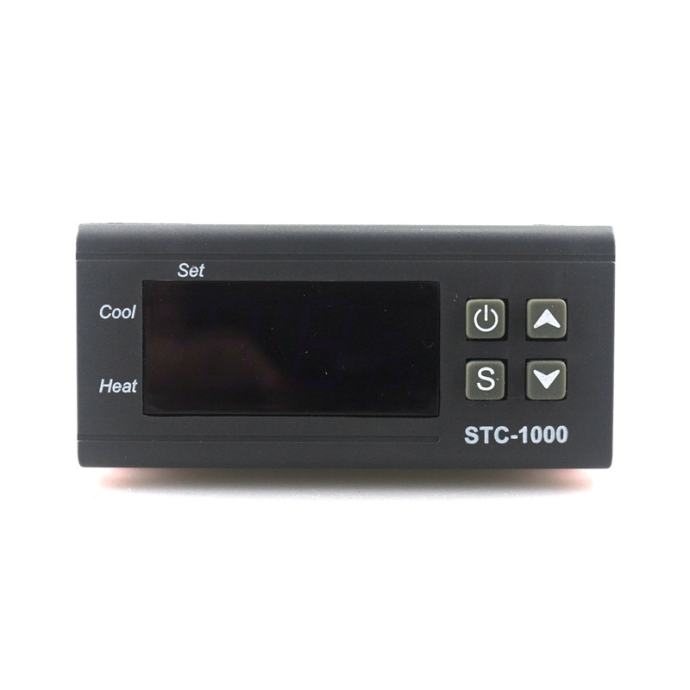

1.Front panel size75(L)×34.5(W)mm;
2.Mounting size:71(L)×29(W)mm;

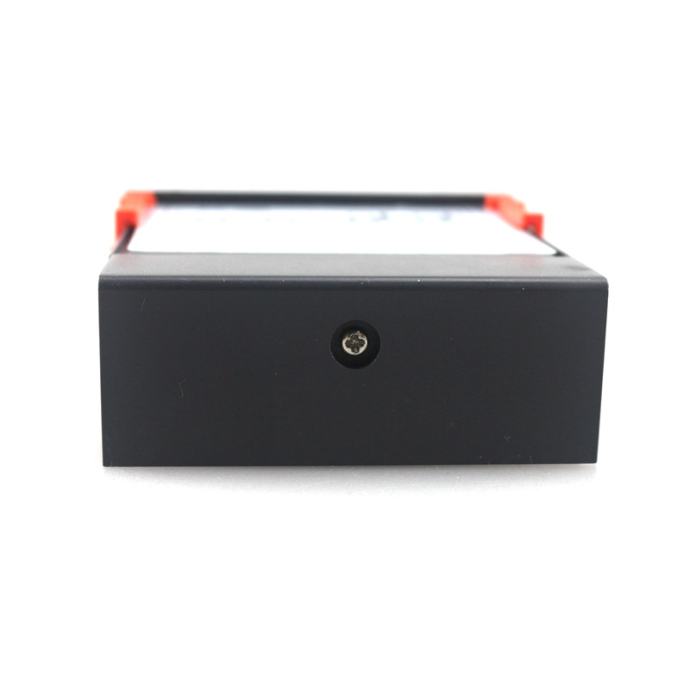

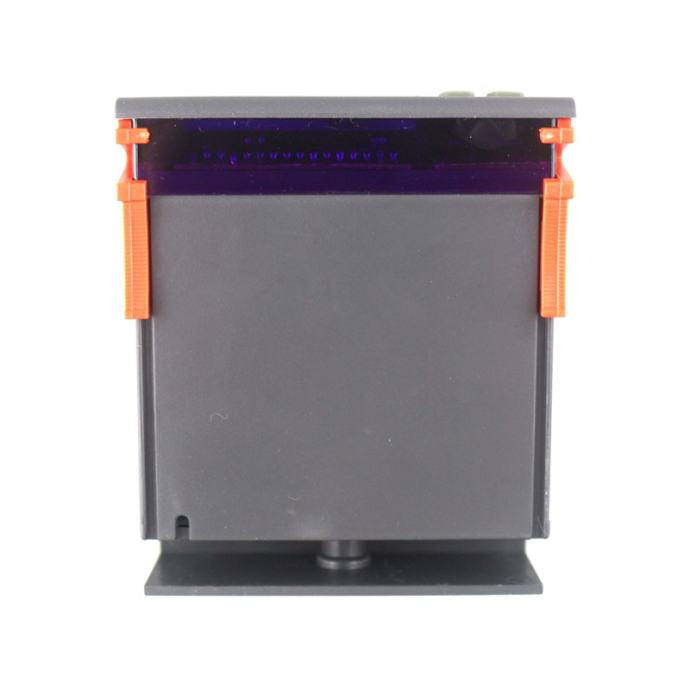

3.Product size75(L)×34.5(W)×85(D)mm;
4.sensor length2minclude the probe.

Technical Parameters:
1. Temperature measuring range: -50~99oC;
2. Resolution: 0.1oC;
3. Accuracy: ±1oC (-50~70oC);
4. Sensor error delay: 1 minute
5. Power supply: 24DC±10%,
6. Power consumption: ≤3W;
7. Sensor: NTC sensor (1PC);

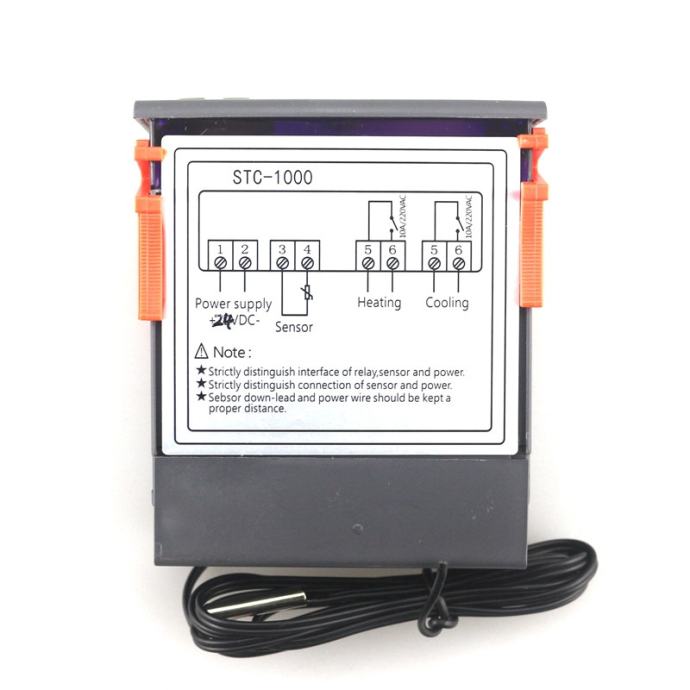

8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60oC;
10.Storage temperature: -30~75oC;
11.Relative humidity: 20%~85% (No condensate).
