Digitalni termostat REX-C900 220V PID sa sondom do 400C SSR izlaz

Digitalni termostat Rex C900 sa K-type sondom. Uvećana verzija 92x92mm popularnog Rex C100 PID termostata
Relejni izlaz + 1 alarmni relejni izlaz. Moguće podešavanje u radu za grijanje ili hlađenje, u PID ili ON/OFF modu.

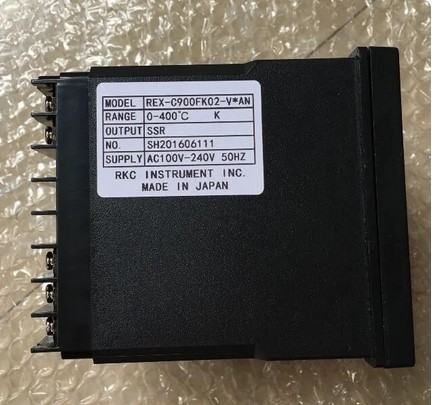

Točna šifra modela je REX- C900FK02-V#AN
Cijena termostata bez sonde 36,00 Eur
K-type M6 sonda s 1m kabel je 4 Eur

U ponudi imam i razne druge kompatibilne sonde (K-type, J-type, PT100)


šaljem dostavom po želji o trošku kupca ili osobno preuzimanje
ako se šalje običnom poštom uz avansno plaćanje na račun poštarina je 1Eur
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 4,7Eur
Opcija slanja Overseas ili GLS dostavom za 5-8Eur uz plaćanje pouzećem ili na račun

Features:
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
Resolution: 14 bit
Sampling cycle: 0.5 Sec

Dimensions:92 x 92 x 110 (mm) ±0.2mm
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED

PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
SSR output: 12VDC
Alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Heat-reset proportional cycle: 1~100 sec

Detective temperature range：0 to 400℃

Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50℃,
environment with no corrosive gas 30~85% RH


link sa uputama
http://www.rkcinst.co.jp/english/pdf_manual/imnzc17e3.pdf
