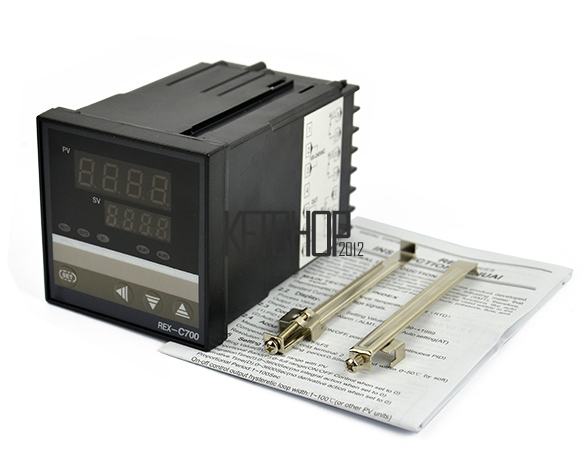

Digitalni termostat REX-C700 220V PID sa sondom do 1200C Relay

Digitalni termostat Rex C700 sa K-type sondom. Uvećana verzija 72x72mm popularnog Rex C100 PID termostata
Relejni izlaz + 1 alarmni relejni izlaz. Moguće podešavanje u radu za grijanje ili hlađenje, u PID ili ON/OFF modu.
Točna šifra modela je REX- C700FK02-M#AN
Cijena termostata bez sonde 220,00kn

Mogućnost posebne kupovine samo sonde ili samo termostata bez sonde.
K-type sonda = 30kn komad
Moguće ih je koristiti i sa PT-100 sondama koje imam u ponudi po 80kn/kom
Moguća je i kupovina K-type vodotjesne sonde po 60kn/kom


Features:
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
Resolution: 14 bit
Sampling cycle: 0.5 Sec

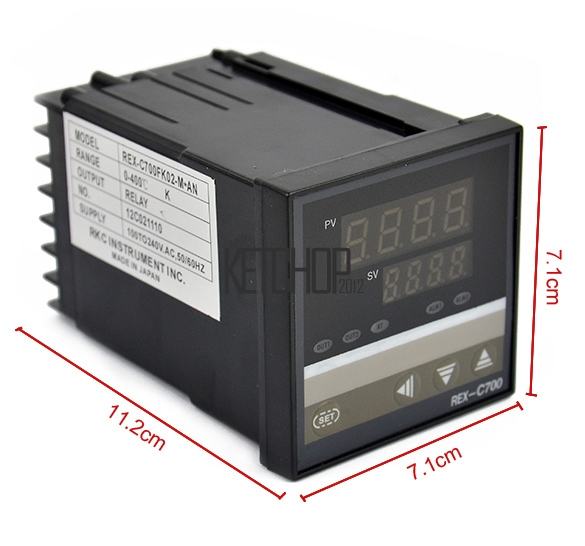

Dimensions:72 x 72 x 110 (mm) ±0.2mm

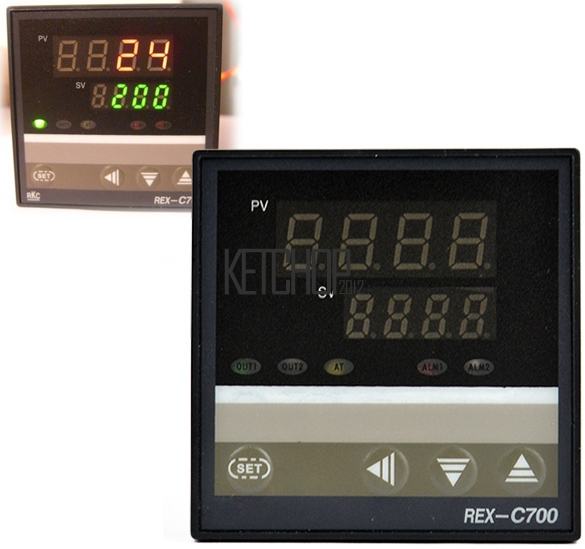

Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED

PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Heat-reset proportional cycle: 1~100 sec

Detective temperature range：0 to 400℃

Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50℃,
environment with no corrosive gas 30~85% RH


šaljem dostavom po želji o trošku kupca ili osobno preuzimanje
ako se šalje preporučenom poštom uz avansno plaćanje na račun poštarina je 15kn
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 30kn


link sa uputama

http://www.rkcinst.co.jp/english/pdf_manual/imnzc17e3.pdf
