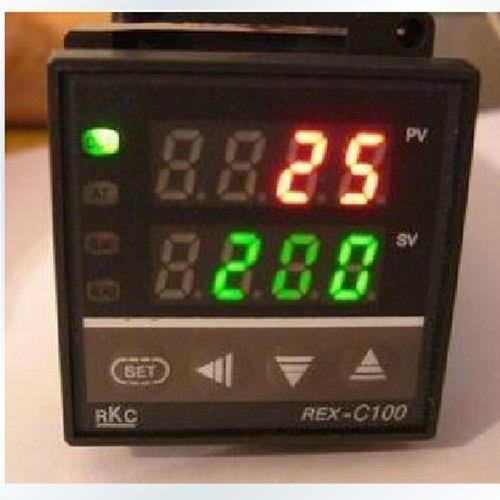

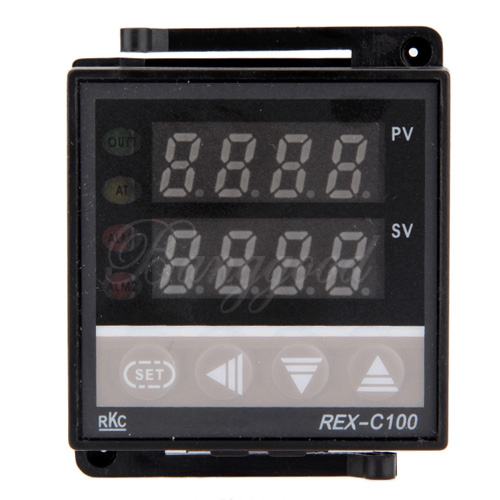

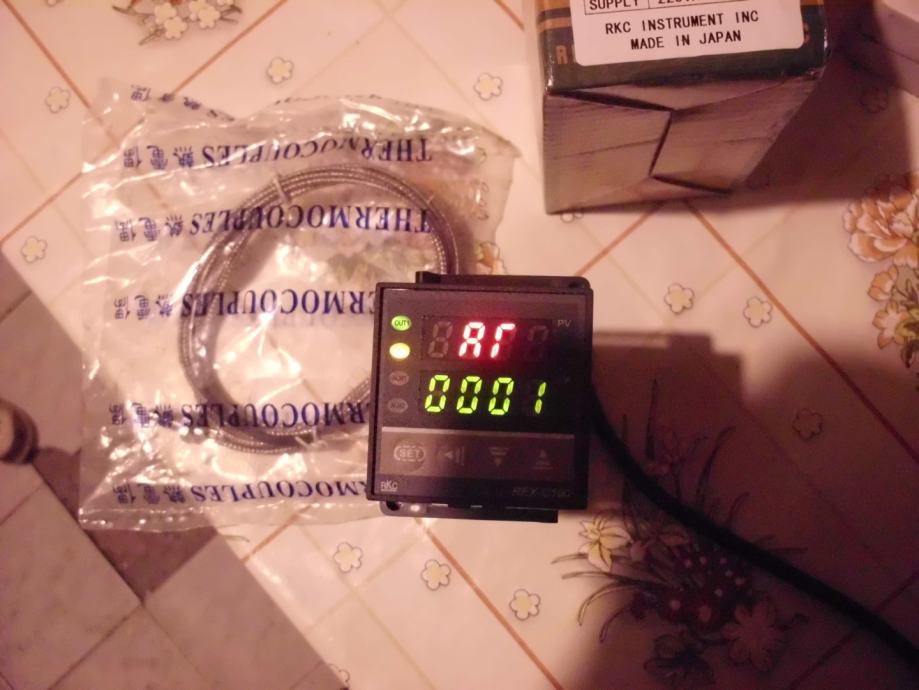

Digitalni termostat REX-C100 220V PID sa sondom do 1200 Celzijusa SSR

Model: REX-C100FK02-V*AN. Model koji ima SSR izlaz i koristi se u kombinaciji sa SSR25DA ili SSR40DA releima koje isto imam u svojoj ponudi. SSR releji se koriste za pogonjenje jačih grijača, ne koriste se za pogon induktivnih trošila poput motora.
Cijena uređaja bez sonde je 190,00kn



Mogućnost posebne kupovine samo sonde
K-type sonda = 4,00Eur komad
K-type vodotjesna M8 sonda = 8,00Eur komad
PT100 vodotjesna M8 sonda = 12,00Eur komad
PT100 1/2" odvojivi kabel sonda = 20Eur komad
itd...

Features:
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
Resolution: 14 bit
Sampling cycle: 0.5 Sec

Dimensions:48 x 48 x 110 (mm) ±0.2mm
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED

PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Alarm function output: 1 way
SSR output
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Heat-reset proportional cycle: 1~100 sec

Detective temperature range：0 to 400℃

Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50℃,
environment with no corrosive gas 30~85% RH



šaljem dostavom po želji o trošku kupca ili osobno preuzimanje
ako se šalje preporučenom poštom uz avansno plaćanje na račun poštarina je oko 2,5Eur
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 4,7Eur
Slanje Overseas dostavom je 5-6Eur ovisno o naćinu plaćanja
Slanje GLS dostavom je 6-8Eur ovisno o naćinu plaćanja

link sa uputama

http://www.rkcinst.co.jp/english/pdf_manual/imnzc17e3.pdf
