Daljinsko upravljanje garažnim vratima kapijom rasvjetom 4 kanala 12V

Wireless daljinsko upravljanje za garažna vrata, otvaranje i zatvaranje kapija, daljinsko paljenje rasvjete itd.

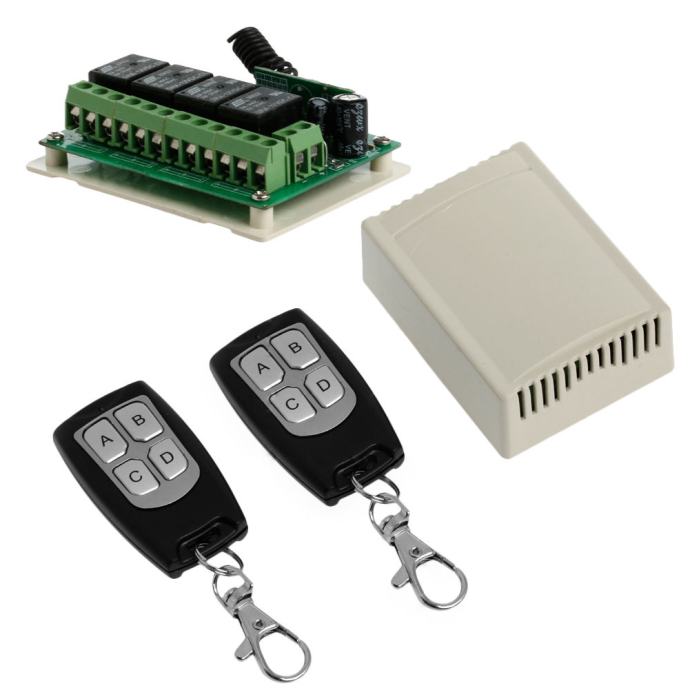

U setu se nalazi 4 kanalni prijemnik sa 4 relejna izlaza i 2 daljinska upravljača.

Set sa 12v prijamnikom košta 30,00 eur
Set sa 220V prijamnikom košta 40,00 eur

Dodatni daljinski upravljači su 60kn/kom (prijamnik podržava do cca 12+ daljinskih upravljača)

Šaljem dostavom po želji o trošku kupca ili osobno preuzimanje
Ako se šalje običnom poštom uz avansno plaćanje na račun poštarina je 1 eur
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 4,7 eur
Moguće slanje Overseas ili GLS dostavama za 5-8 eur ovisno o dostavi i naćinu plaćanja.

Features:
It is a learning code wireless remote control switch (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter
It has 4 Relays which can make the equipment turn or reverse, on/off and so on come true
The volume is small and the performance is stable and reliable, high receive sensitivity
It covers application ranging from simple domestic remote control to autonomous control, like auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.
These remote controls are designed to control a wide variety of electronic devices with a wireless signal.
Extremely easy to set up and use.
Compatible with 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone's need of choosing the wireless remote control as they like to work with it .
Specification:
Receiver:
1. Working voltage : DC12V
2. Quiescent condition : ≤ 6mA
3. Working temperature : -40℃ -- +80℃
4. Receiver sensitivity : : -105dBm
5. Working frequency : 315MHz
Here is in set. We have made it work together, so you don't have to care about what frequency are they
6. Size: 74 x 55 x 28mm /2.91 x 2.17 x 1.10"
Remote control transmitter :
1. Remote Distance: 200M
2. Operating Voltage: DC 12V
3. Frequency: 315 MHz
4. Operating Current: 13 mAh
5. Code Type: Fixed code / Learning code
6. Size: 56 x 31 x 13mm / 2.20 x 1.22 x 0.51"
Study method:
Press Learn key on the reception control panel, after the buzzer sound “Bi ”, immediately press the specified button on the remote control to learn, after receiving the control board the signal, buzzer sound “Bi” , indicates that success in learning
Function switching:
Output working way:
1. Self-lock ---connect the JP1 with the cutting out cap
2. Jog---the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
3. Inter-lock---- Connect the Jp2 with the Cutting out cap,
Jog---- press one button is ON, loosen your finger on the same button is OFF (need one channel switch and one buttons remote control)
Self -lock----- press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control).
Inter-lock-------press one button is ON, press another button is OFF (need one channel switch and 2 buttons remote control)
Clear method：
Press receiver module learn button for about 10 seconds to the buzzer sound “Bi”, it represents the stored information has been successfully cleared
Quantity: 1 Set
