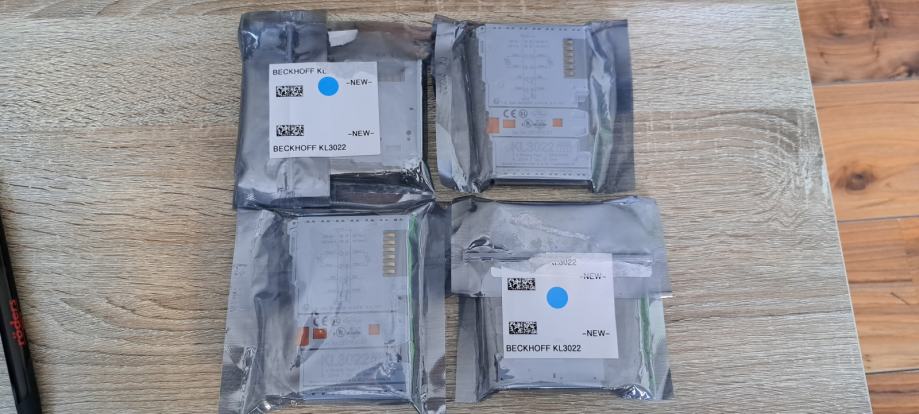

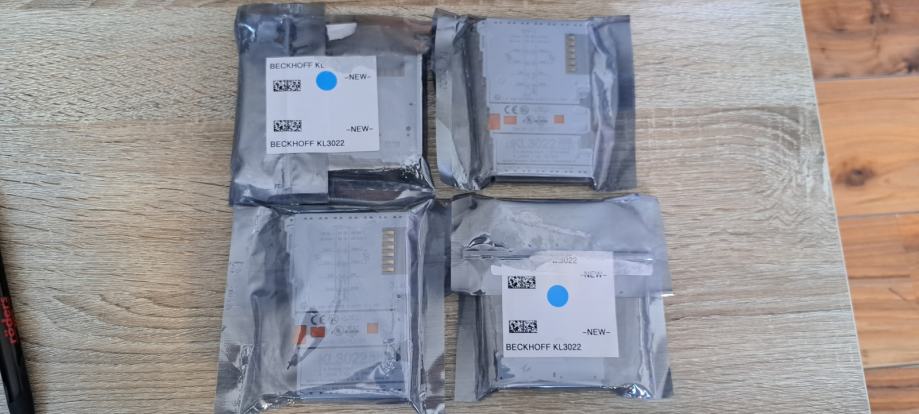

BECKHOFF KL3022/ više komada
- Cijena
- 50 €
Šifra oglasa: 39089559
Osnovne informacije
- Lokacija
- Zagrebačka, Dugo Selo - Okolica, Andrilovec
- Stanje
- novo
Opis oglasa
Zbog zatvaranja prodajnog mjesta prodaje se KL3022. NOVOOOOO!!!!!
The KL3022 analog input terminal handles signals in the range from 4 to 20 mA. The current is digitized to a resolution of 12 bits and is transmitted, in an electrically isolated form, to the higher-level automation device. The input channels of the Bus Terminal have differential inputs and possess a common, internal ground potential.
Number of inputs 2
Power supply via the K-bus
Signal current 4…20 mA
Technology differential input
Internal resistance 80 Ω + diode voltage 0.7 V
Common-mode voltage UCM max. 35 V
Resolution 12 bit
Conversion time ~ 2 ms
Measuring error < ±0.3 % (relative to full scale value)
Surge voltage resistance 35 V DC
Electrical isolation 500 V (K-bus/signal voltage)
Current consumption power contacts – (no power contacts)
Current consumption K-bus typ. 60 mA
Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional)
Weight approx. 70 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable.
Preferiramo osobno preuzimanje u ZG županiji,ili šaljemo pouzećem uz vašu poštarinu.
The KL3022 analog input terminal handles signals in the range from 4 to 20 mA. The current is digitized to a resolution of 12 bits and is transmitted, in an electrically isolated form, to the higher-level automation device. The input channels of the Bus Terminal have differential inputs and possess a common, internal ground potential.
Number of inputs 2
Power supply via the K-bus
Signal current 4…20 mA
Technology differential input
Internal resistance 80 Ω + diode voltage 0.7 V
Common-mode voltage UCM max. 35 V
Resolution 12 bit
Conversion time ~ 2 ms
Measuring error < ±0.3 % (relative to full scale value)
Surge voltage resistance 35 V DC
Electrical isolation 500 V (K-bus/signal voltage)
Current consumption power contacts – (no power contacts)
Current consumption K-bus typ. 60 mA
Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional)
Weight approx. 70 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable.
Preferiramo osobno preuzimanje u ZG županiji,ili šaljemo pouzećem uz vašu poštarinu.
