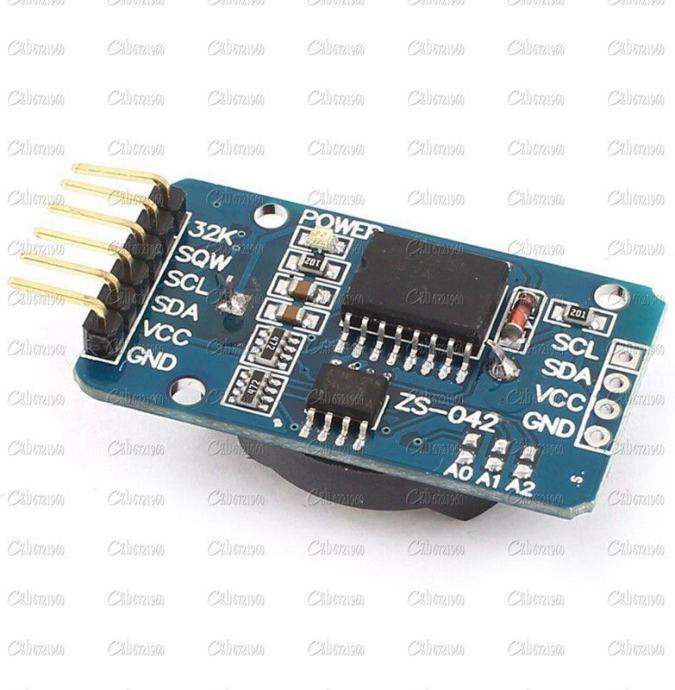

Arduino DS3231 RTC Timer sa senzorom tempetarure

Cijena
3,98 €
Šifra oglasa: 20247619

Osnovne informacije

Lokacija
Varaždinska, Ljubešćica, Ljubešćica
Stanje
novo

Opis oglasa

1. Size: 38mm (length) * 22mm (W) * 14mm (height)
2. Weight: 8g
3. Operating voltage :3.3 - 5 .5 V
4. Clock chip: high-precision clock chip DS3231
5. Clock Accuracy :0-40 ℃ range, the accuracy 2ppm, the error was about 1 minute
6. Calendar alarm clock with two
7. Programmable square-wave output
8. Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
9. Chip temperature sensor comes with an accuracy of ± 3 ℃
10. Memory chips: AT24C32 (storage capacity 32K)
11. IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
12. Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57
13. With rechargeable battery LIR2032, to ensure the system after power failure, the clock move any natural normal

Dolazi bez baterije.

Slanje nakon uplate na tekući račun,poštarina 5kn!
